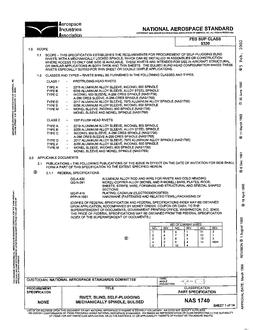

AIA NAS1740

Rivet, Blind, Self-Plugging Mechanically Spindle, Bulbed

Aerospace Industries Association , 02/05/2002

Publisher: AIA

File Format: PDF

$33.00$66.00

Description

Standard By:Aerospace Industries Association , 02/05/2002

Published:02/05/2002

Pages:14

File Size:1 file , 960 KB

Language:English

THIS SPECIFICATION ESTABLISHES THE REQUIREMENTS FOR PROCUREMENT OF
SELF-PLUGGING BLIND RIVETS, WITH A MECHANICALLY LOCKED SPINDLE, WHICH
CAN BE INSTALLED IN ASSEMBLIES OR CONSTRUCTION WHERE ACCESS TO ONLY ONE
SIDE IS AVAILABLE.  THESE RIVETS ARE INTENDED FOR USE IN AIRCRAFT
STRUCTURAL OR SIMILAR APPLICATIONS IN BOTH THICK AND THIN SHEETS.  THE
BULBED BLIND HEAD CONFIGURATION MAKES THESE RIVETS ESPECIALLY SUITED FOR
THIN SHEET OR DOUBLE DIMPLE APPLICATIONS.

CLASSES AND TYPES - RIVETS SHALL BE FURNISHED IN THE FOLLOWING CLASSES
AND TYPES.

CLASS 1 - PROTRUDING HEAD RIVETS

     TYPE A - 2219 ALUMINUM ALLOY SLEEVE, INCONEL 600 SPINDLE
     TYPE B - 5056 ALUMINUM ALLOY SLEEVE, ALLOY STEEL SPINDLE
     TYPE C - INCONEL 600 SLEEVE, A-286 CRES SPINDLE (NAS1738)
              A-268 CRES SLEEVE, A-286 CRES SPINDLE (NAS1768)
     TYPE D - 2017 ALUMINUM ALLOY SLEEVE, 7075 ALUMINUM ALLOY SPINDLE
              (NAS1768)
     TYPE E - 5056 ALUMINUM ALLOY SLEEVE, INCONEL 600 SPINDLE
     TYPE M - MONEL SLEEVE, INCONEL 600 SPINDLE (NAS1738) MONEL SLEEVE
              AND SPINDLE (NAS1768)

CLASS 2 - 100 DEGREE FLUSH HEAD RIVETS

     TYPE A - 2219 ALUMINUM ALLOY SLEEVE, INCONEL 600 SPINDLE
     TYPE B - 5056 ALUMINUM ALLOY SLEEVE, ALLOY STEEL SPINDLE
     TYPE C - INCONEL 600 SLEEVE, A-286 CRES SPINDLE (NAS1739)
              A-286 CRES SLEEVE A-286 CRES SPINDLE (NAS1769)
     TYPE D - 2017 ALUMINUM ALLOY SLEEVE, 7075 ALUMINUM ALLOY SPINDLE
              (NAS1769)
     TYPE E - 5056 ALUMINUM ALLOY SLEEVE, INCONEL 600 SPINDLE
     TYPE M - MONEL SLEEVE, INCONEL 600 SPINDLE (NAS1739)
              MONEL SLEEVE AND SPINDLE (NAS1769)
