ASAE/ASABE EP484.3 (R2022)

Diaphragm Design of Metal-Clad, Wood-Frame Rectangular Buildings

The American Society of Agricultural and Biological Engineers , 11/30/2017

Publisher: ASABE

File Format: PDF

$39.00$78.00

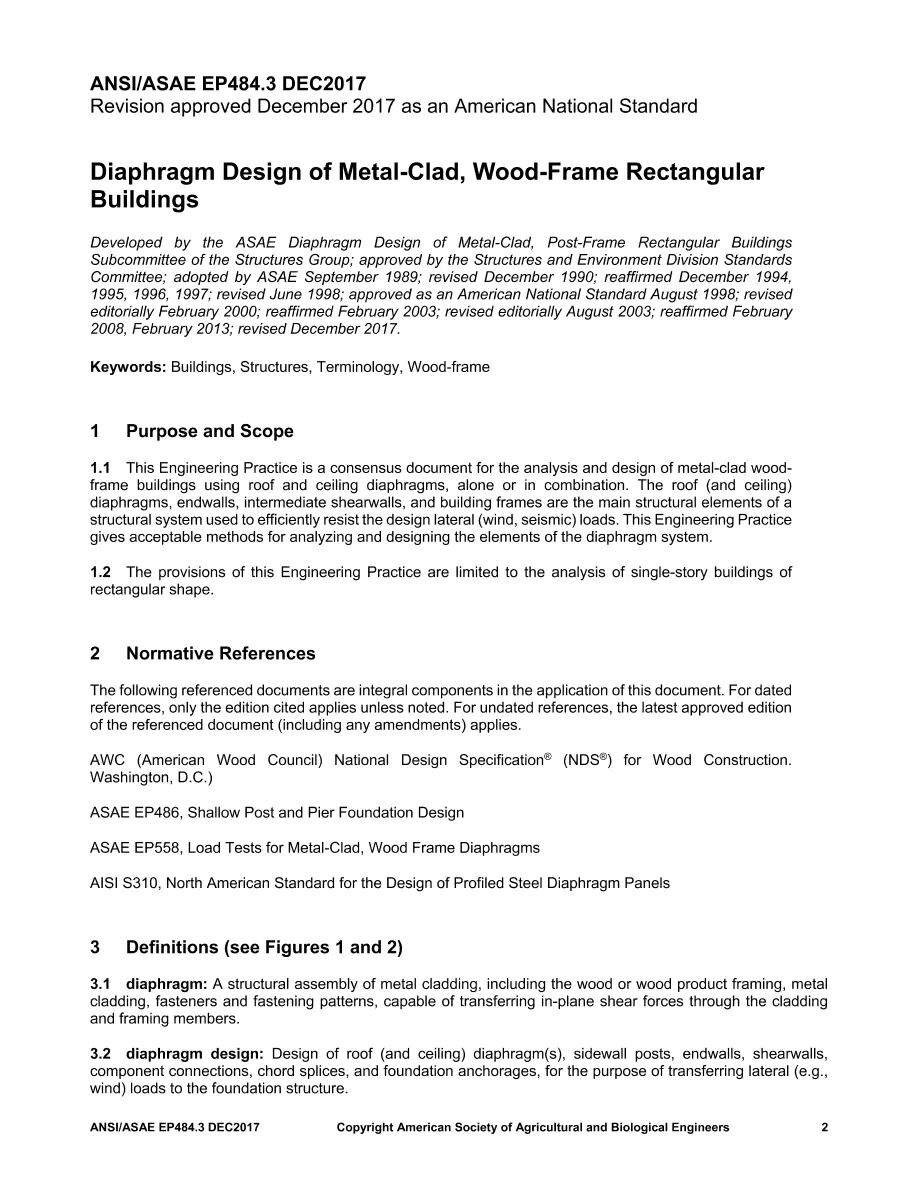

This Engineering Practice is a consensus document for the analysis and design of metal-clad woodframe buildings using roof and ceiling diaphragms, alone or in combination. The roof (and ceiling) diaphragms, endwalls, intermediate shearwalls, and building frames are the main structural elements of a structural system used to efficiently resist the design lateral (wind, seismic) loads. This Engineering Practice gives acceptable methods for analyzing and designing the elements of the diaphragm system.

The provisions of this Engineering Practice are limited to the analysis of single-story buildings of rectangular shape.

ASAE/ASABE EP484.3 (R2022) History
