ASTM International , 09/01/2017
Publisher: ASTM
File Format: PDF
$23.00$46.00

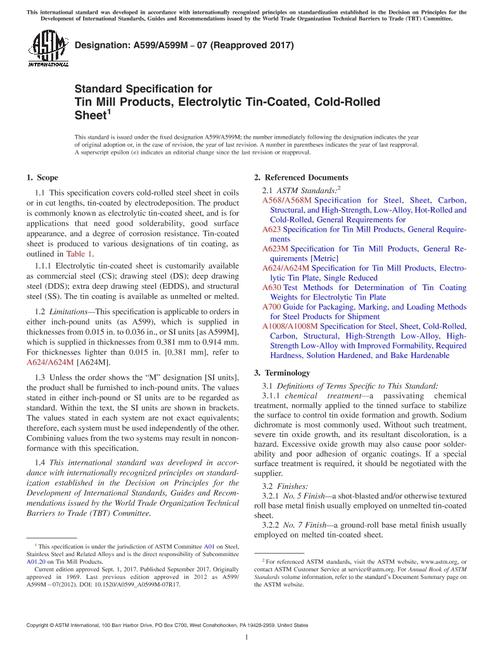

1.1This specification covers cold-rolled steel sheet in coils or in cut lengths, tin-coated by electrodeposition. The product is commonly known as electrolytic tin-coated sheet, and is for applications that need good solderability, good surface appearance, and a degree of corrosion resistance. Tin-coated sheet is produced to various designations of tin coating, as outlined in Table 1.
Note 1:Listed below are the commonly produced coating weights [mass] upon agreement between the producer and the purchaser. Other combinations of coatings may be specified and the appropriate minimum average test valuesA apply.
Designation No.
Nominal Tin Coating Weight [Mass] (Each Surface) lb/base box (g/m²)B
Minimum Average Coating Weight [Mass] (Each Surface Test Value) lb/base box (g/m²)B, C
5 (0.6/0.6)
0.025/0.025 (0.6/0.6)
0.02/0.02 (0.5/0.5)
10 (1.1/1.1)
0.05/0.05 (1.1/1.1)
0.04/0.04 (0.9/0.9)
15 (1.7/1.7)
0.075/0.075 (1.7/1.7)
0.06/0.06 (1.4/1.4)
20 (2.2/2.2)
0.10/0.10 (2.2/2.2)
0.08/0.08 (1.8/1.8)
25 (2.8/2.8)
0.125/0.125 (2.8/2.8)
0.11/0.11 (2.5/2.5)
50 (5.6/5.6)
0.25/0.25 (5.6/5.6)
0.23/0.23 (5.2/5.2)
75 (8.4/8.4)
0.375/0.375 (8.4/8.4)
0.35/0.35 (7.8/7.8)
100 (11.2/11.2)
0.50/0.50 (11.2/11.2)
0.45/0.45 (10.1/10.1)
1.1.1Electrolytic tin-coated sheet is customarily available as commercial steel (CS); drawing steel (DS); deep drawing steel (DDS); extra deep drawing steel (EDDS), and structural steel (SS). The tin coating is available as unmelted or melted.
