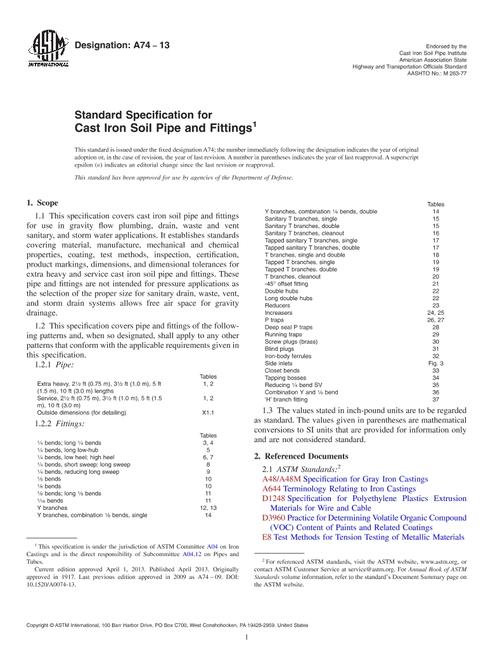

1.1This specification covers cast iron soil pipe and fittings for use in gravity flow plumbing, drain, waste and vent sanitary, and storm water applications. It establishes standards covering material, manufacture, mechanical and chemical properties, coating, test methods, inspection, certification, product markings, dimensions, and dimensional tolerances for extra heavy and service cast iron soil pipe and fittings. These pipe and fittings are not intended for pressure applications as the selection of the proper size for sanitary drain, waste, vent, and storm drain systems allows free air space for gravity drainage.
1.2This specification covers pipe and fittings of the following patterns and, when so designated, shall apply to any other patterns that conform with the applicable requirements given in this specification.
1.2.1Pipe:
Tables
Extra heavy, 21/2ft (0.75 m), 31/2ft (1.0 m), 5 ft (1.5 m), 10 ft (3.0 m) lengths
1, 2
Service, 21/2ft (0.75 m), 31/2ft (1.0 m), 5 ft (1.5 m), 10 ft (3.0 m)
Outside dimensions (for detailing)
X1.1
1.2.2Fittings:
1/4bends; long 1/4bends
3, 4
1/4bends, long low-hub
5
1/4bends, low heel; high heel
6, 7
1/4bends, short sweep; long sweep
8
1/4bends, reducing long sweep
9
1/5bends
10
1/6bends
1/8bends; long 1/8bends
11
1/16bends
Y branches
12, 13
Y branches, combination 1/8bends, single
14
Y branches, combination 1/8bends, double
Sanitary T branches, single
15
Sanitary T branches, double
Sanitary T branches, cleanout
16
Tapped sanitary T branches, single
17
Tapped sanitary T branches, double
T branches, single and double
18
Tapped T branches, single
19
Tapped T branches, double
T branches, cleanout
20
-45° offset fitting
21
Double hubs
22
Long double hubs
Reducers
23
Increasers
24, 25
P traps
26, 27
Deep seal P traps
28
Running traps
29
Screw plugs (brass)
30
Blind plugs
31
Iron-body ferrules
32
Side inlets
Fig. 3
Closet bends
33
Tapping bosses
34
Reducing 1/4bend SV
35
Combination Y and 1/8bend
36
‘H' branch fitting
37
1.3The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
