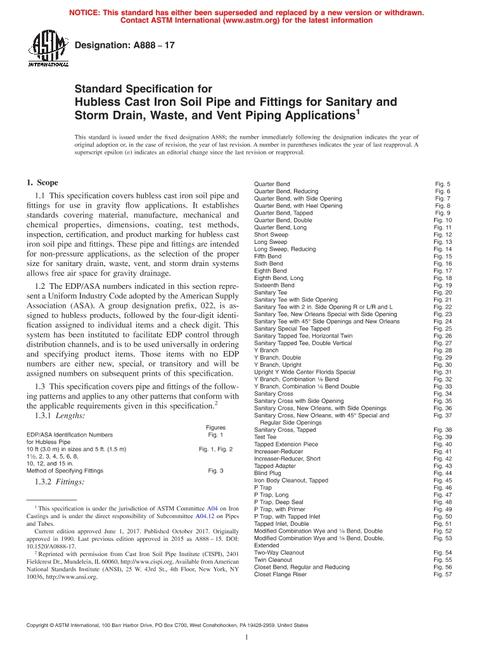

1.1This specification covers hubless cast iron soil pipe and fittings for use in gravity flow applications. It establishes standards covering material, manufacture, mechanical and chemical properties, dimensions, coating, test methods, inspection, certification, and product marking for hubless cast iron soil pipe and fittings. These pipe and fittings are intended for non-pressure applications, as the selection of the proper size for sanitary drain, waste, vent, and storm drain systems allows free air space for gravity drainage.
1.2The EDP/ASA numbers indicated in this section represent a Uniform Industry Code adopted by the American Supply Association (ASA). A group designation prefix, 022, is assigned to hubless products, followed by the four-digit identification assigned to individual items and a check digit. This system has been instituted to facilitate EDP control through distribution channels, and is to be used universally in ordering and specifying product items. Those items with no EDP numbers are either new, special, or transitory and will be assigned numbers on subsequent prints of this specification.
1.3This specification covers pipe and fittings of the following patterns and applies to any other patterns that conform with the applicable requirements given in this specification.2
1.3.1Lengths:
Figures
EDP/ASA Identification Numbers for Hubless Pipe
Fig. 1
10 ft (3.0 m) in sizes and 5 ft. (1.5 m) 11/2, 2, 3, 4, 5, 6, 8, 10, 12, and 15 in.
Fig. 1, Fig. 2
Method of Specifying Fittings
Fig. 3
1.3.2Fittings:
Quarter Bend
Fig. 5
Quarter Bend, Reducing
Fig. 6
Quarter Bend, with Side Opening
Fig. 7
Quarter Bend, with Heel Opening
Fig. 8
Quarter Bend, Tapped
Fig. 9
Quarter Bend, Double
Fig. 10
Quarter Bend, Long
Fig. 11
Short Sweep
Fig. 12
Long Sweep
Fig. 13
Long Sweep, Reducing
Fig. 14
Fifth Bend
Fig. 15
Sixth Bend
Fig. 16
Eighth Bend
Fig. 17
Eighth Bend, Long
Fig. 18
Sixteenth Bend
Fig. 19
Sanitary Tee
Fig. 20
Sanitary Tee with Side Opening
Fig. 21
Sanitary Tee with 2 in. Side Opening R or L/R and L
Fig. 22
Sanitary Tee, New Orleans Special with Side Opening
Fig. 23
Sanitary Tee with 45° Side Openings and New Orleans
Fig. 24
Sanitary Special Tee Tapped
Fig. 25
Sanitary Tapped Tee, Horizontal Twin
Fig. 26
Sanitary Tapped Tee, Double Vertical
Fig. 27
Y Branch
Fig. 28
Y Branch, Double
Fig. 29
Y Branch, Upright
Fig. 30
Upright Y Wide Center Florida Special
Fig. 31
Y Branch, Combination 1/8Bend
Fig. 32
Y Branch, Combination 1/8Bend Double
Fig. 33
Sanitary Cross
Fig. 34
Sanitary Cross with Side Opening
Fig. 35
Sanitary Cross, New Orleans, with Side Openings
Fig. 36
Sanitary Cross, New Orleans, with 45° Special and Regular Side Openings
Fig. 37
Sanitary Cross, Tapped
Fig. 38
Test Tee
Fig. 39
Tapped Extension Piece
Fig. 40
Increaser-Reducer
Fig. 41
Increaser-Reducer, Short
Fig. 42
Tapped Adapter
Fig. 43
Blind Plug
Fig. 44
Iron Body Cleanout, Tapped
Fig. 45
P Trap
Fig. 46
P Trap, Long
Fig. 47
P Trap, Deep Seal
Fig. 48
P Trap, with Primer
Fig. 49
P Trap, with Tapped Inlet
Fig. 50
Tapped Inlet, Double
Fig. 51
Modified Combination Wye and 1/8 Bend, Double
Fig. 52
Modified Combination Wye and 1/8 Bend, Double, Extended
Fig. 53
Two-Way Cleanout
Fig. 54
Twin Cleanout
Fig. 55
Closet Bend, Regular and Reducing
Fig. 56
Closet Flange Riser
Fig. 57
Tapping Bosses
Fig. 58
Double Sweep Sanitary Tee (Extended)
Fig. 59
Running Trap with Double Vents
Fig. 60
P Trap with Tapped or Hubless Side Inlet
Fig. 61
Vented Tub Wye Extended, Double
Fig. 62
Vented Tub Wye Extended Offset, Left or Right
Fig. 63
Vented Tub Wye
Fig. 64
Double Two-Way Cleanout
Fig. 65
1.4The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.5The committee with jurisdiction over this standard is aware of another comparable standard published by the Cast Iron Soil Pipe Institute, CISPI 301.
Note 1:The text of this standard references notes and footnotes that provide explanatory material. These notes and footnotes (excluding those in tables and figures) shall not be considered as requirements of the standard.
1.6This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
