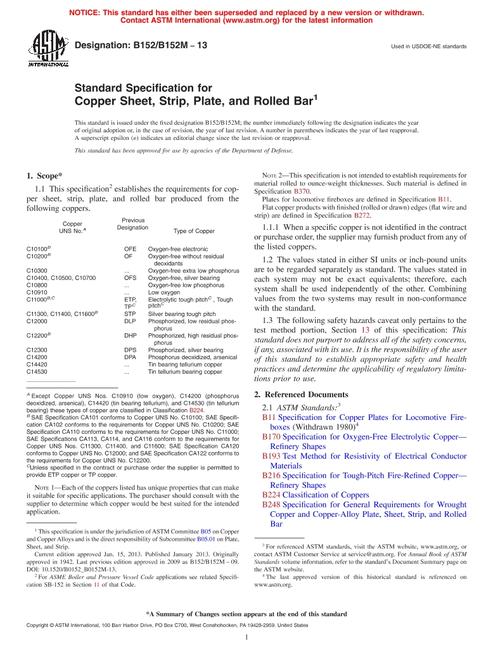

ASTM B152/B152M-13

Standard Specification for Copper Sheet, Strip, Plate, and Rolled Bar

ASTM International , 01/15/2013

Publisher: ASTM

File Format: PDF

$30.00$60.00

Description

Standard By:ASTM International , 01/15/2013

Published:01/15/2013

Pages:6

File Size:1 file , 93 KB

Language:English

Note:This product is unavailable in Russia, Ukraine, Belarus

1.1This specification² establishes the requirements for copper sheet, strip, plate, and rolled bar produced from the following coppers.

Copper UNS No.^A	Previous Designation	Type of Copper

C10100^B	OFE	Oxygen-free electronic
C10200^B	OF	Oxygen-free without residual deoxidants
C10300	...	Oxygen-free extra low phosphorus
C10400, C10500, C10700	OFS	Oxygen-free, silver bearing
C10800	...	Oxygen-free low phosphorus
C10910	...	Low oxygen
C11000^B^,^C	ETP, TP^C	Electrolytic tough pitch^C, Tough pitch^C
C11300, C11400, C11600^B	STP	Silver bearing tough pitch
C12000	DLP	Phosphorized, low residual phos- phorus
C12200^B	DHP	Phosphorized, high residual phos- phorus
C12300	DPS	Phosphorized, silver bearing
C14200	DPA	Phosphorus deoxidized, arsenical
C14420	...	Tin bearing tellurium copper
C14530	...	Tin tellurium bearing copper
_______________

^A Except Copper UNS Nos. C10910 (low oxygen), C14200 (phosphorus deoxidized, arsenical), C14420 (tin bearing tellurium), and C14530 (tin tellurium bearing) these types of copper are classified in Classification B224.

^B SAE Specification CA101 conforms to Copper UNS No. C10100; SAE Specification CA102 conforms to the requirements for Copper UNS No. C10200; SAE Specification CA110 conforms to the requirements for Copper UNS No. C11000; SAE Specifications CA113, CA114, and CA116 conform to the requirements for Copper UNS Nos. C11300, C11400, and C11600; SAE Specification CA120 conforms to Copper UNS No. C12000; and SAE Specification CA122 conforms to the requirements for Copper UNS No. C12200.

^CUnless specified in the contract or purchase order the supplier is permitted to provide ETP copper or TP copper.

Note 1-Each of the coppers listed has unique properties that can make it suitable for specific applications. The purchaser should consult with the supplier to determine which copper would be best suited for the intended application.

Note 2-This specification is not intended to establish requirements for material rolled to ounce-weight thicknesses. Such material is defined in Specification B370. Plates for locomotive fireboxes are defined in Specification B11. Flat copper products with finished (rolled or drawn) edges (flat wire and strip) are defined in Specification B272.

1.1.1When a specific copper is not identified in the contract or purchase order, the supplier may furnish product from any of the listed coppers.

1.2The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.

1.3The following safety hazards caveat only pertains to the test method portion, Section 13 of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
