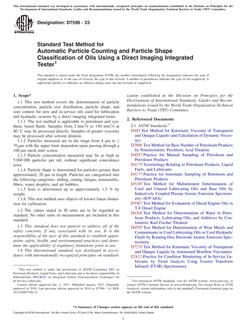

ASTM D7596-23

Standard Test Method for Automatic Particle Counting and Particle Shape Classification of Oils Using a Direct Imaging Integrated Tester

ASTM International , 01/01/2023

Publisher: ASTM

File Format: PDF

$41.00$83.00

Description

Standard By:ASTM International , 01/01/2023

Published:01/01/2023

Pages:6

File Size:1 file , 130 KB

Language:English

Note:This product is unavailable in Russia, Ukraine, Belarus

1.1This test method covers the determination of particle concentration, particle size distribution, particle shape, and soot content for new and in-service oils used for lubrication and hydraulic systems by a direct imaging integrated tester.

1.1.1The test method is applicable to petroleum and synthetic based fluids. Samples from 2 mm²/s to 150 mm²/s at 40 °C may be processed directly. Samples of greater viscosity may be processed after solvent dilution.

1.1.2Particles measured are in the range from 4 μm to ≥ 70 μm with the upper limit dependent upon passing through a 100 μm mesh inlet screen.

1.1.3Particle concentration measured may be as high as 5 000 000 particles per mL without significant coincidence error.

1.1.4Particle shape is determined for particles greater than approximately 20 µm in length. Particles are categorized into the following categories: sliding, cutting, fatigue, nonmetallic, fibers, water droplets, and air bubbles.

1.1.5Soot is determined up to approximately 1.5 % by weight.

1.1.6This test method uses objects of known linear dimension for calibration.

1.2The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.

1.3This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.

1.4This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

ASTM D7596-23

Standard Test Method for Automatic Particle Counting and Particle Shape Classification of Oils Using a Direct Imaging Integrated Tester
