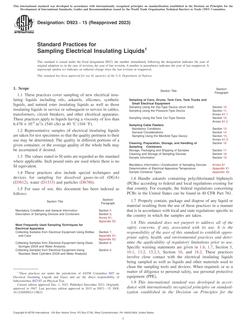

ASTM D923-15(2023)

Standard Practices for Sampling Electrical Insulating Liquids

ASTM International , 12/01/2023

Publisher: ASTM

File Format: PDF

$34.00$69.00

Description

Standard By:ASTM International , 12/01/2023

Published:12/01/2023

Pages:14

File Size:1 file , 650 KB

Language:English

Note:This product is unavailable in Russia, Ukraine, Belarus

1.1These practices cover sampling of new electrical insulating liquids including oils, askarels, silicones, synthetic liquids, and natural ester insulating liquids as well as those insulating liquids in service or subsequent to service in cables, transformers, circuit breakers, and other electrical apparatus. These practices apply to liquids having a viscosity of less than 6.476 × 10^-4 m²/s (540 cSt) at 40 °C (104 °F).

1.2Representative samples of electrical insulating liquids are taken for test specimens so that the quality pertinent to their use may be determined. The quality in different portions of a given container, or the average quality of the whole bulk may be ascertained if desired.

1.3The values stated in SI units are regarded as the standard where applicable. Inch pound units are used where there is no SI equivalent.

1.4These practices also include special techniques and devices for sampling for dissolved gases-in-oil (DGA) (D3612), water (D1533) and particles (D6786).

1.5For ease of use, this document has been indexed as follows:

Section Title Section/Paragraph Mandatory Conditions and General Information Section 5 Description of Sampling Devices and Containers Section 6, Annex A1, Appendix X2 Most Frequently Used Sampling Techniques for Electrical Apparatus Collecting Samples from Electrical Equipment Using Bottles and Cans Section 7, Appendix X1, Appendix X2 Collecting Samples from Electrical Equipment Using Glass Syringes (DGA and Water Analysis) Section 8 Collecting Samples from Electrical Equipment Using Stainless Steel Cylinders (DGA and Water Analysis) Section 9 Sampling of Cans, Drums, Tank Cars, Tank Trucks and Small Electrical Equipment Sampling Using the Dip-Type Device (drum thief) Section 10 Sampling Using the Pressure-Type Device Section 11, Annex A1.1 Sampling Using the Tank Car-Type Device Section 12, Annex A1.2 Sampling Cable Feeders Mandatory Conditions Section 13 General Considerations Section 14 Sampling Using the Manifold-Type Device Section 15, Annex A1.3 Cleaning, Preparation, Storage, and Handling of Sampling Containers Section 16 Storage, Packaging and Shipping of Samples Section 17 Cleaning and Storage of Sampling Devices Section 18 Sample Information Section 19 Mandatory Information-Construction of Sampling Devices Annex A1 Determination of Electrical Apparatus Temperature Appendix X1 Sample Container Types Appendix X2

1.6Handle askarels containing polychlorinated biphenyls (PCBs) according to federal and local regulations existing for that country. For example, the federal regulations concerning PCBs in the United States can be found in 40 CFR Part 761.

1.7Properly contain, package and dispose of any liquid or material resulting from the use of these practices in a manner that is in accordance with local and state regulations specific to the country in which the samples are taken.

1.8This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific warning statements are given in 1.6, 1.7, Section 5, 10.1, 13.2, 15.2.3, Section 16, and 18.2. These practices involve close contact with the electrical insulating liquids being sampled as well as liquids and other materials used to clean the sampling tools and devices. When required, or as a matter of diligence to personal safety, use personal protective equipment (PPE).

1.9This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

ASTM D923-15(2023)

Standard Practices for Sampling Electrical Insulating Liquids
