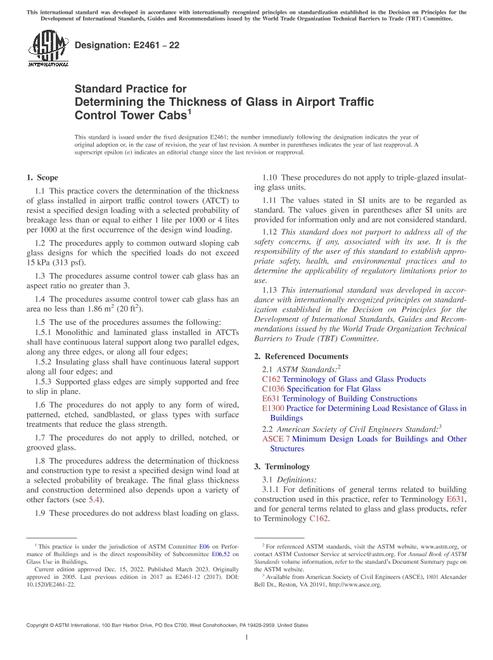

ASTM E2461-22

Standard Practice for Determining the Thickness of Glass in Airport Traffic Control Tower Cabs

ASTM International , 12/15/2022

Publisher: ASTM

File Format: PDF

$56.00$113.00

Description

Standard By:ASTM International , 12/15/2022

Published:12/15/2022

Pages:98

File Size:1 file , 9.5 MB

Language:English

Note:This product is unavailable in Russia, Ukraine, Belarus

1.1This practice covers the determination of the thickness of glass installed in airport traffic control towers (ATCT) to resist a specified design loading with a selected probability of breakage less than or equal to either 1 lite per 1000 or 4 lites per 1000 at the first occurrence of the design wind loading.

1.2The procedures apply to common outward sloping cab glass designs for which the specified loads do not exceed 15 kPa (313 psf).

1.3The procedures assume control tower cab glass has an aspect ratio no greater than 3.

1.4The procedures assume control tower cab glass has an area no less than 1.86 m² (20 ft²).

1.5The use of the procedures assumes the following:

1.5.1Monolithic and laminated glass installed in ATCTs shall have continuous lateral support along two parallel edges, along any three edges, or along all four edges;

1.5.2Insulating glass shall have continuous lateral support along all four edges; and

1.5.3Supported glass edges are simply supported and free to slip in plane.

1.6The procedures do not apply to any form of wired, patterned, etched, sandblasted, or glass types with surface treatments that reduce the glass strength.

1.7The procedures do not apply to drilled, notched, or grooved glass.

1.8The procedures address the determination of thickness and construction type to resist a specified design wind load at a selected probability of breakage. The final glass thickness and construction determined also depends upon a variety of other factors (see 5.4).

1.9These procedures do not address blast loading on glass.

1.10These procedures do not apply to triple-glazed insulating glass units.

1.11The values stated in SI units are to be regarded as standard. The values given in parentheses after SI units are provided for information only and are not considered standard.

1.12This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and to determine the applicability of regulatory limitations prior to use.

1.13This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
