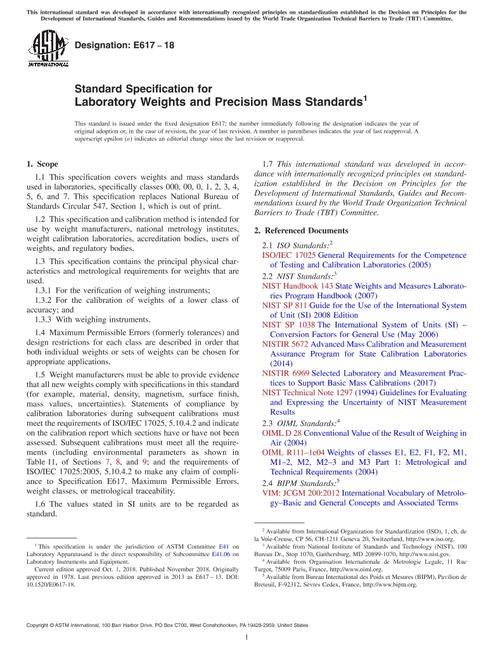

ASTM E617-18

1.1This specification covers weights and mass standards used in laboratories, specifically classes 000, 00, 0, 1, 2, 3, 4, 5, 6, and 7. This specification replaces National Bureau of Standards Circular 547, Section 1, which is out of print.

1.2This specification and calibration method is intended for use by weight manufacturers, national metrology institutes, weight calibration laboratories, accreditation bodies, users of weights, and regulatory bodies.

1.3This specification contains the principal physical characteristics and metrological requirements for weights that are used.

1.4Maximum Permissible Errors (formerly tolerances) and design restrictions for each class are described in order that both individual weights or sets of weights can be chosen for appropriate applications.

1.5Weight manufacturers must be able to provide evidence that all new weights comply with specifications in this standard (for example, material, density, magnetism, surface finish, mass values, uncertainties). Statements of compliance by calibration laboratories during subsequent calibrations must meet the requirements of ISO/IEC 17025, 5.10.4.2 and indicate on the calibration report which sections have or have not been assessed. Subsequent calibrations must meet all the requirements (including environmental parameters as shown in Table 11, of Sections 7, 8, and 9; and the requirements of ISO/IEC 17025:2005, 5.10.4.2 to make any claim of compliance to Specification E617, Maximum Permissible Errors, weight classes, or metrological traceability.

1.6The values stated in SI units are to be regarded as standard.

1.7This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
