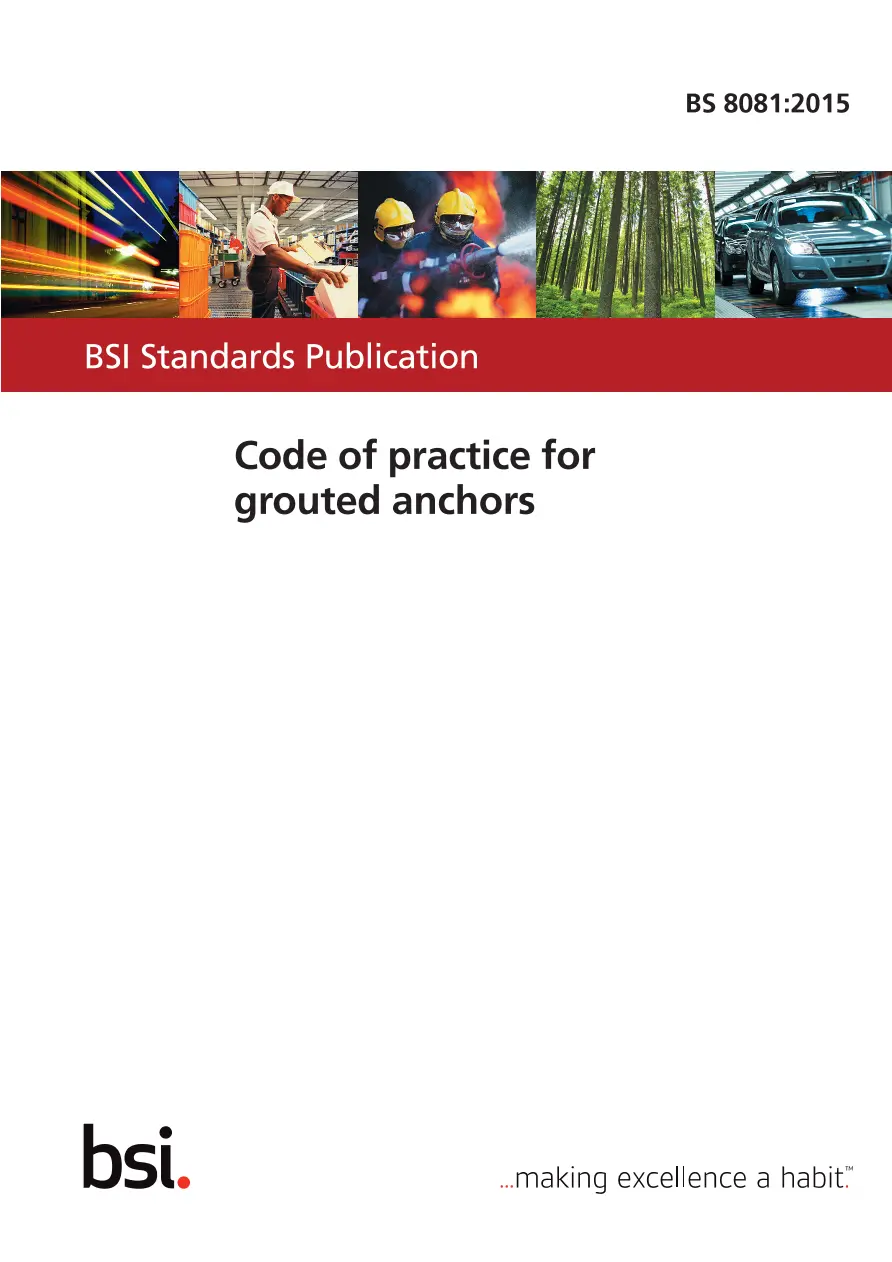

BS 8081:2015

BS 8081:2015, as a code of practice, gives recommendations forthe design, construction, stressing, testing, monitoring and maintenance ofgrouted anchors as defined in BS EN 1997-1:2004+A1:2013, BS EN 1537:2013 andBS EN ISO 22477-5.Further general recommendations for corrosion hazards and protectivemeasures, construction techniques and quality controls, stressing procedures,and the testing of grouted anchor components and complete installationsare provided. Information supporting the practical implementation of theserecommendations are provided in annexes to this code of practice.Annex A provides examples of records that are developed during theexecution and testing of grouted anchors.Annex B provides information on the design of a fixed anchor length withrespect to the bond or shear resistance at:

• the ground/grout interface;
• the grout/encapsulation interface;
• the grout/tendon interface.

Annex C provides information on the pre-grouting and post-grouting ofground where necessary.Annex D provides information on the use of appropriate Young's modulus forthe steel used in the design of the anchor tendon.Annex E provides information on the types of corrosion that affect the steelelements of an anchor and the influence on the corrosion of the tendon of theground and groundwater in which the anchor is installed.Annex F provides information on the types of corrosion protection availablefor use in the fabrication and installation of the anchor.Annex G provides recommendations on the testing of anchors at all stagesof construction.Annex H provides information on monitoring anchors in the long term,including appropriate acceptance criteria and remedial measures that can beapplied in the event of non-compliance with the acceptance criteria.Annex I draws attention to the statutory regulations affecting the safety,welfare and health of persons in the execution of anchor construction.This code of practice is for the use of clients who commission the use ofgrouted anchors, ground engineering contractors, and geotechnical and structuraldesigners.NOTE BS EN ISO 22477-5 is expected to publish in July 2017 (although this date issubject to change). Cross References:BS 3148:1980BS 6319BS EN 206BS EN 445:2007BS EN 446:2007BS EN 447BS EN 837-1:1998BS EN 934-2BS EN 1008 BS EN 1537:2013BS EN 1992-1-1:2004+A1:2014BS EN 1992-2:2005BS EN 1993-1-1:2005+A1:2015BS EN 1997-1:2004+A1:2013BS EN 1997-2:2007 BS EN 12715:2000BS EN 13391:2004BS EN ISO 1461:2009BS EN ISO 12944-1:1998BS EN ISO 14713-1:2009BS EN ISO 22477-5ETAG 013 NA+A1:2014 to BS EN 1997-1:2004+A1:2013BS 5930BS 8002BS 8500-1:2015BS 8500-2BS 10175:2011+A1:2013BS EN 1536:2010+A1:2015 BS EN 1990:2002+A1:2005BS EN 1991BS EN 1993-5:2007BS EN 12699:2015BS EN 16228-1:2014BS EN 16228-2:2014BS EN ISO 14688-1:2002+A1:2013BS EN ISO 14688-2:2004+A1:2013BS EN ISO 14689-1:2003 BS EN ISO 22282:2012BS EN ISO 22475-1:2006BS EN ISO 22476-1:2012 BS EN ISO 22476-2:2005+A1:2011BS EN ISO 22476-3:2005+A1:2011NA to BS EN 1990:2002+A1:2005NA to BS EN 1997-2CIRIA Special Publication 16:1981 CIRIA Report 95:1982Health and Safety at Work etc. Act 1974HSE HSG47:2014Control of Pollution Act 1974Factories Act 1961Construction (Design and Management) Regulations 2015Lifting Operations and Lifting Equipment Regulations1998Provision and Use of Work Equipment Regulations 1998
