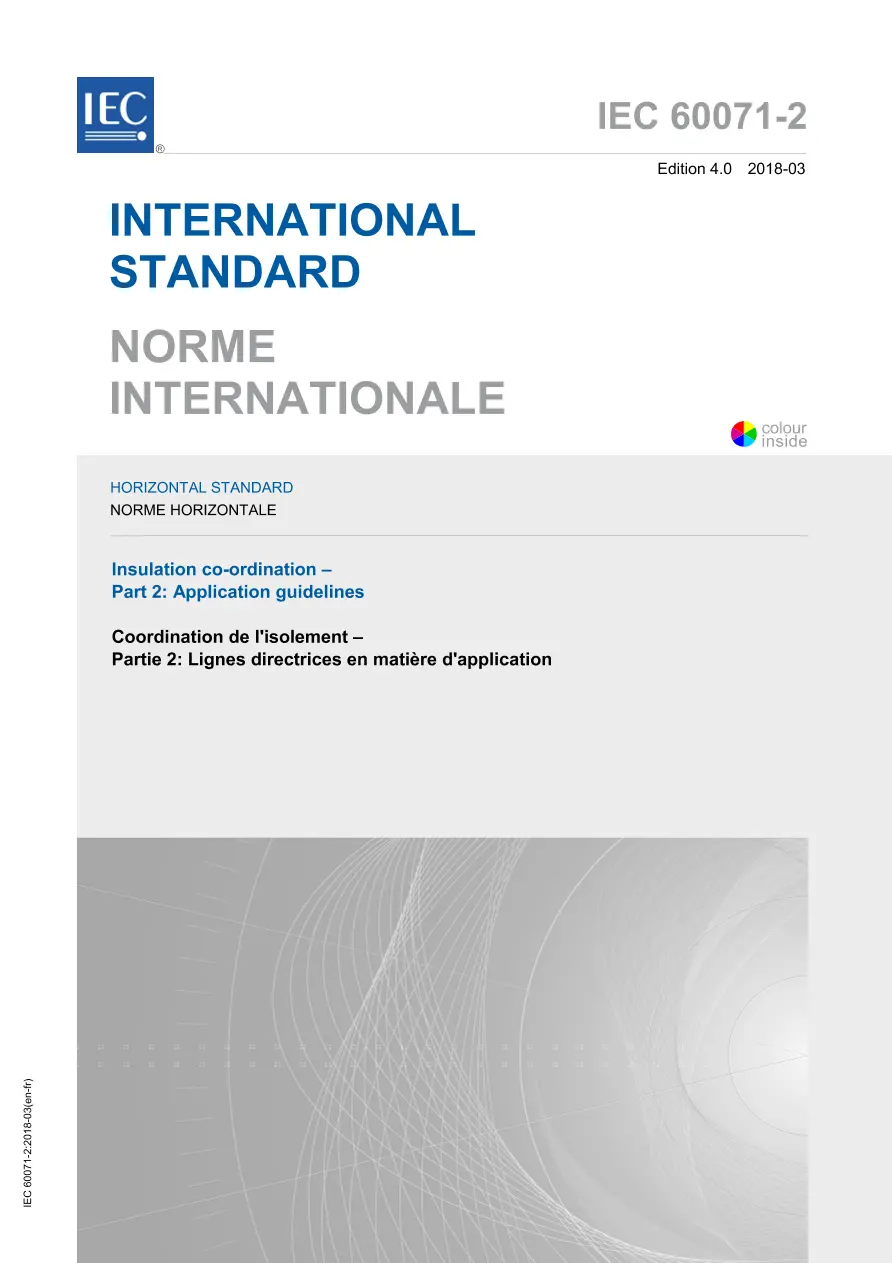

IEC 60071-2 Ed. 4.0 b:2018

Insulation co-ordination - Part 2: Application guidelines

International Electrotechnical Commission , 03/16/2018

Publisher: IEC

File Format: PDF

$215.00$430.00


IEC 60071-2:2018 constitutes application guidelines and deals with the selection of insulation levels of equipment or installations for three-phase electrical systems. It gives guidance for the determination of the rated withstand voltages for ranges I and II of IEC 60071-1 and to justify the association of these rated values with the standardized highest voltages for equipment. It covers three-phase systems with nominal voltages above 1 kV. It has the status of a horizontal standard in accordance with IEC Guide 108. This edition includes the following significant technical changes with respect to the previous edition:
a) the annex on clearance in air to assure a specified impulse withstand voltage installation is deleted because the annex in IEC 60071-1 is overlapped;
b) 4.2 and 4.3 on surge arresters are updated;
c) 4.3.5 on very-fast-front overvoltages is revised. Annex J on insulation co-ordination for very-fast-front overvoltages in UHV substations is added;
d) Annex H on atmospheric correction a?? altitude correction is added.
e) Annex I on evaluation method of non-standard lightning overvoltage shape is added.

IEC 60071-2 Ed. 4.0 b:2018 History

IEC 60071-2 Ed. 5.0 b:2023

IEC 60071-2 Ed. 5.0 b:2023

$256.00 $512.00

IEC 60071-2 Ed. 4.0 b:2018

IEC 60071-2 Ed. 4.0 b:2018

$215.00 $430.00

IEC 60071-2 Ed. 3.0 b:1996

IEC 60071-2 Ed. 3.0 b:1996

$193.00 $387.00
