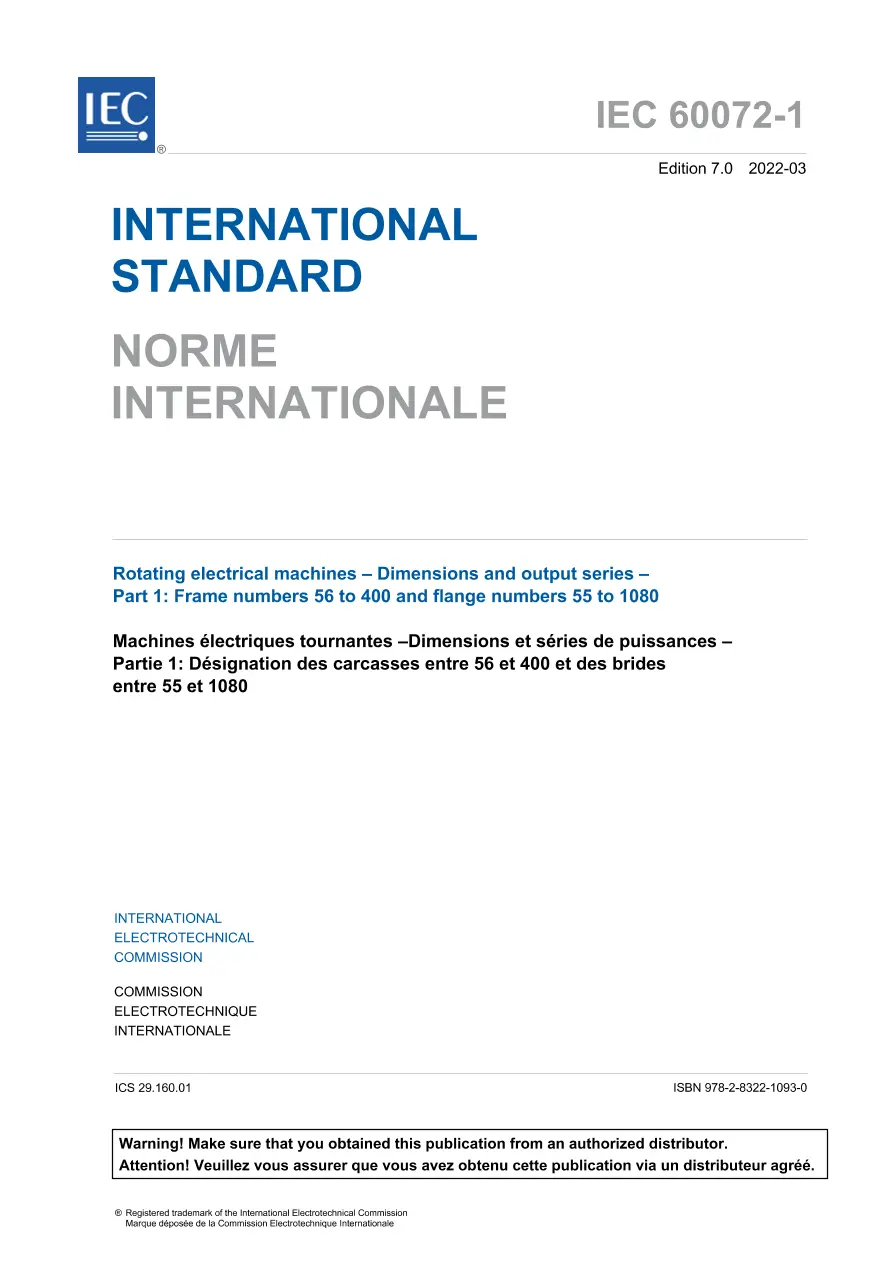

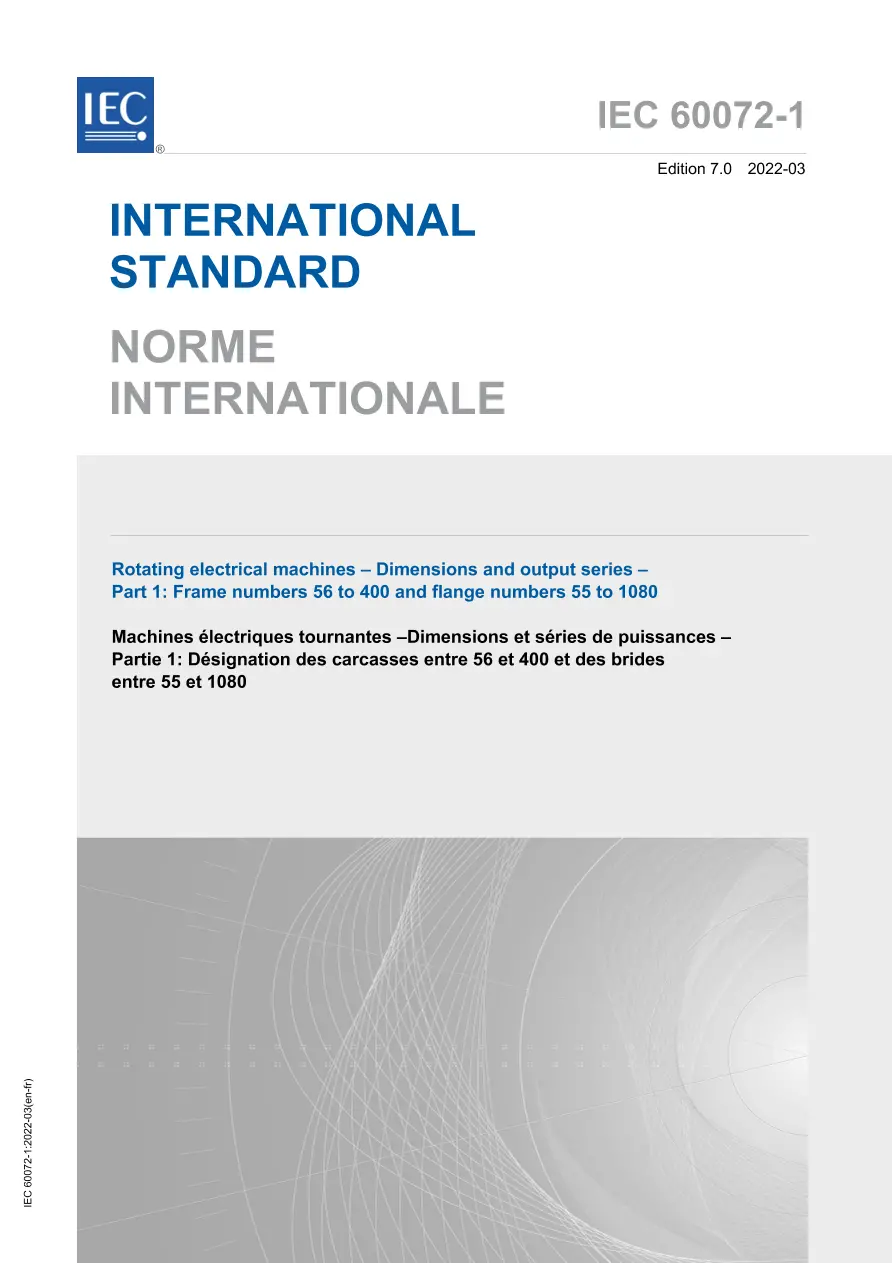

IEC 60072-1 Ed. 7.0 b:2022

Rotating electrical machines - Dimensions and output series - Part 1: Frame numbers 56 to 400 and flange numbers 55 to 1080

International Electrotechnical Commission , 03/01/2022

Publisher: IEC

File Format: PDF

$117.00$234.00


This part of IEC 60072 is applicable for the majority of rotating electrical machines for industrial purposes within the dimension range and output powers:

Foot- mounted: shaft heights: 56 mm to 400 mm.
Flange- mounted: pitch circle diameter of flange: 55 mm to 1 080 mm.

It specifies the fixing dimensions, shaft extension dimensions and the assignment of output powers and frame sizes.

IEC 60072-1 Ed. 7.0 b:2022 History

IEC 60072-1 Ed. 7.0 b:2022

IEC 60072-1 Ed. 7.0 b:2022

$117.00 $234.00

IEC 60072-1 Ed. 6.0 b:1991

IEC 60072-1 Ed. 6.0 b:1991

$196.00 $392.00
