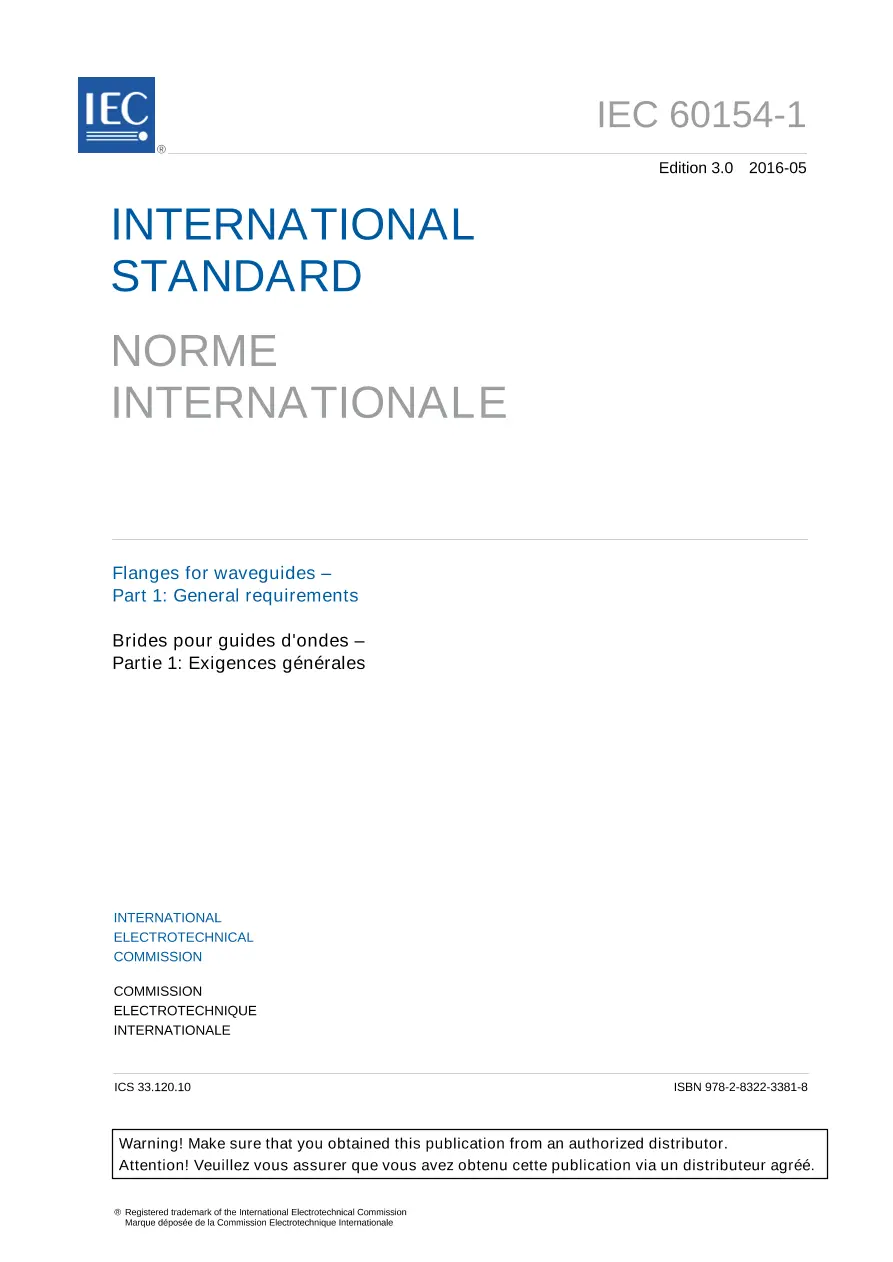

IEC 60154-1 Ed. 3.0 b:2016

Flanges for waveguides - Part 1: General requirements

International Electrotechnical Commission , 05/18/2016

Publisher: IEC

File Format: PDF

$25.00$51.00


IEC 60154-1:2016 specifies the dimensions of waveguide flanges for use in electronic equipment. It covers requirements for flanges drilled before or after mounting on waveguides. It should be noted that for optimum electrical performance, post-drilling of the alignment holes after mounting is recommended. The aim of this standard is to specify for waveguide flanges the mechanical requirements necessary to ensure compatibility and, as far as practicable, interchangeability as well as to ensure adequate electrical performance.
