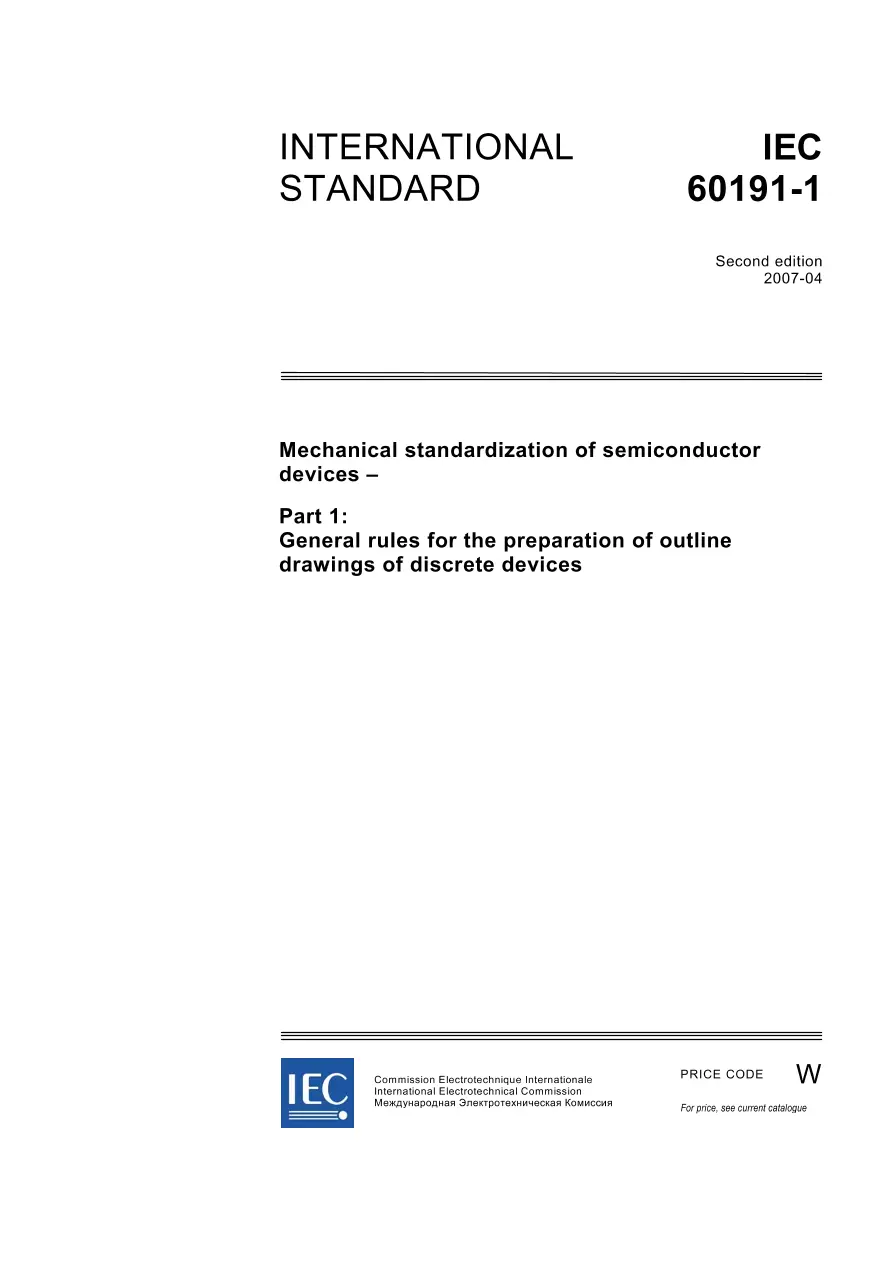

IEC 60191-1 Ed. 2.0 en:2007

Mechanical standardization of semiconductor devices - Part 1: General rules for the preparation of outline drawings of discrete devices

International Electrotechnical Commission , 04/24/2007

Publisher: IEC

File Format: PDF

$94.00$189.00

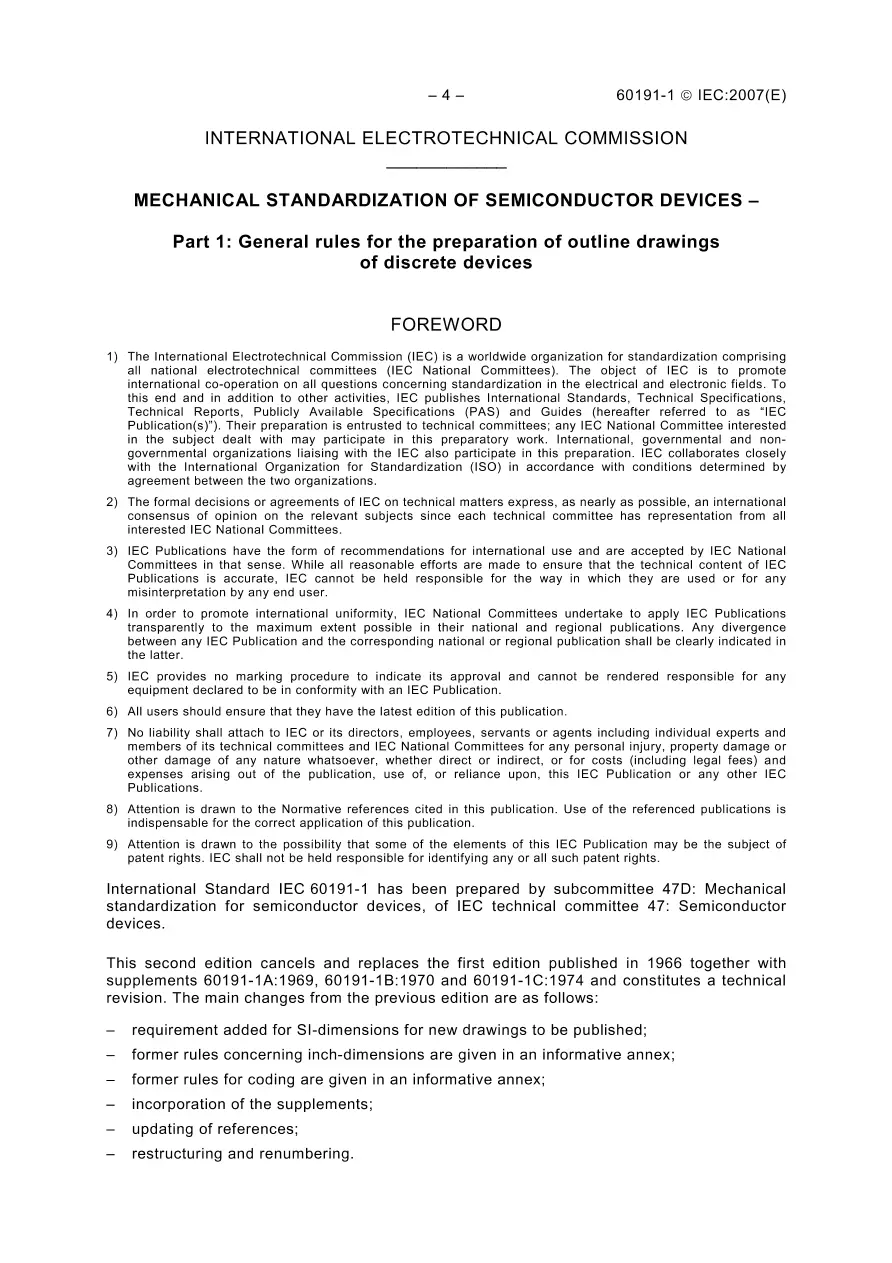

Gives guidelines on the preparation of outline drawings of discrete devices. For preparation of outline drawings of surface mounted discrete devices, IEC 60191-6 should be referred to as well. The main changes from the previous edition are as follows: - requirement added for SI-dimensions for new drawings to be published; - former rules concerning inch-dimensions are given in an informative annex; - former rules for coding are given in an informative annex; - incorporation of the supplements; - updating of references; - restructuring and renumbering.

IEC 60191-1 Ed. 2.0 en:2007 History

IEC 60191-1 Ed. 3.0 en:2018

IEC 60191-1 Ed. 3.0 en:2018

$139.00 $278.00

IEC 60191-1 Ed. 2.0 b:2007

IEC 60191-1 Ed. 2.0 b:2007

$117.00 $235.00

IEC 60191-1 Ed. 2.0 en:2007
