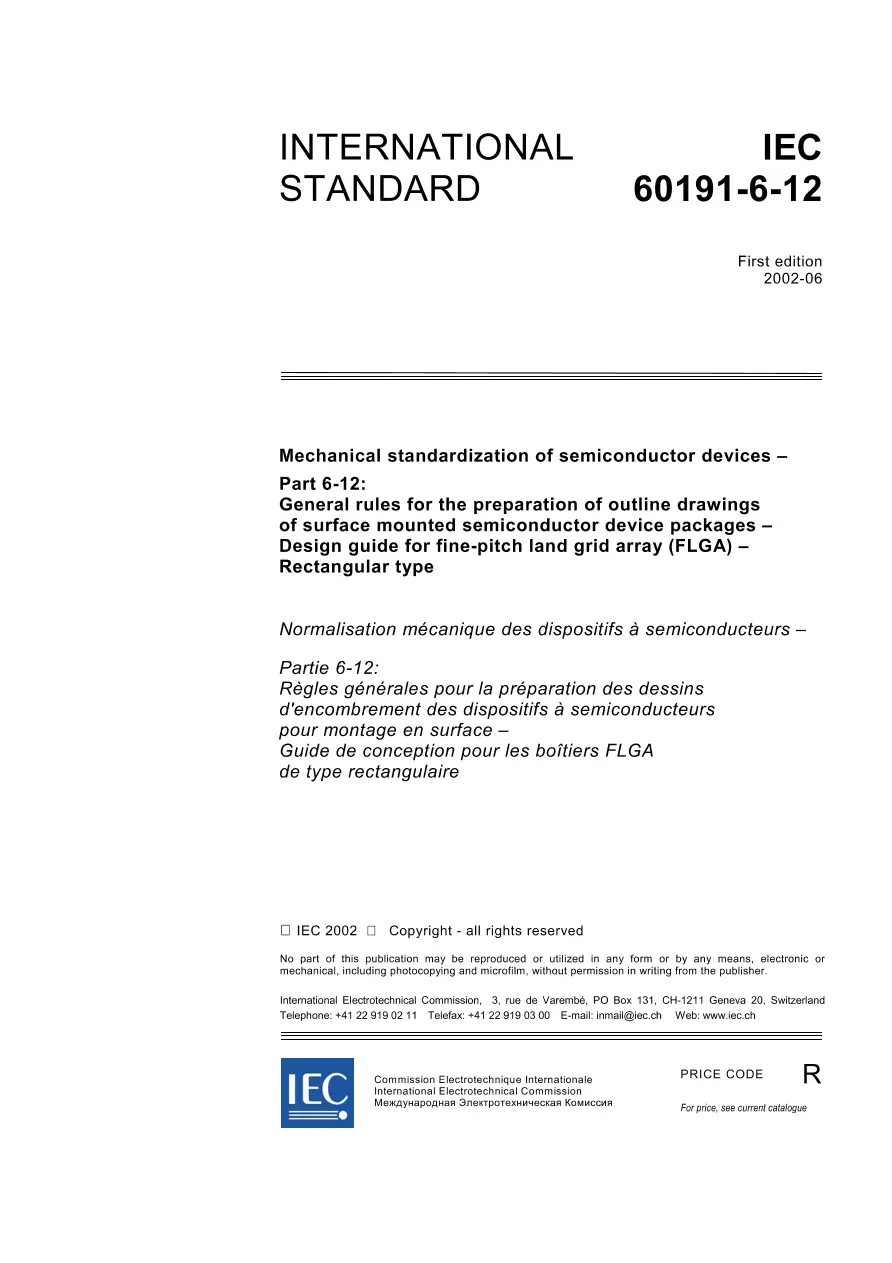

IEC 60191-6-12 Ed. 1.0 en:2002

Mechanical standardization of semiconductor devices - Part 6-12: General rules for the preparation of outline drawings of surface mounted semiconductor device packages - Design guide for fine-pitch land grid array (FLGA) - Rectangular type

International Electrotechnical Commission , 06/14/2002

Publisher: IEC

File Format: PDF

$50.00$100.00

Description

Standard By:International Electrotechnical Commission , 06/14/2002

Published:06/14/2002

Pages:20

File Size:1 file , 490 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

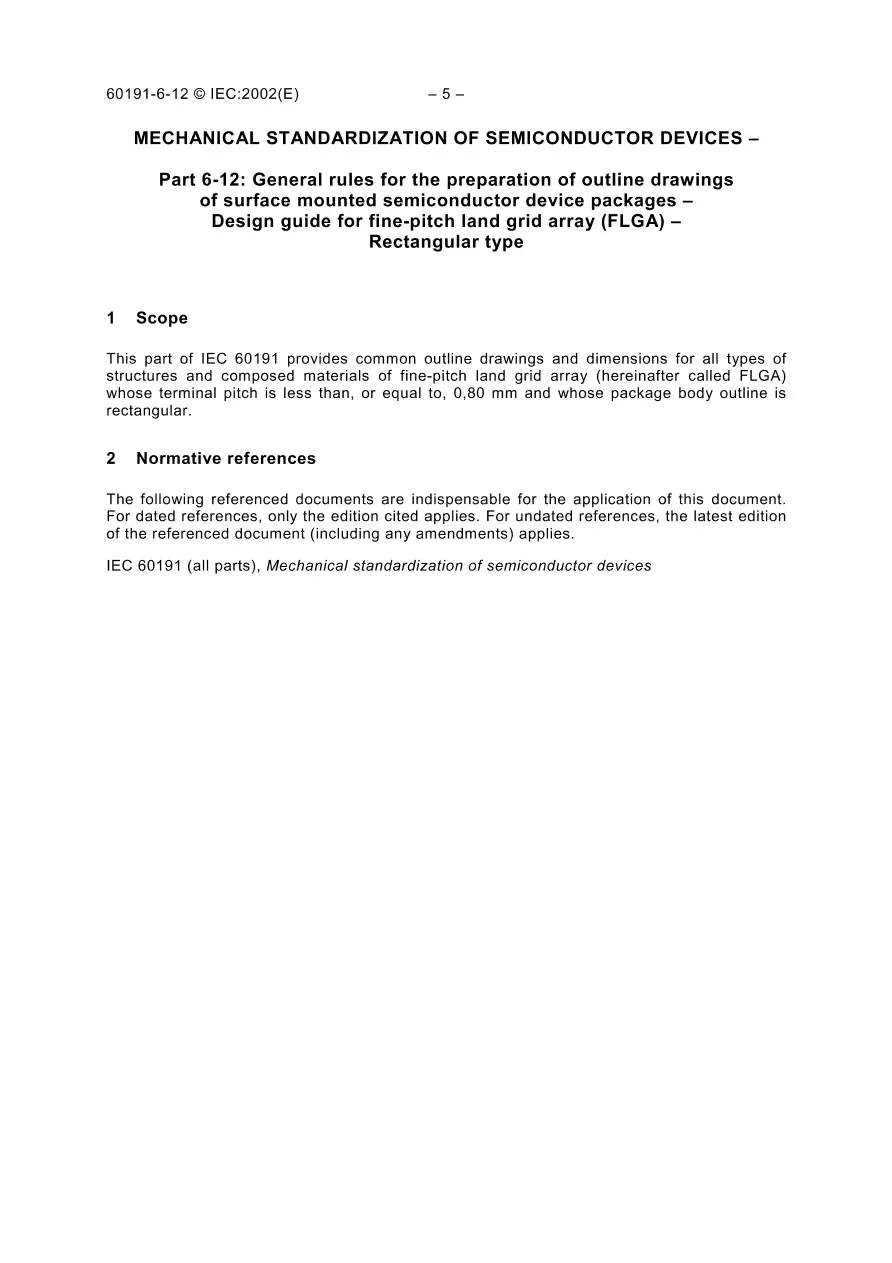

Provides common outline drawings and dimensions for all types of structures and composed materials of fine-pitch land grid array whose terminal pitch is less than, or equal to, 0,80 mm and whose package body outline is rectangular.

IEC 60191-6-12 Ed. 1.0 en:2002 History

IEC 60191-6-12 Ed. 2.0 b:2011

$72.00 $145.00

IEC 60191-6-12 Ed. 1.0 en:2002

$50.00 $100.00
