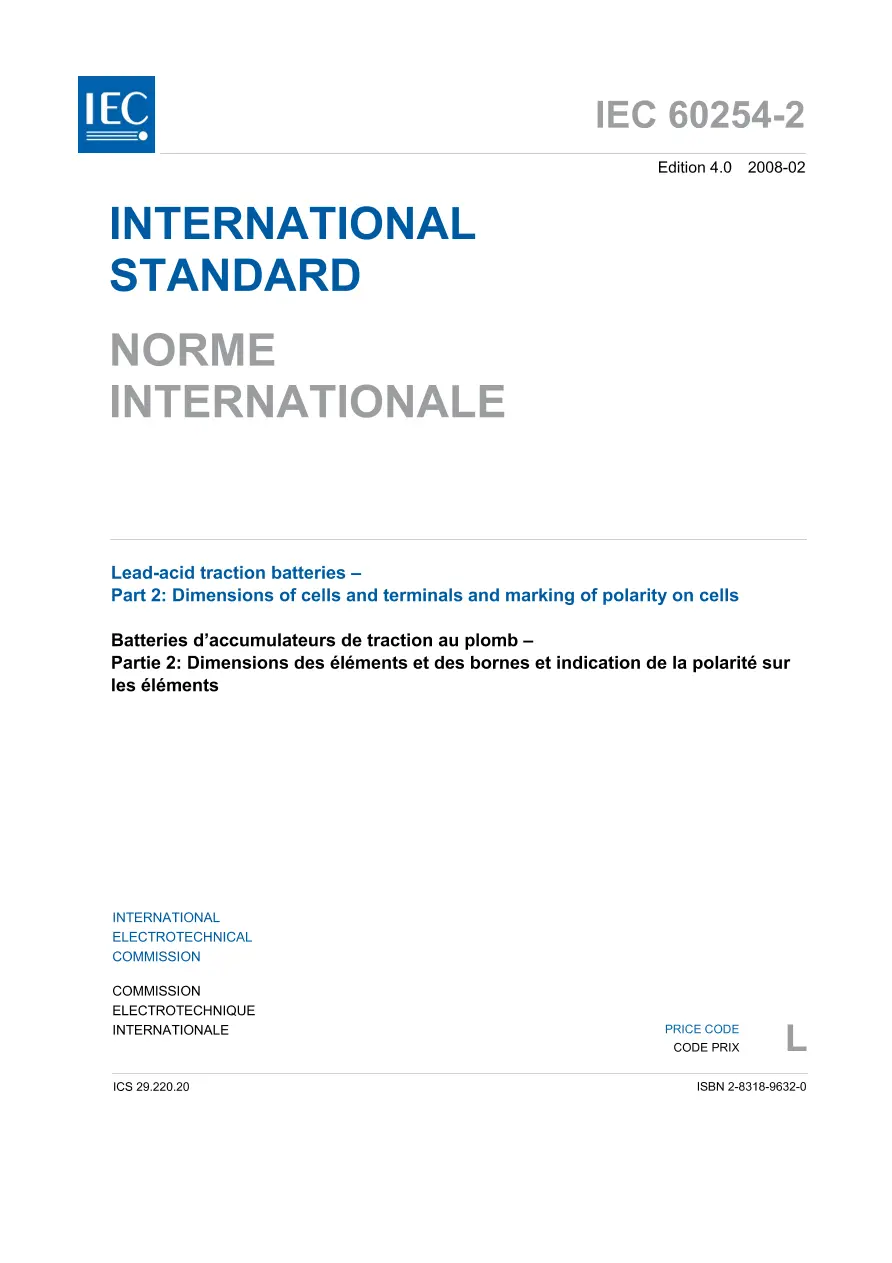

IEC 60254-2 Ed. 4.0 b:2008

Lead-acid traction batteries - Part 2: Dimensions of cells and terminals and marking of polarity on cells

International Electrotechnical Commission , 02/22/2008

Publisher: IEC

File Format: PDF

$25.00$51.00

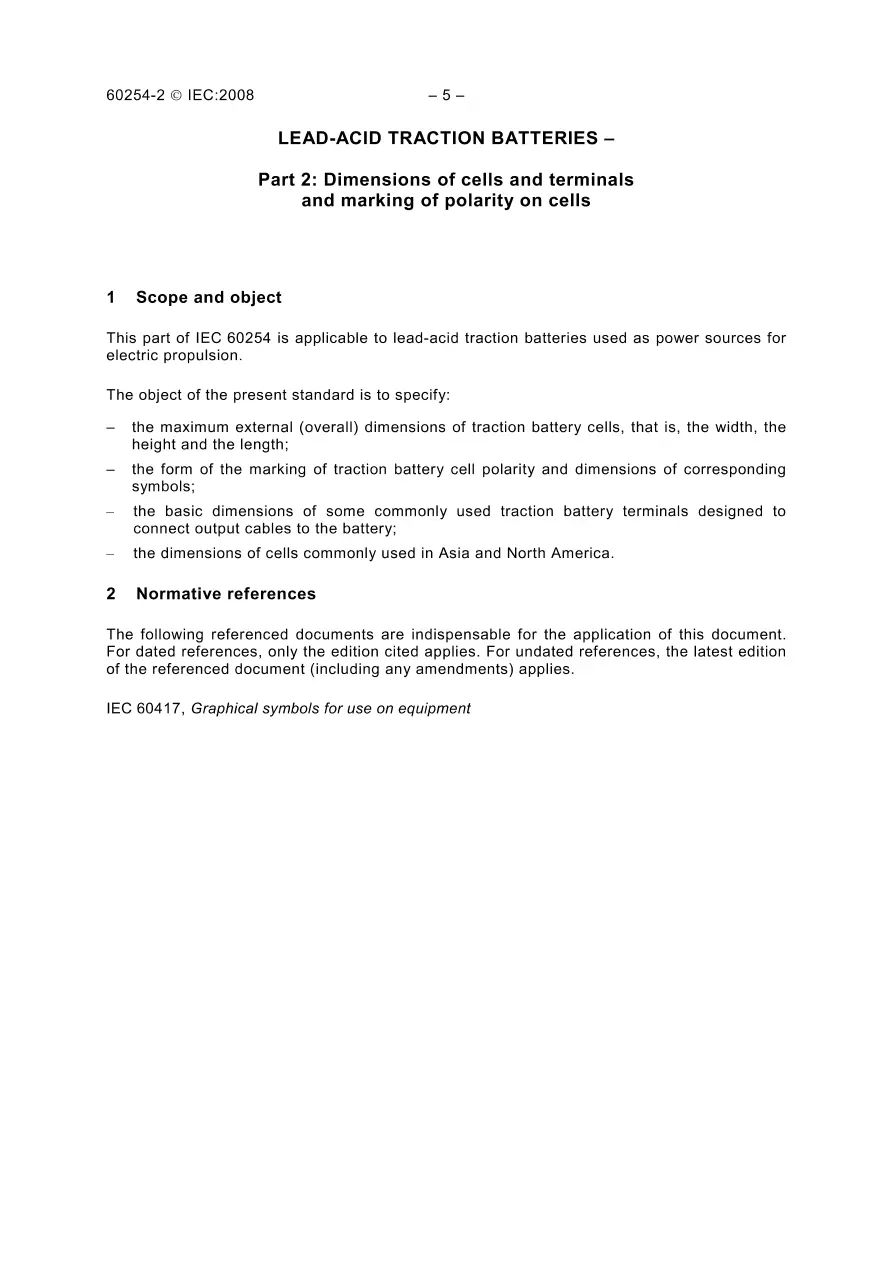

This part of IEC 60254 is applicable to lead-acid traction batteries used as power sources for electric propulsion. The object of the present standard is to specify:
- the maximum external (overall) dimensions of traction battery cells, that is, the width, the height and the length;
- the form of the marking of traction battery cell polarity and dimensions of corresponding symbols;
- the basic dimensions of some commonly used traction battery terminals designed to connect output cables to the battery;
- the dimensions of cells commonly used in Asia and North America.

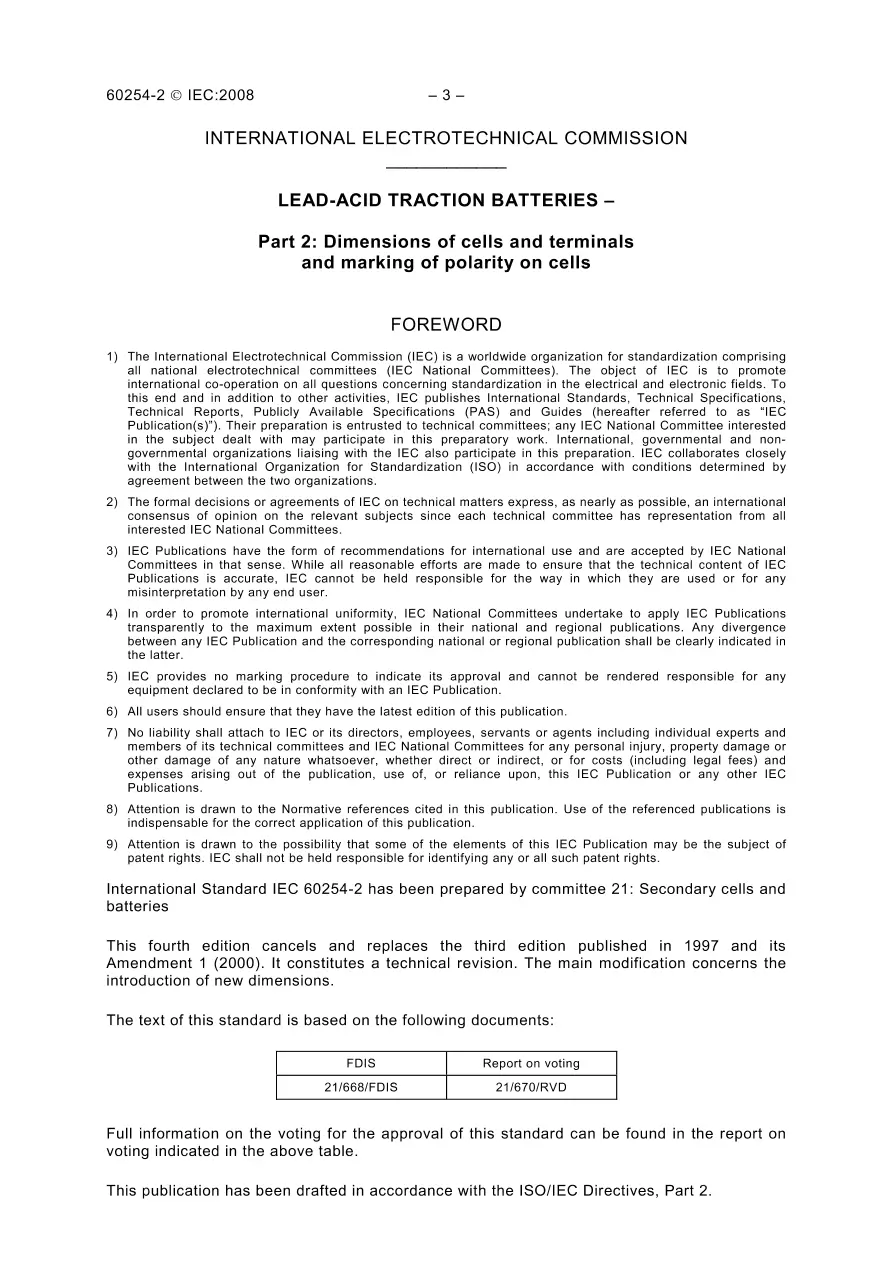

This fourth edition cancels and replaces the third edition published in 1997 and its Amendment 1 (2000). It constitutes a technical revision. The main modification concerns the introduction of new dimensions.

IEC 60254-2 Ed. 4.0 b:2008 History

IEC 60254-2 Ed. 4.0 b:2008
IEC 60254-2 Ed. 3.1 b:2000
