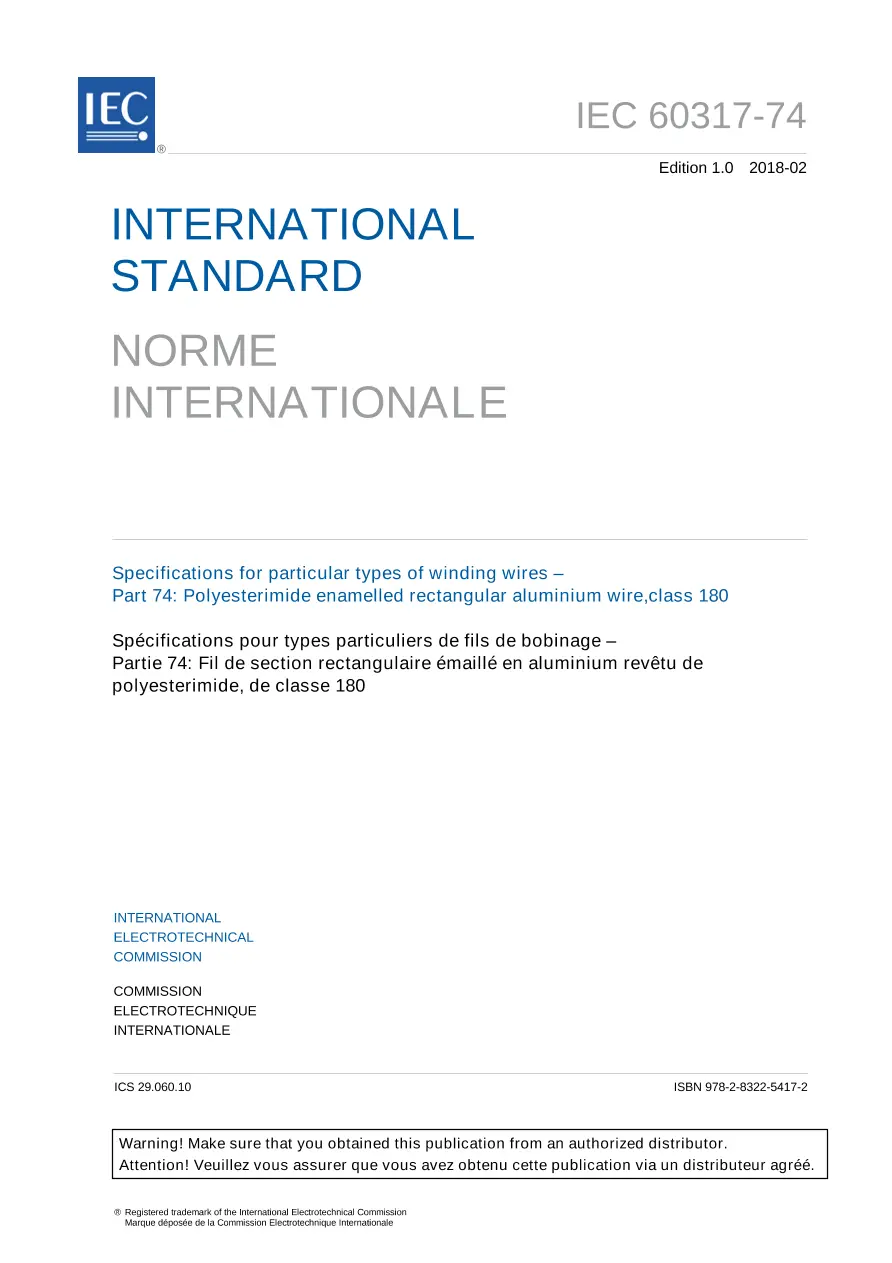

IEC 60317-74 Ed. 1.0 b:2018

Specifications for particular types of winding wires - Part 74: Polyesterimide enamelled rectangular aluminium wire, class 180

International Electrotechnical Commission , 02/27/2018

Publisher: IEC

File Format: PDF

$25.00$51.00


IEC 60317-74:2018 specifies the requirements of enamelled rectangular aluminium winding wire of class 180 with a sole coating based on polyesterimide resin, which can be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to enhance certain performance or application characteristics. The range of nominal conductor dimensions covered by this standard is:
- width: min. 2,0 mm - max. 16,0 mm;
- thickness: min. 0,80 mm - max. 5,60 mm.
Wires of grade 1 and grade 2 are included in this specification and apply to the complete range of conductors. The specified combinations of width and thickness as well as the specified width/thickness ratio are given in IEC 60317-0-9:2015.
Keywords: insulated wires used for windings

IEC 60317-74 Ed. 1.0 b:2018 History

IEC 60317-74 Ed. 1.1 En:2024
IEC 60317-74 Ed. 1.0 b:2018
