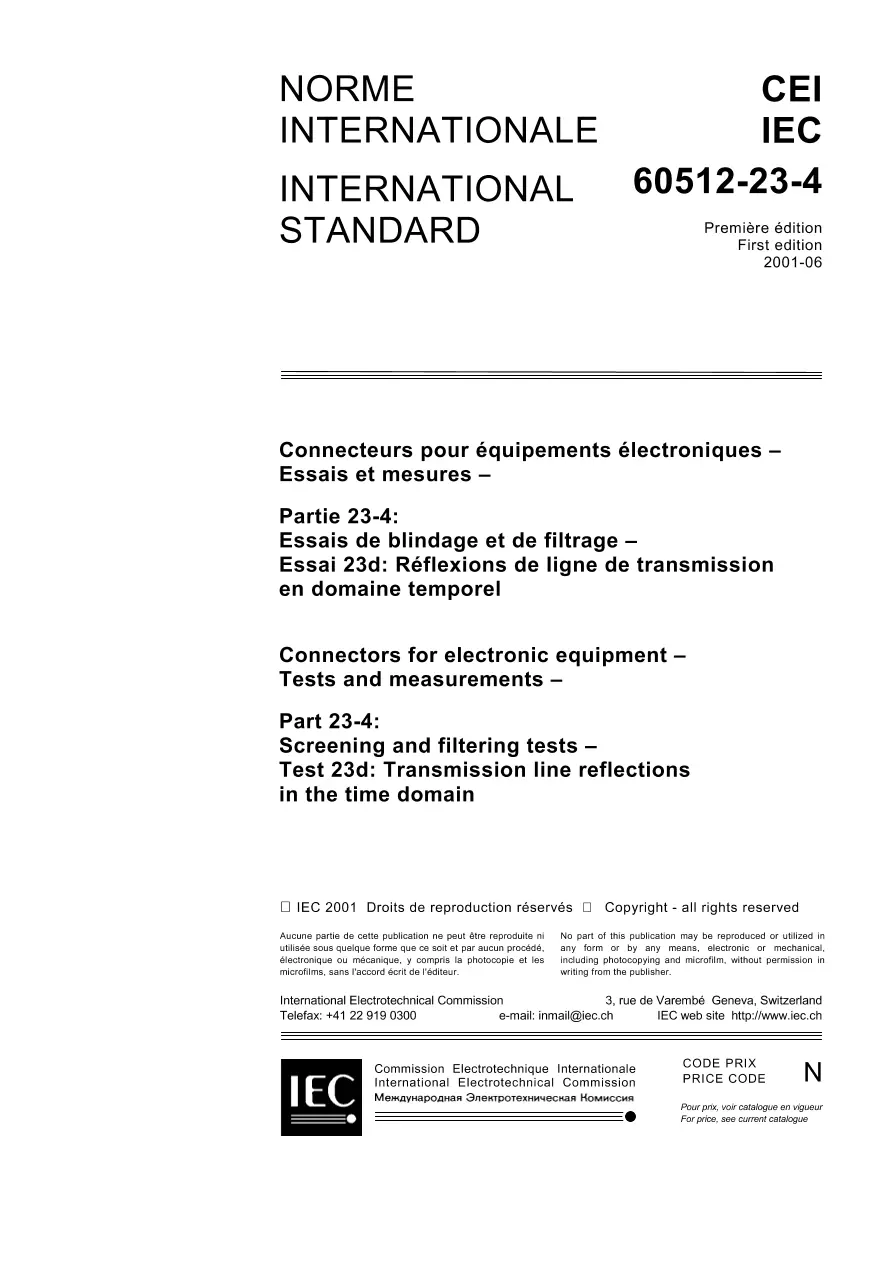

IEC 60512-23-4 Ed. 1.0 b:2001

Connectors for electronic equipment - Tests and measurements - Part 23-4: Screening and filtering tests - Test 23d: Transmission line reflections in the time domain

International Electrotechnical Commission , 06/19/2001

Publisher: IEC

File Format: PDF

$47.00$95.00


Defines two test methods for evaluating the performance of a connector in a transmission line by measuring the reflections produced by it in the time domain. The connector is treated as a discontinuity in a transmission line with a controlled characteristic impedance.
