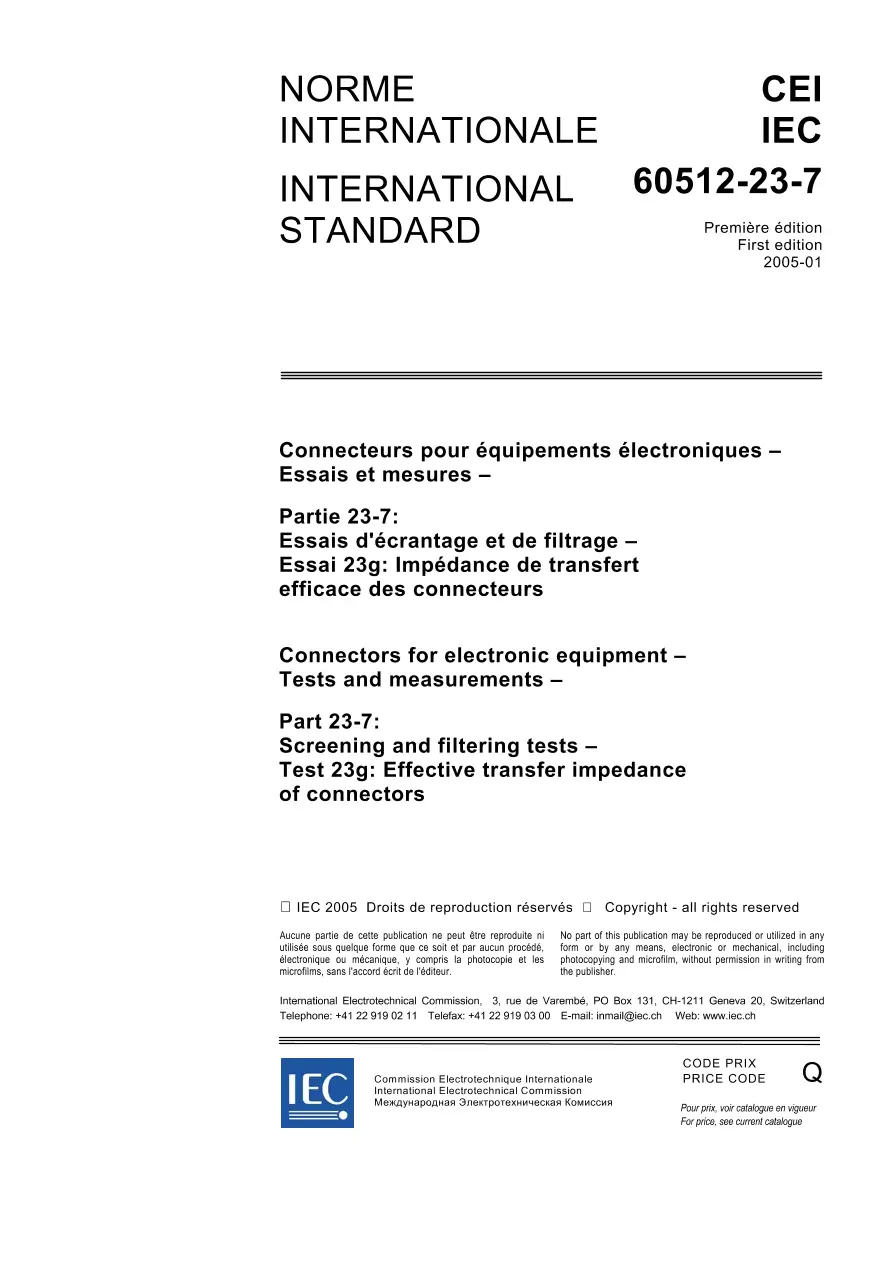

IEC 60512-23-7 Ed. 1.0 b:2005

Connectors for electronic equipment - Tests and measurements - Part 23-7: Screening and filtering tests - Test 23g: Effective transfer impedance of connectors

International Electrotechnical Commission , 01/27/2005

Publisher: IEC

File Format: PDF

$72.00$145.00

Description

Standard By:International Electrotechnical Commission , 01/27/2005

Published:01/27/2005

Pages:33

File Size:1 file , 680 KB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

Defines a test method intended to assess the screening effectiveness of screened non-circular multi-pole, electrically short, connectors by the measurement of the effective (surface) transfer impedance, using a network analyzer, for frequencies up to 1 GHz. Is based on the line injection test method.
