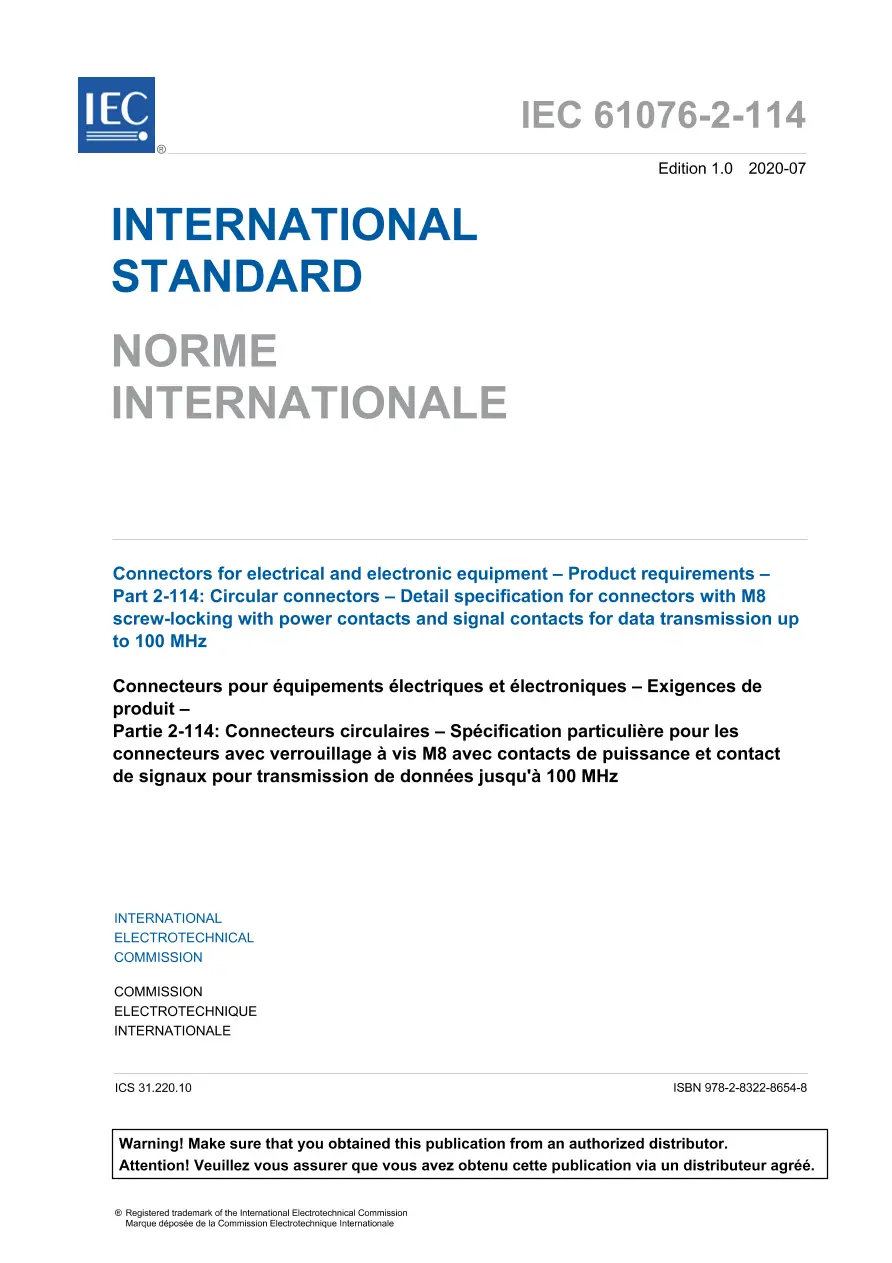

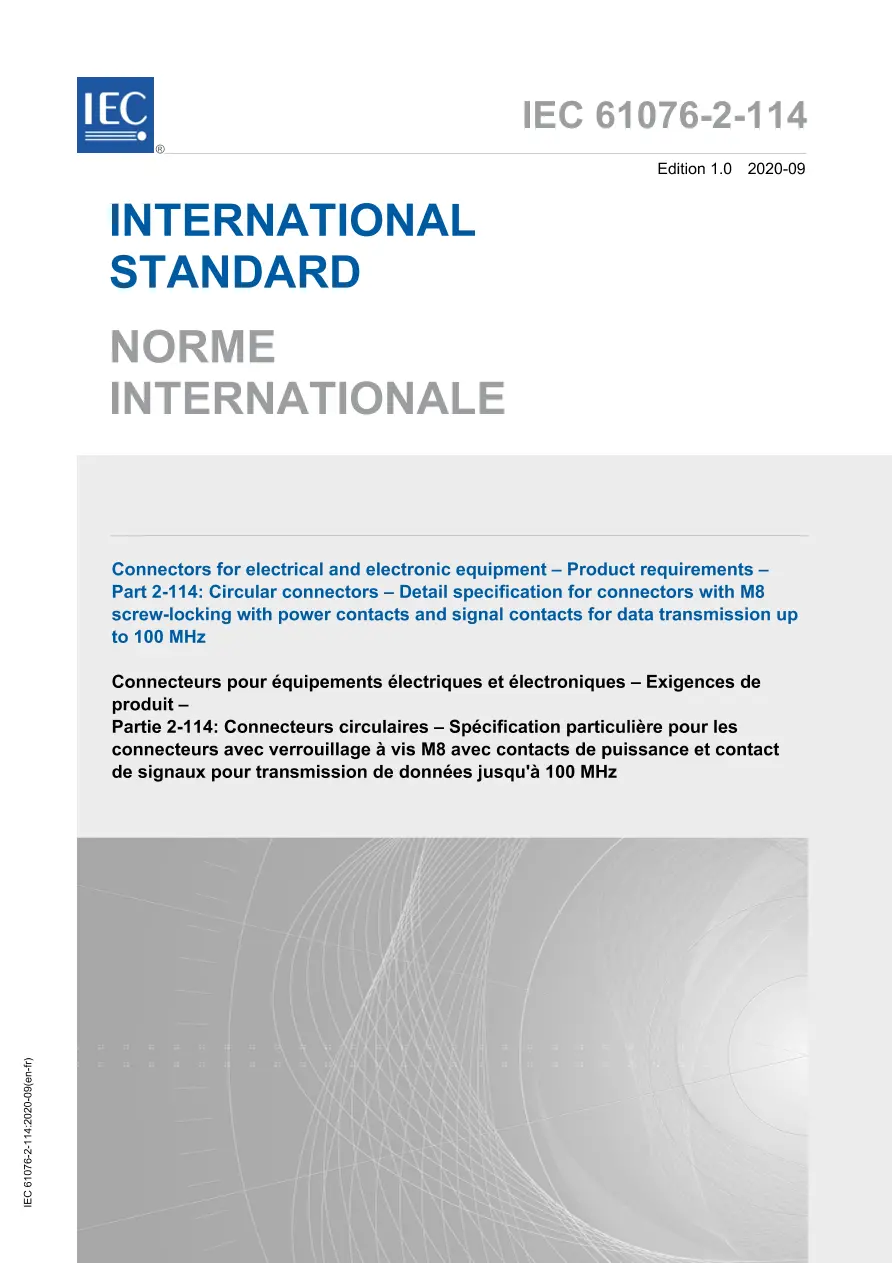

IEC 61076-2-114 Ed. 1.0 b:2020

Connectors for electronic equipment - Product requirements - Part 2-114: Circular connectors - Detail specification for data and power connectors with M8 screw-locking

International Electrotechnical Commission , 09/24/2020

Publisher: IEC

File Format: PDF

$164.00$329.00

Description

Standard By:International Electrotechnical Commission , 09/24/2020

Published:09/24/2020

Pages:93

ISBN(s):9782832286548

File Size:1 file , 3.9 MB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC PAS 61076-2-114:2020 describes circular connectors with M8 screw-locking typically used for data transmissions in industrial applications. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with M8 screw-locking. Male connectors have round contacts with a diameter of 0,8 mm. The coding provided by this PAS prevents the mating of accordingly coded male or female connectors to any other similarly sized interfaces covered by other standards. Keywords: Circular connector, Screw-locking, M8

IEC 61076-2-114 Ed. 1.0 b:2020

Connectors for electronic equipment - Product requirements - Part 2-114: Circular connectors - Detail specification for data and power connectors with M8 screw-locking
