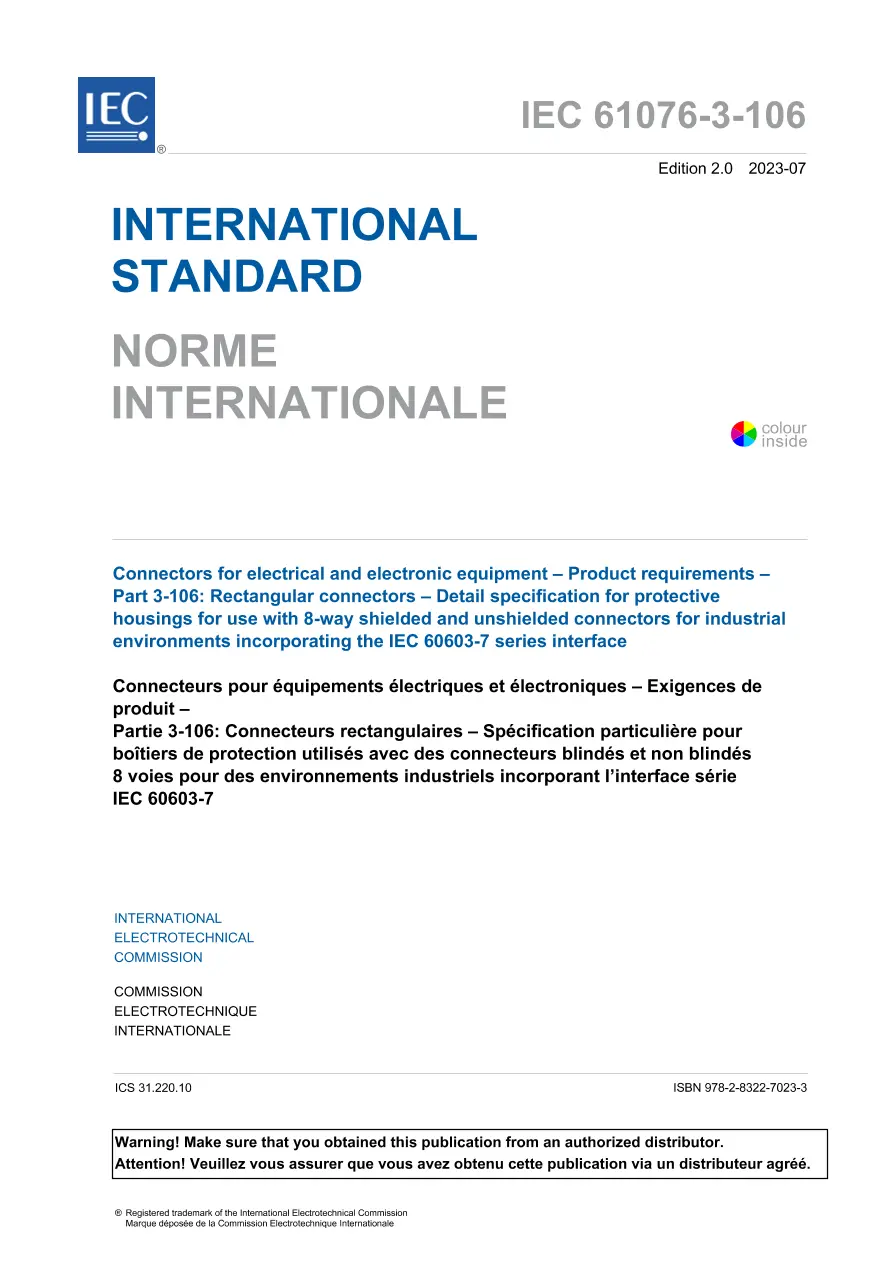

IEC 61076-3-106 Ed. 2.0 b:2023

Connectors for electronic equipment - Product requirements - Part 3-106: Rectangular connectors - Detail specification for protective housings for use with 8-way shielded and unshielded connectors for industrial environments incorporating the IEC 60603-7 series interface

International Electrotechnical Commission , 07/01/2023

Publisher: IEC

File Format: PDF

$139.00$278.00

Description

Standard By:International Electrotechnical Commission , 07/01/2023

Published:07/01/2023

Pages:78

ISBN(s):9782832270233

File Size:1 file , 3.5 MB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

This part of IEC 61076 constitutes a detail product specification for 8-way connectors for data transmission with frequencies up to 600 MHz.

It covers protective housings for upgrading existing 8-way shielded and unshielded connectors utilizing the interface described in the IEC 60603-7 series to IP65/IP67 rating according to IEC 60529, for use in industrial environments.

The housings cover a variety of different locking mechanisms according to this document and a variety of different mounting configurations and termination types which are detailed in the IEC 60603-7 series.

Common mating configurations for all variants are defined in IEC 60603-7. The mating dimensions for the housings under Clause 3 allow the mating conditions under IEC 60603-7 to be fulfilled.

The fully assembled variants (connectors) described in this document incorporate fully compliant IEC 60603-7 series fixed and free connectors.
