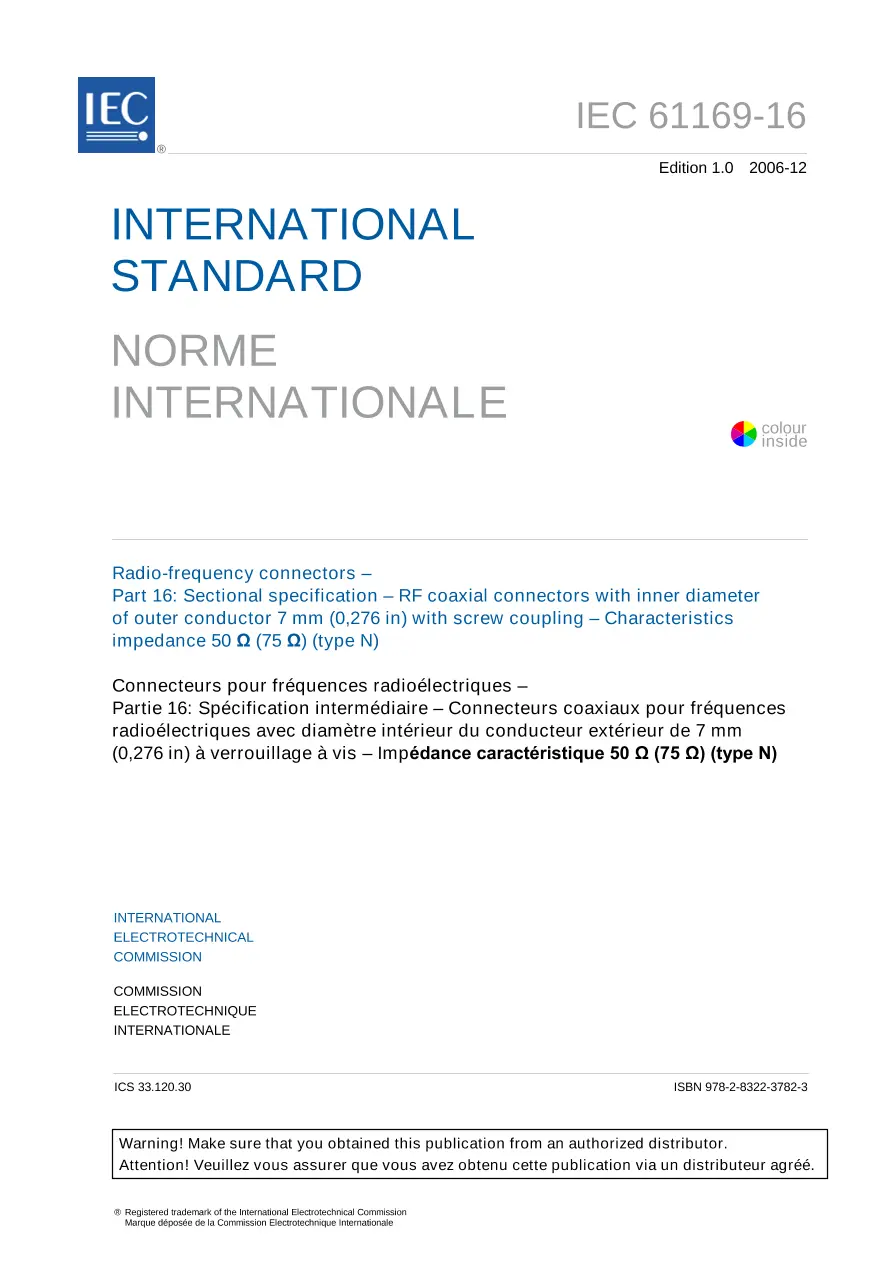

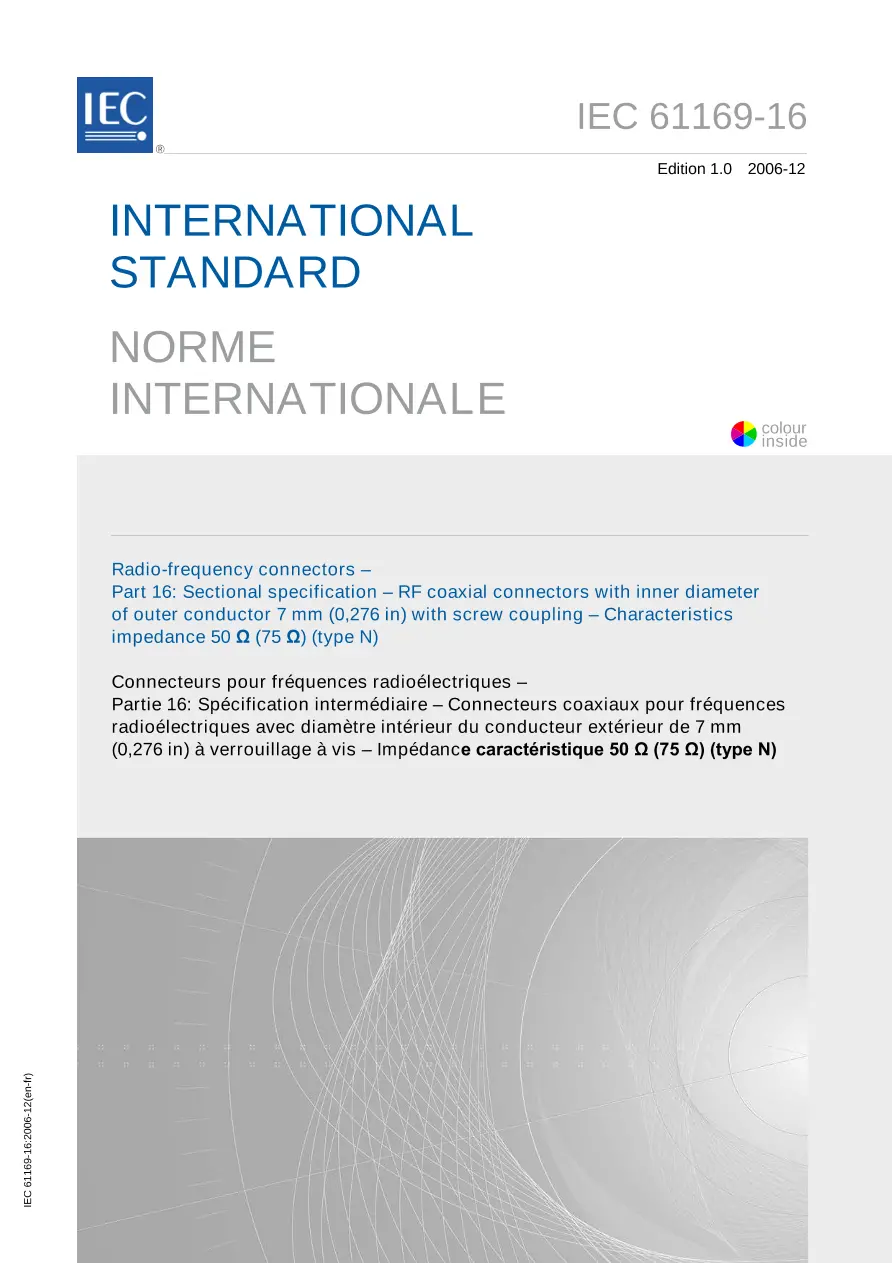

IEC 61169-16 Ed. 1.0 b:2006

Radio-frequency connectors - Part 16: Sectional specification - RF coaxial connectors with inner diameter of outer conductor 7 mm (0,276 in) with screw coupling - Characteristics impedance 50 ohms (75 ohms) (type N)

International Electrotechnical Commission , 12/14/2006

Publisher: IEC

File Format: PDF

$139.00$278.00


IEC 61169-16:2006 Provides information and rules for the preparation of Detail Specifications (DS) for pin and socket R.F. coaxial connectors, with screw coupling mechanism, for low to medium power applications. The connector is commonly known as the "type N". Three versions of the 50 characteristic impedance type N connector are included, each version being mateable with each of the others.

IEC 61169-16 Ed. 1.0 b:2006 History

IEC 61169-16 Ed. 1.0 en:2006
IEC 61169-16 Ed. 1.0 b:2006

IEC 61169-16 Ed. 1.0 b:2006

$139.00 $278.00
