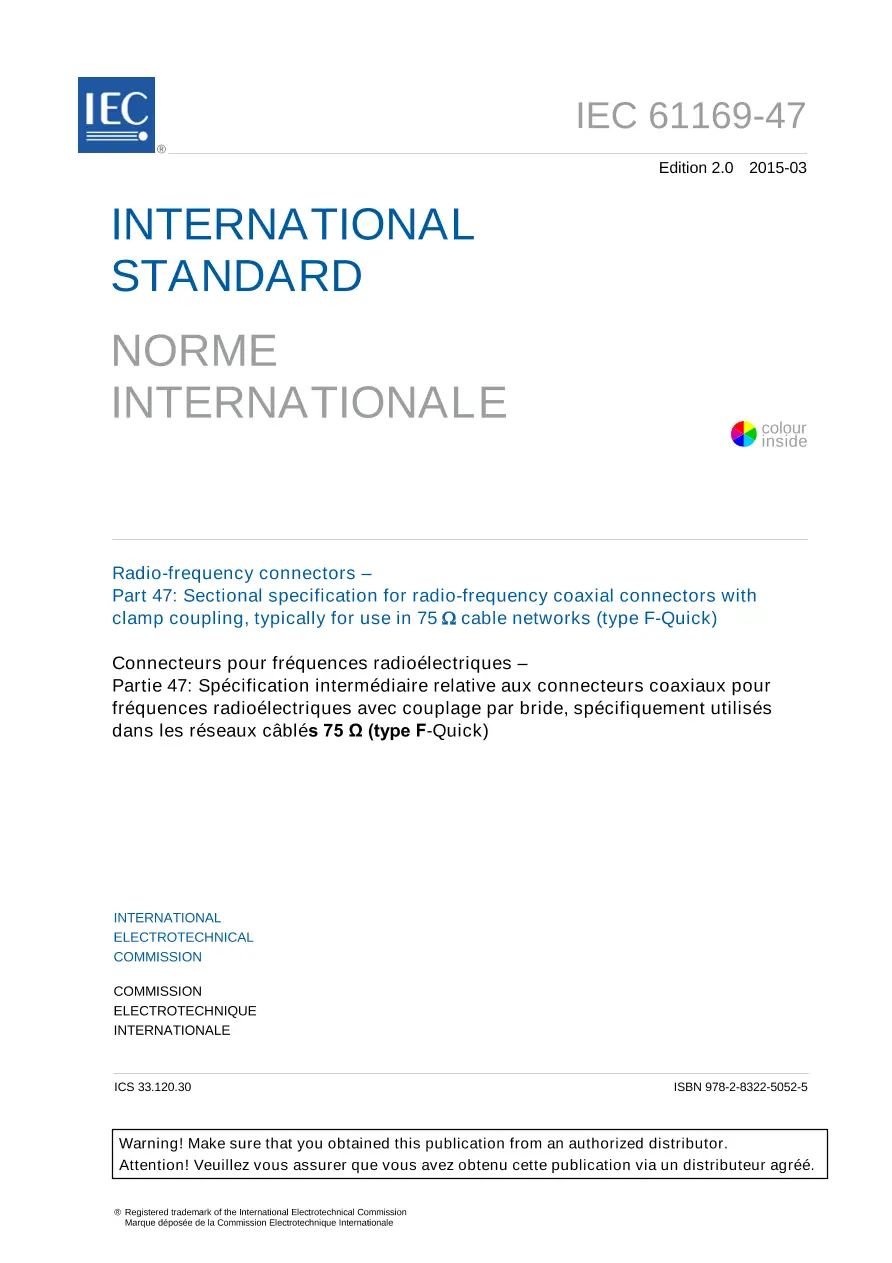

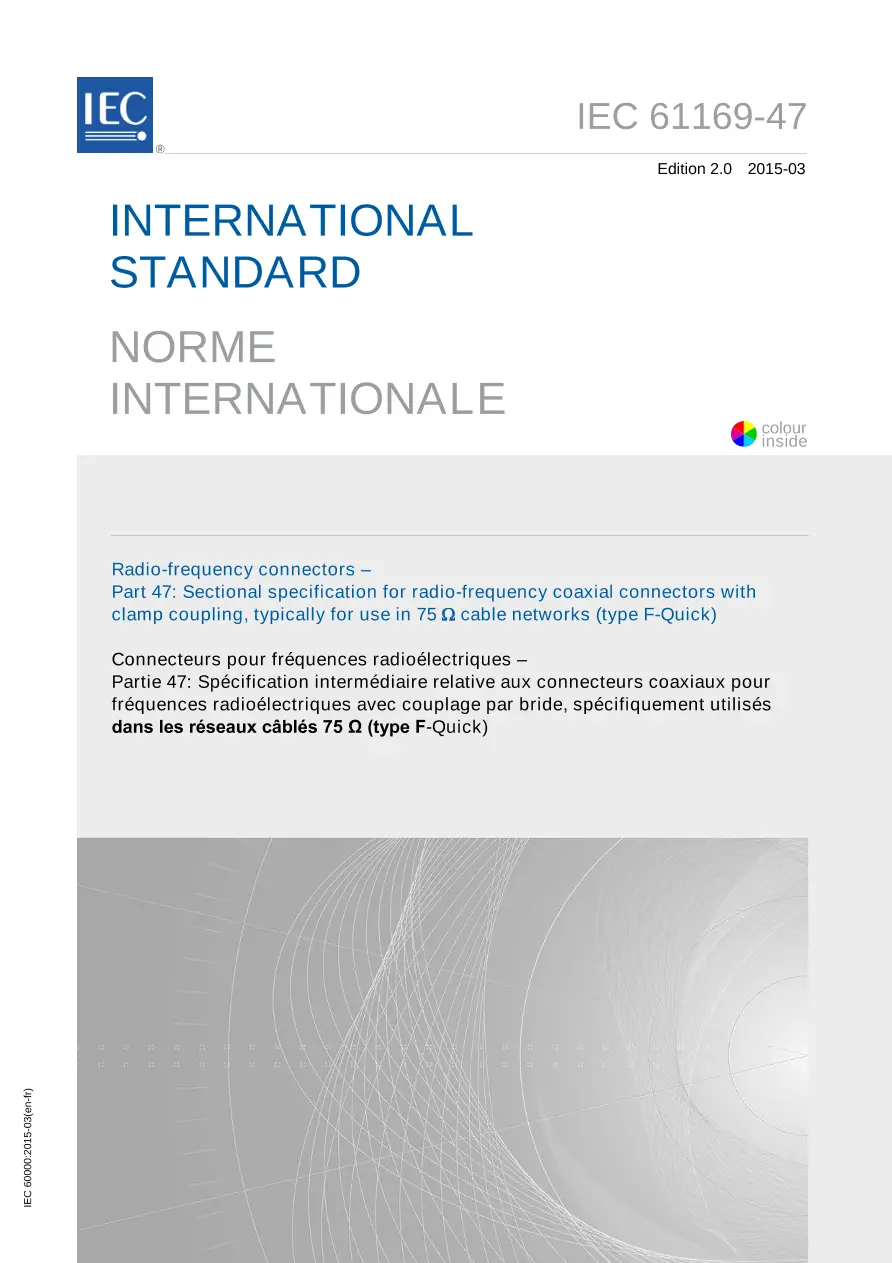

IEC 61169-47 Ed. 2.0 b:2015

Radio-frequency connectors - Part 47: Sectional specification for radio-frequency coaxial connectors with clamp coupling, typically for use in 75 ¿¿ cable networks (type F-Quick)

International Electrotechnical Commission , 03/30/2015

Publisher: IEC

File Format: PDF

$95.00$190.00


IEC 61169-47:2015, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for RF coaxial connectors with clamp coupling, typically for use in 75 I cable networks (type F-Quick). It describes the interface dimensions with gauging information, electrical and mechanical performance including the mandatory tests selected from IEC 61169-1:2013, applicable to all DS relating to type F-Quick connectors. This specification indicates the recommended performance characteristics to be considered when writing a DS and covers test schedules and inspection requirements. This second edition cancels and replaces the first edition published in 2012. It constitutes a technical revision. The main changes are listed below:
- Subclause 3.2 has been updated to better define gauging.
- Table 2 has been updated for insertion and removal forces.
- Clause 4 has been updated to refer to the new edition of IEC 61169-1.

IEC 61169-47 Ed. 2.0 b:2015 History

IEC 61169-47 Ed. 2.0 b:2015
IEC 61169-47 Ed. 2.0 en:2015
IEC 61169-47 Ed. 1.0 en:2012
