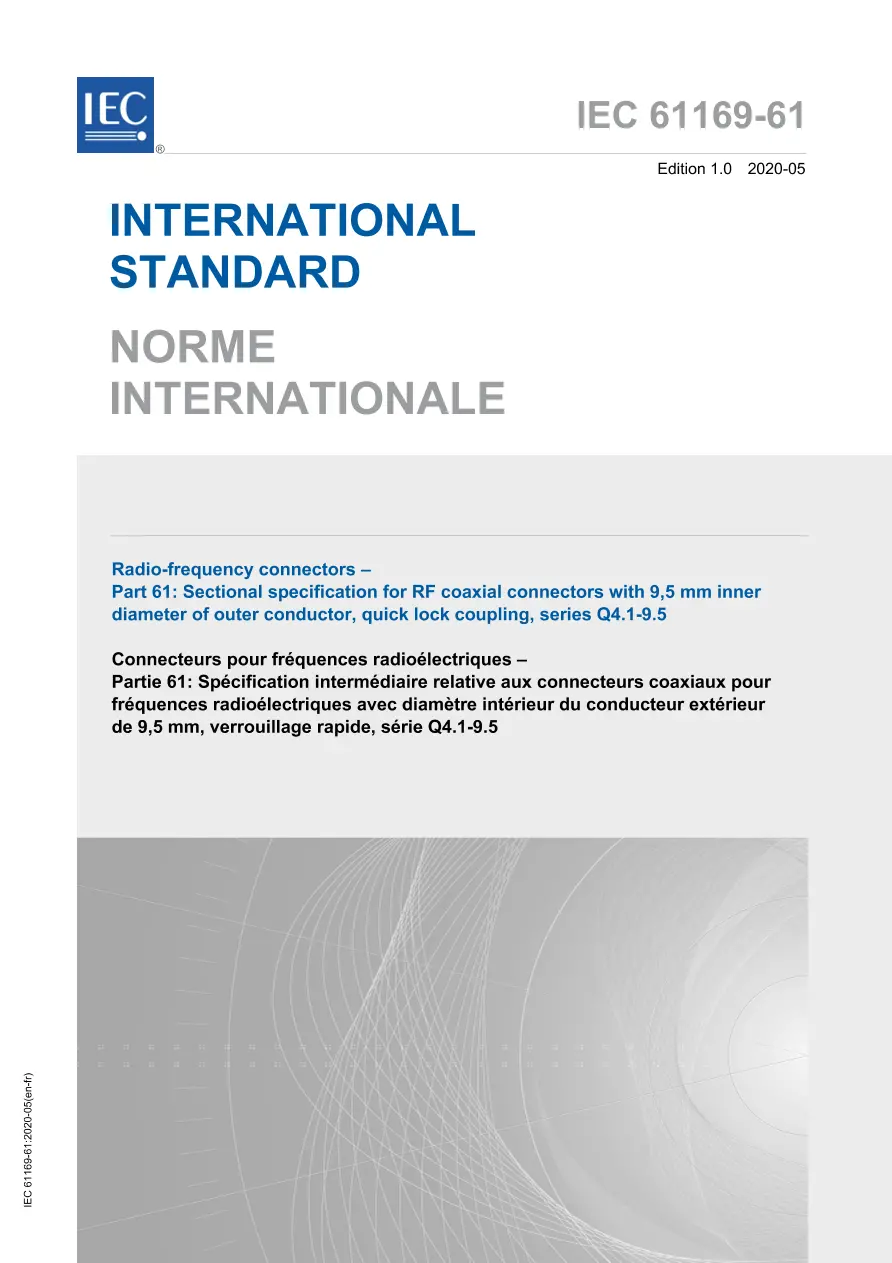

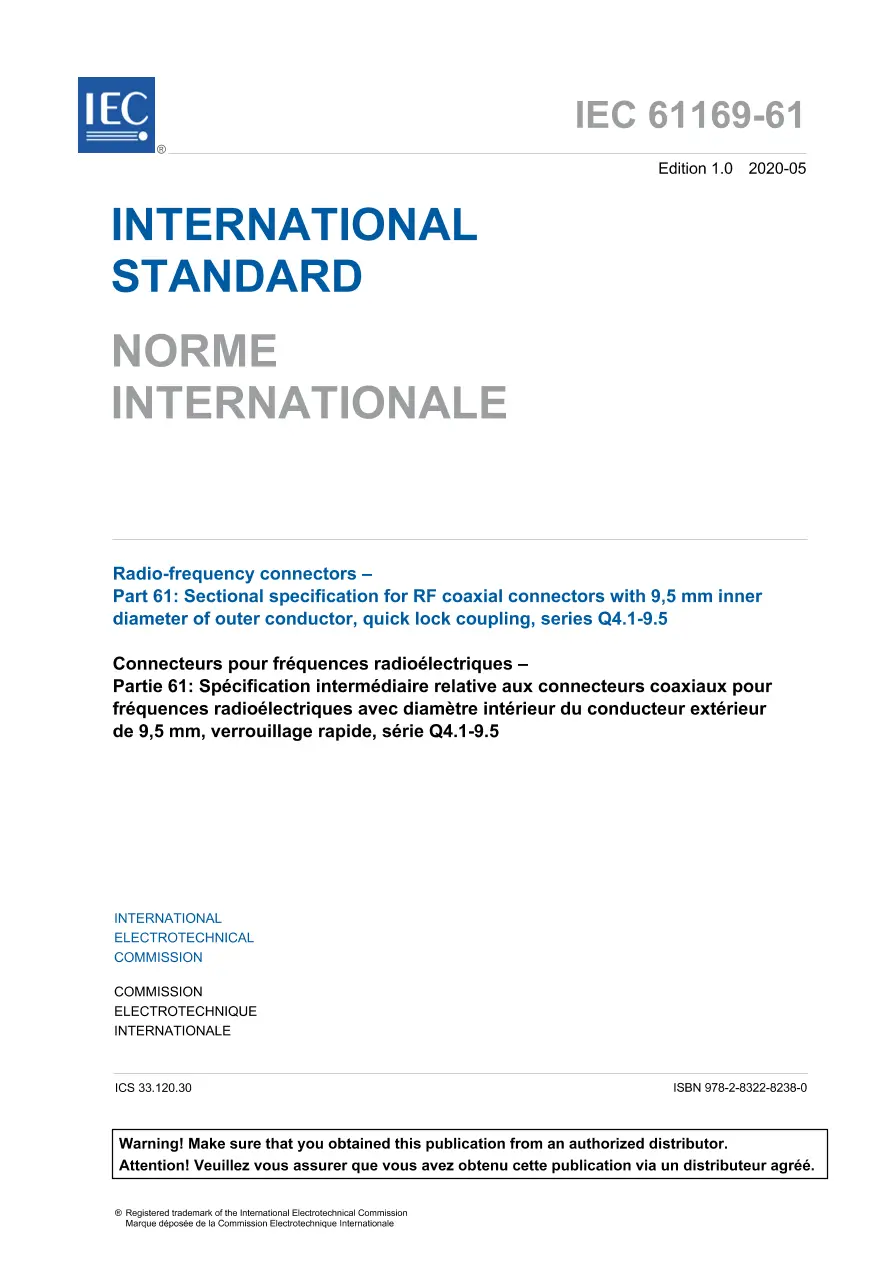

IEC 61169-61 Ed. 1.0 b:2020

Radio-frequency connectors - Part 61: Sectional specification for RF coaxial connectors with 9.5 mm inner diameter of outer conductor with quick lock coupling series Q4.1-9.5

International Electrotechnical Commission , 05/27/2020

Publisher: IEC

File Format: PDF

$139.00$278.00


IEC 61169-61:2020, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for coaxial connectors with a 9,5 mm inner diameter of the outer conductor and quick lock coupling mechanism, characteristic impedance 50 ? and an operating frequency of up to 8,5 GHz. Series Q4.1-9.5 connectors with socket centre contact are compatible with threaded 4,1-9,5 series (specified in IEC 60169-11) connectors with pin centre contact. This type of connectors are starting to be applied in telecommunication systems due to their special features which are suitable for outdoor harsh requirements, such as quick and reliable coupling, compatible with threaded connector and being entirely waterproof.
