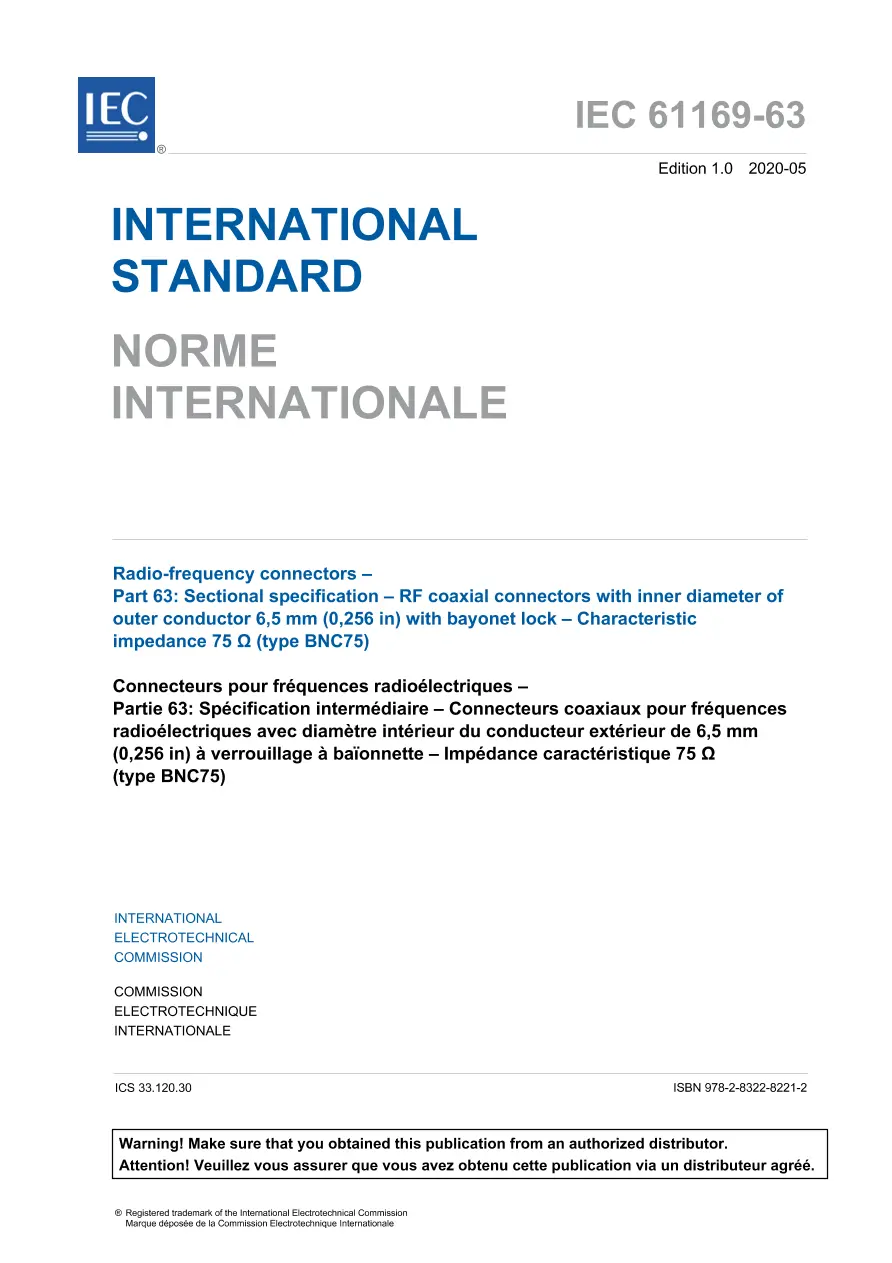

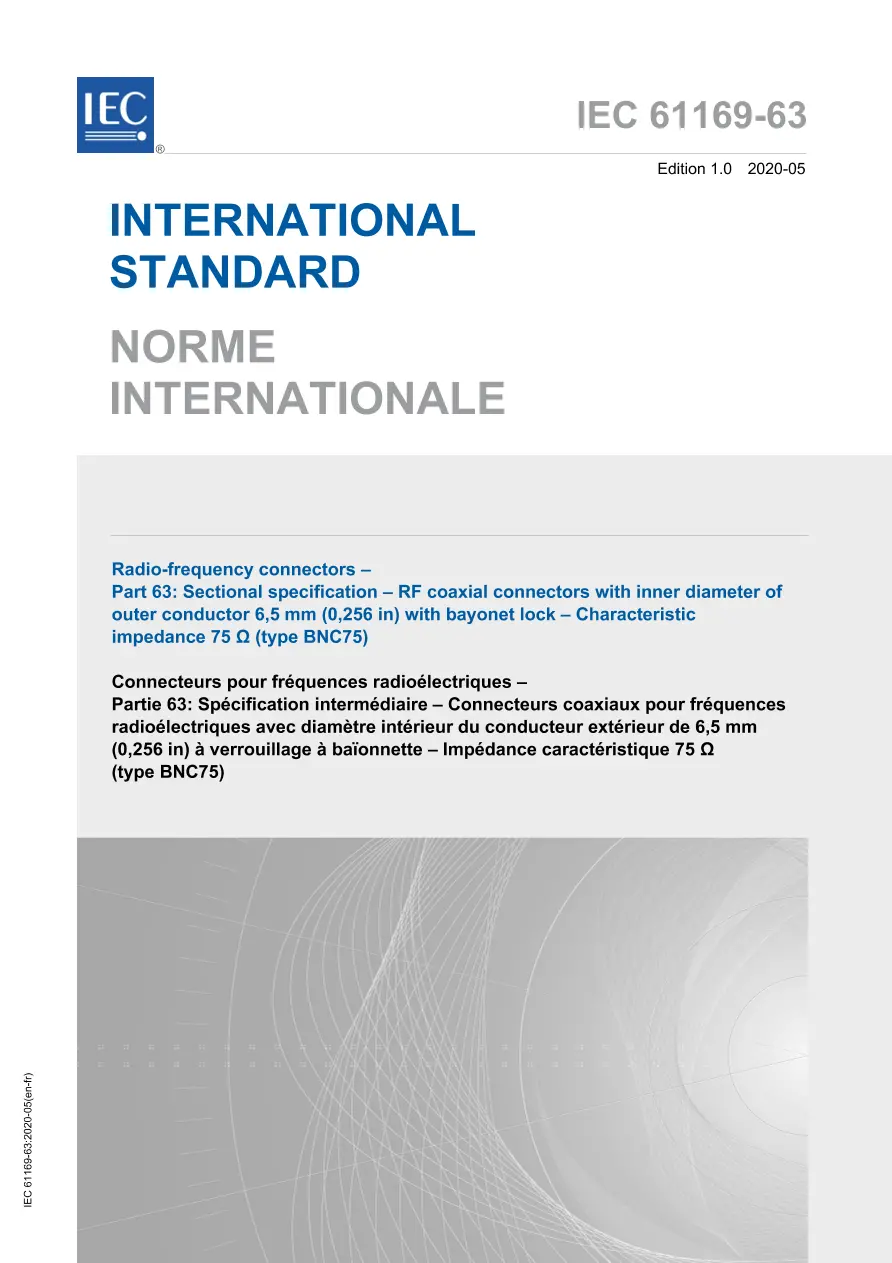

IEC 61169-63 Ed. 1.0 b:2020

Radio frequency connectors - Part 63: Sectional specification - RF coaxial connectors with inner diameter of outer conductor 6,5 mm (0,256 in) with bayonet lock - Characteristic impedance 75 ohms (type BNC75)

International Electrotechnical Commission , 05/26/2020

Publisher: IEC

File Format: PDF

$117.00$234.00

Description

Standard By:International Electrotechnical Commission , 05/26/2020

Published:05/26/2020

Pages:58

File Size:1 file , 2.9 MB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 61169-63:2020 which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for RF coaxial connectors which can preferably be used with RF cables 60096 IEC 50-3 of IEC 60096-2. These connector patterns are for low power, quick connect/disconnect applications using a bayonet type coupling mechanism and are commonly known as type "BNC" with characteristic impedance 75 W.
