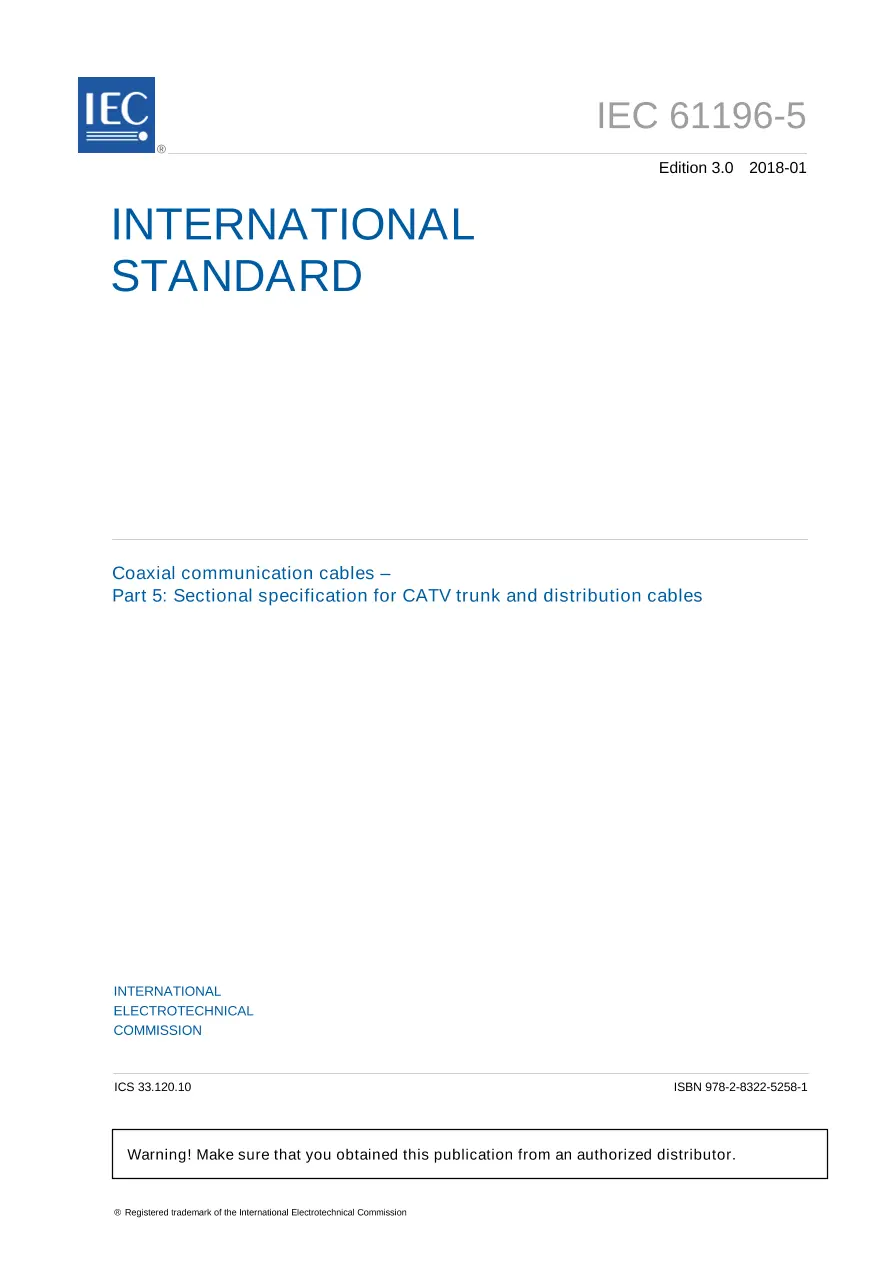

IEC 61196-5 Ed. 3.0 en:2018

Coaxial communication cables - Part 5: Sectional specification for CATV trunk and distribution cables

International Electrotechnical Commission , 01/12/2018

Publisher: IEC

File Format: PDF

$44.00$89.00


IEC 61196-5:2018(E), which is a sectional specification, applies to coaxial cables for analogue and digital one- and two-way signal transmission, e.g. for cable networks for television signals, sound signals and interactive services in accordance with IEC 60728-1, IEC 60728-1-1, IEC 60728-101, IEC 60728-10, ISO/IEC 11801-1 and ISO/IEC 11801-4. This includes also the transmission of BCT signals provided by a CATV, MATV or SMATV cable networks.
This document specifies the test procedures and requirements for trunk and distribution cables for temperatures between −40 °C and +65 °C and in the frequency range of 5 MHz to 2 000 MHz.

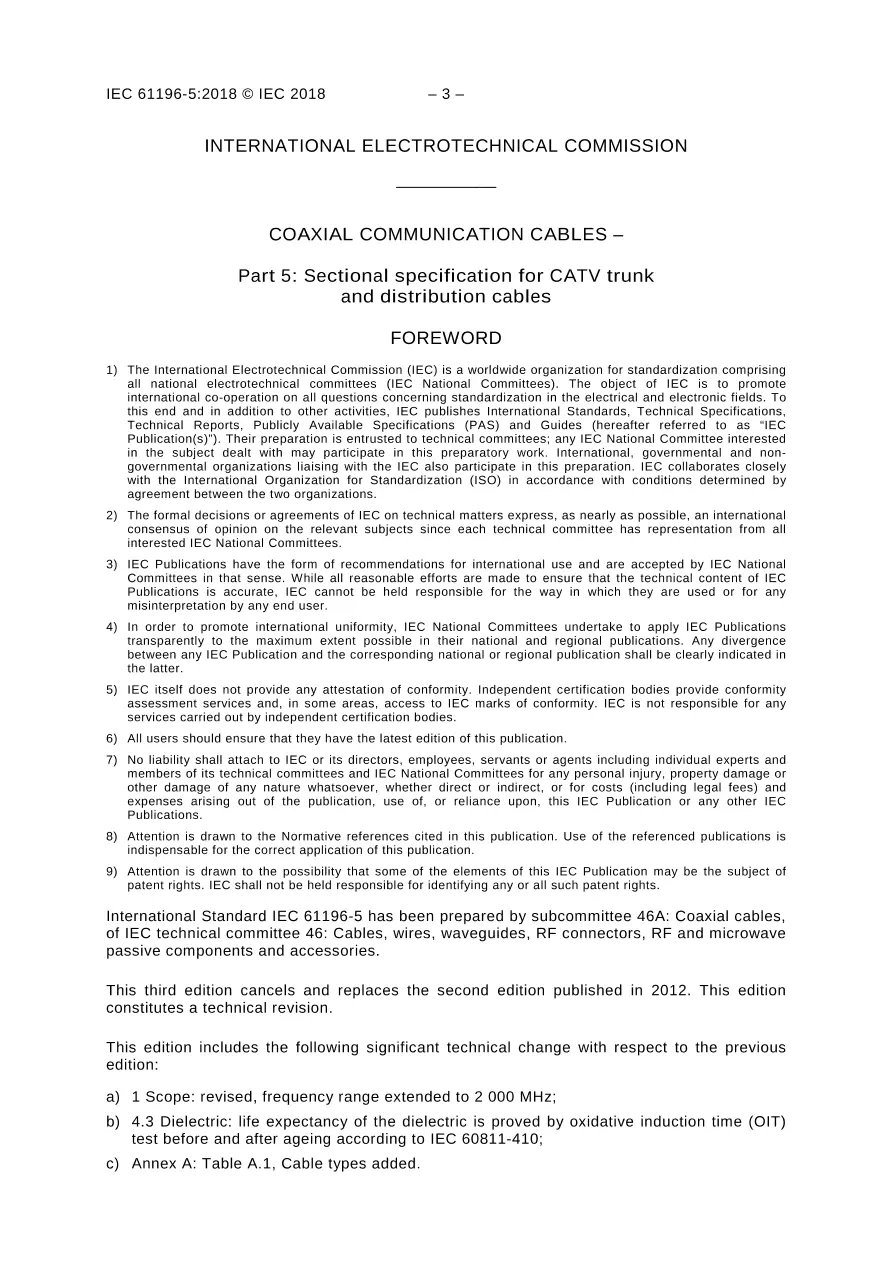

This third edition cancels and replaces the second edition published in 2012. This edition constitutes a technical revision.
This edition includes the following significant technical change with respect to the previous edition:
a) 1 Scope: revised, frequency range extended to 2 000 MHz;
b) 4.3 Dielectric: life expectancy of the dielectric is proved by oxidative induction time (OIT) test before and after ageing according to IEC 60811-410;
c) Annex A: Table A.1, Cable types added.

IEC 61196-5 Ed. 3.0 en:2018 History

IEC 61196-5 Ed. 4.0 en:2022
IEC 61196-5 Ed. 3.0 en:2018
IEC 61196-5 Ed. 2.0 en:2012
IEC 61196-5-1 Ed. 2.0 en:2012
IEC 61196-5 Ed. 1.0 b:2007
IEC 61196-5-1 Ed. 1.0 b:2007
