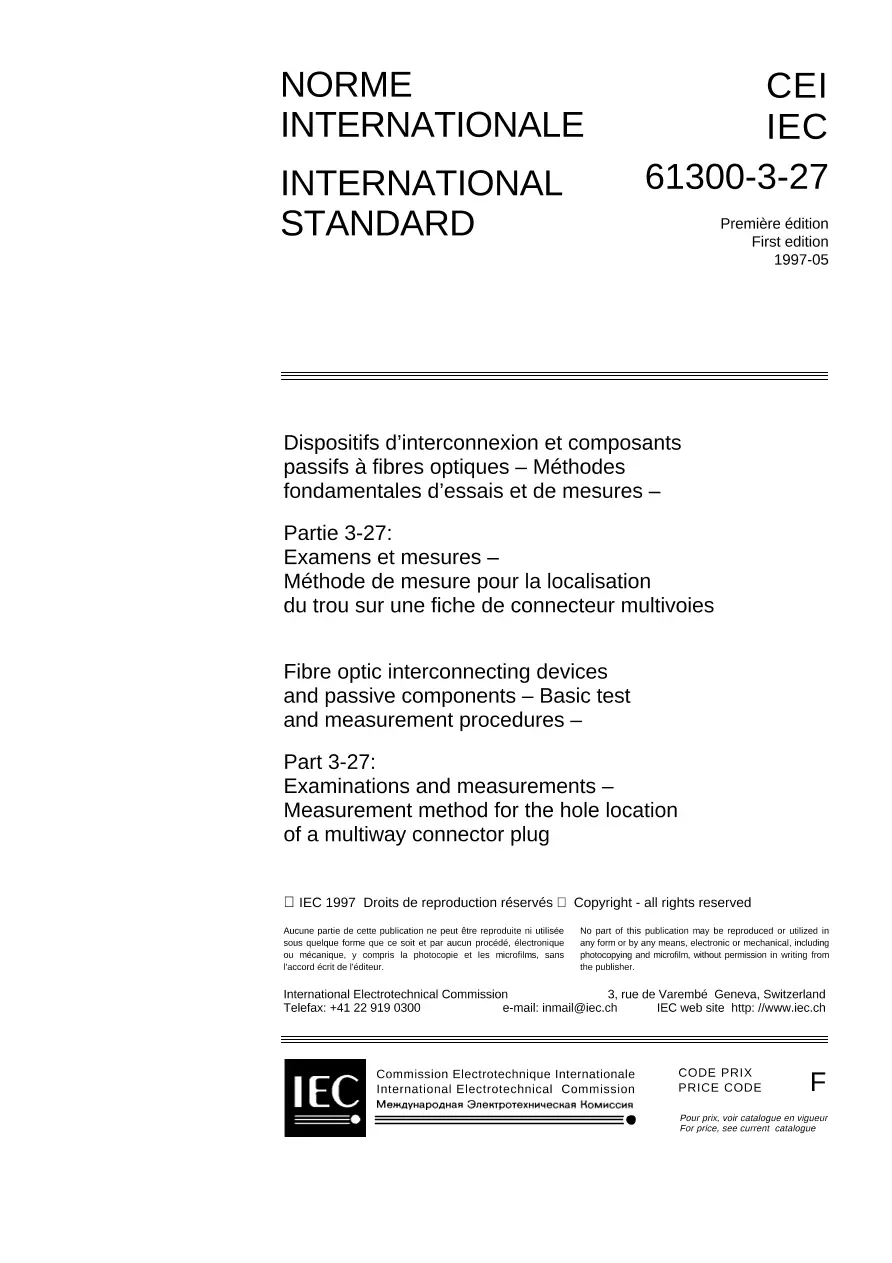

IEC 61300-3-27 Ed. 1.0 b:1997

Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 3-27: Examinations and measurements - Measurement method for the hole location of a multiway connector plug

International Electrotechnical Commission , 05/23/1997

Publisher: IEC

File Format: PDF

$12.00$25.00

Description

Standard By:International Electrotechnical Commission , 05/23/1997

Published:05/23/1997

Pages:11

File Size:1 file , 100 KB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

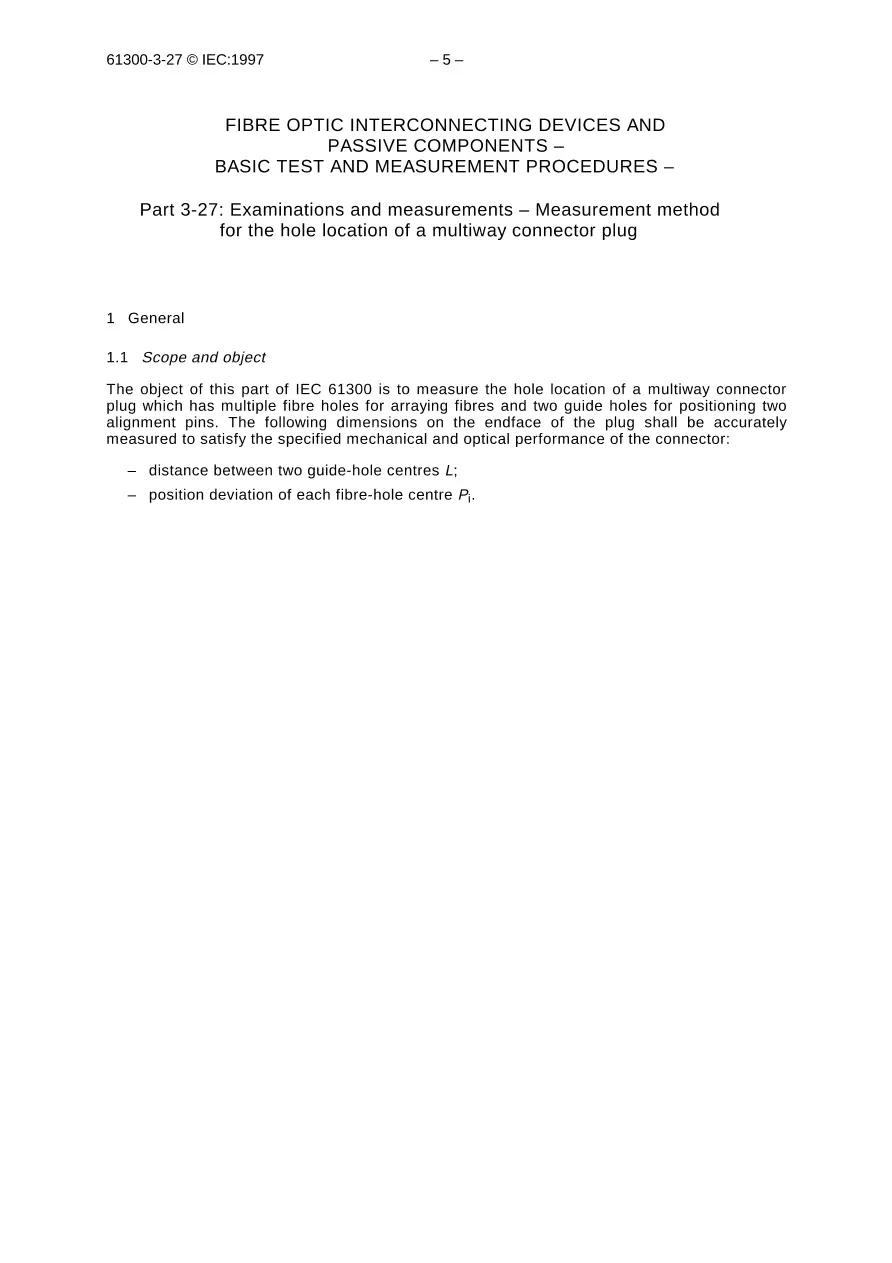

IEC 61300-3-27:1997 is to measure the hole location of a multiway connector plug which has multiple fibre holes for arraying fibres and two guide holes for positioning two alignment pins. The following dimensions on the endface of the plug shall be accurately measured to satisfy the specified mechanical and optical performance of the connector:
â distance between two guide-hole centres L;
â position deviation of each fibre-hole centre P_i.
