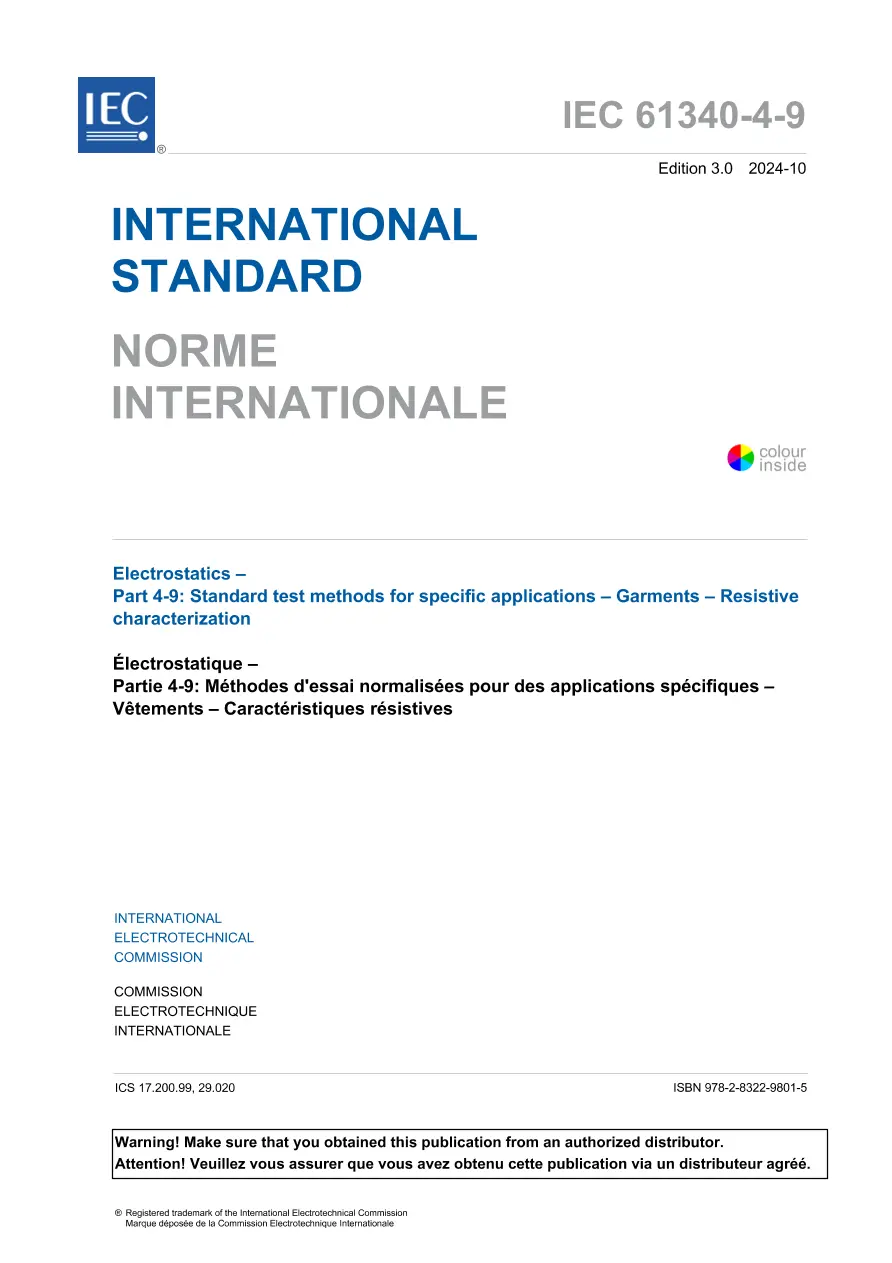

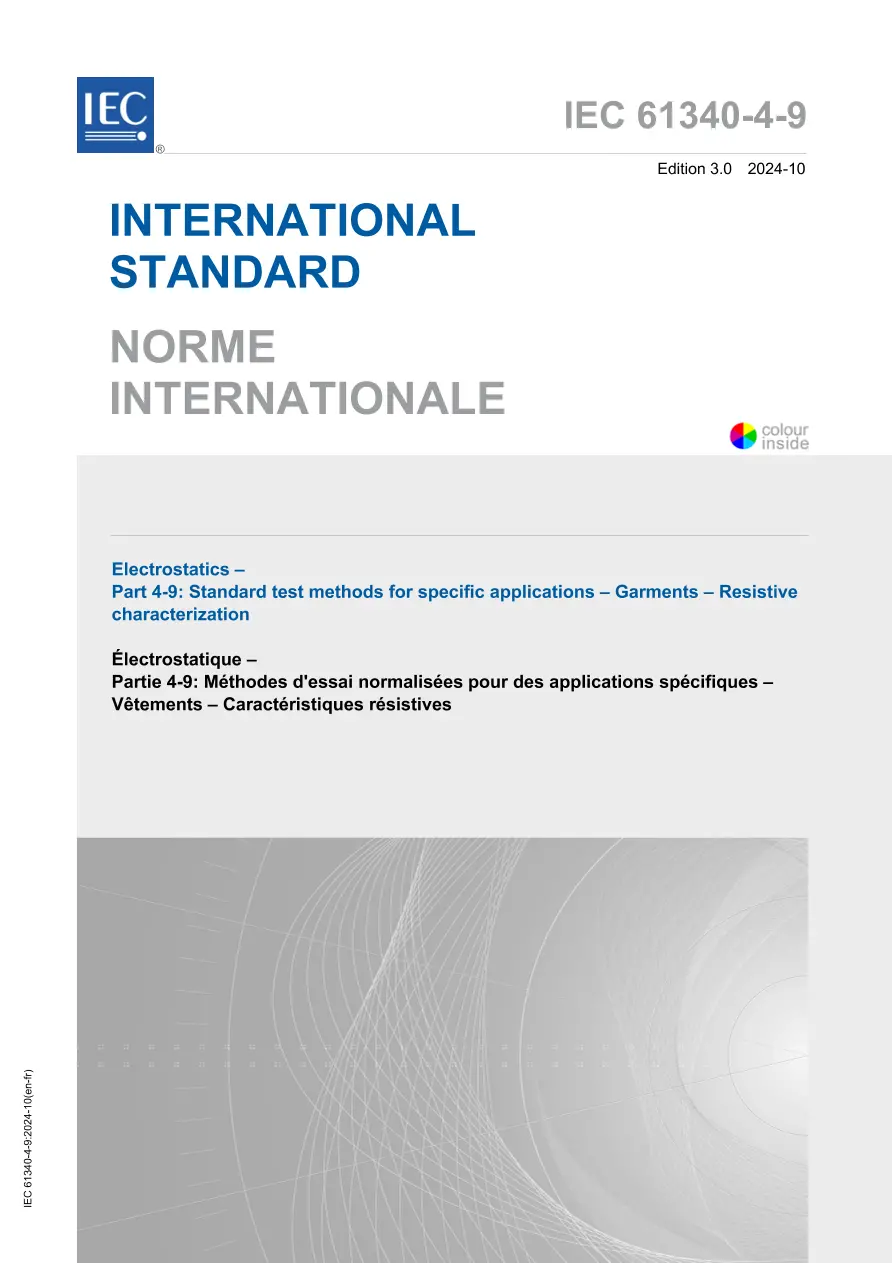

IEC 61340-4-9 Ed. 3.0 b:2024

Electrostatics – Part 4-9: Standard test methods for specific applications – Garments – Resistive characterization

International Electrotechnical Commission , 10/01/2024

Publisher: IEC

File Format: PDF

$96.00$193.00


This part of IEC 61340 provides test methods for measuring the electrical resistance of garments used for static control applications. These test methods can be used for evaluating outer garments that are homogenously conductive or homogeneously dissipative, or that utilize surface conductive or surface dissipative components or elements.

NOTE It is possible that the test methods defined in this document will not be able to measure materials with buried conductive layers.

The resistance point-to-point test method tests the electrical resistance between the two sleeves, any two panels or any two electrically interconnected components of the static control garment, including the electrical resistance across the seams and cuffs of the garment as applicable.

An alternate sleeve-to-sleeve test method is described, using clamps to hang a garment.

Static control garments that electrically bond to the wearer and provide a path to ground from the wearer are evaluated using the resistance point-to-point test method, the resistance point-to-groundable point test method, as well as a system test to determine the resistance from the person through the garment to the groundable point of the garment system.

A band resistance measurement test is provided in IEC 61340-4-6 which can be used for garments so equipped with cuffs that are intended to perform the same function as a wrist strap band.

The system test with a person wearing a groundable static control garment system includes the ground cord that connects to the groundable point of the garment.

IEC 61340-4-9 Ed. 3.0 b:2024 History

IEC 61340-4-9 Ed. 3.0 b:2024
IEC 61340-4-9 Ed. 2.0 b:2016
IEC 61340-4-9 Ed. 1.0 b:2010
IEC 61340-4-9 Ed. 1.0 en:2010
