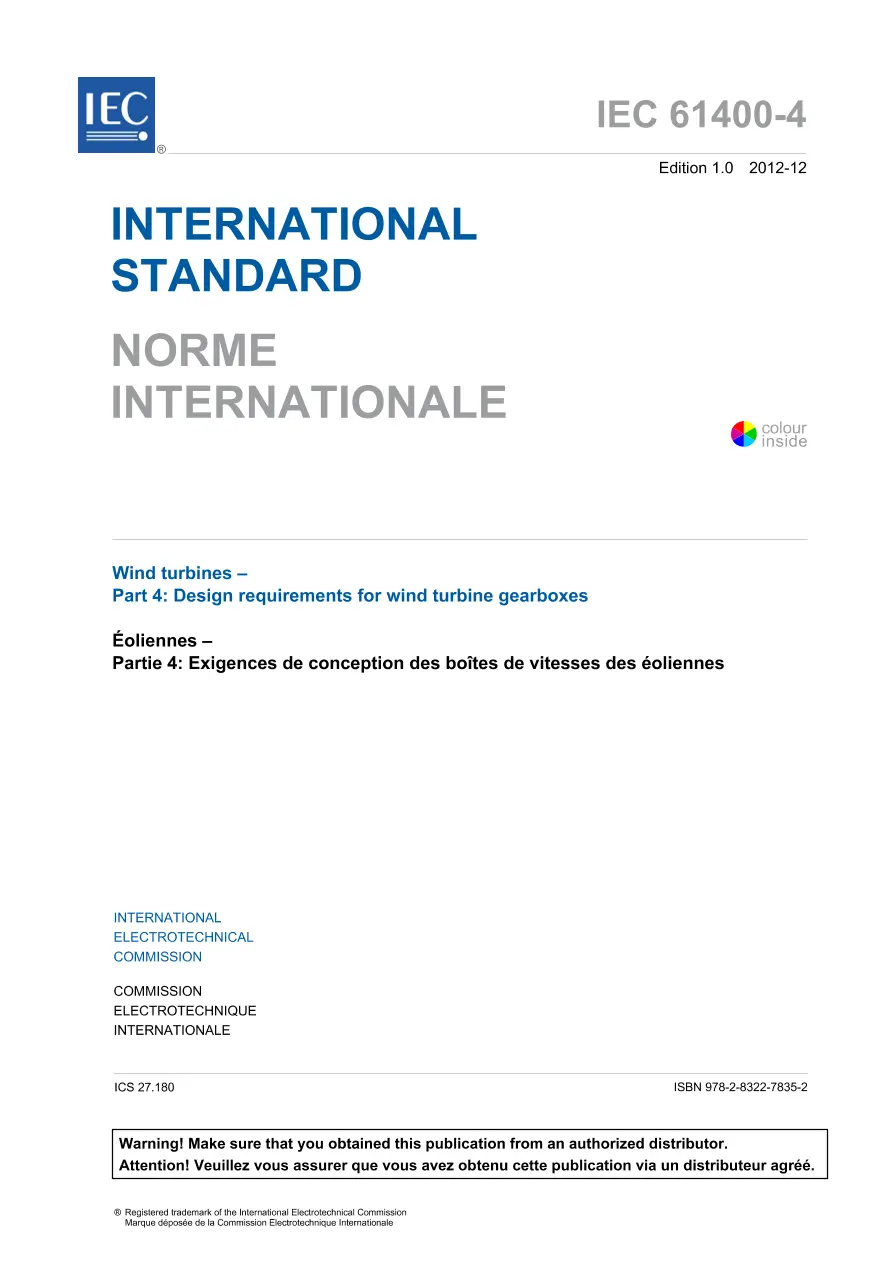

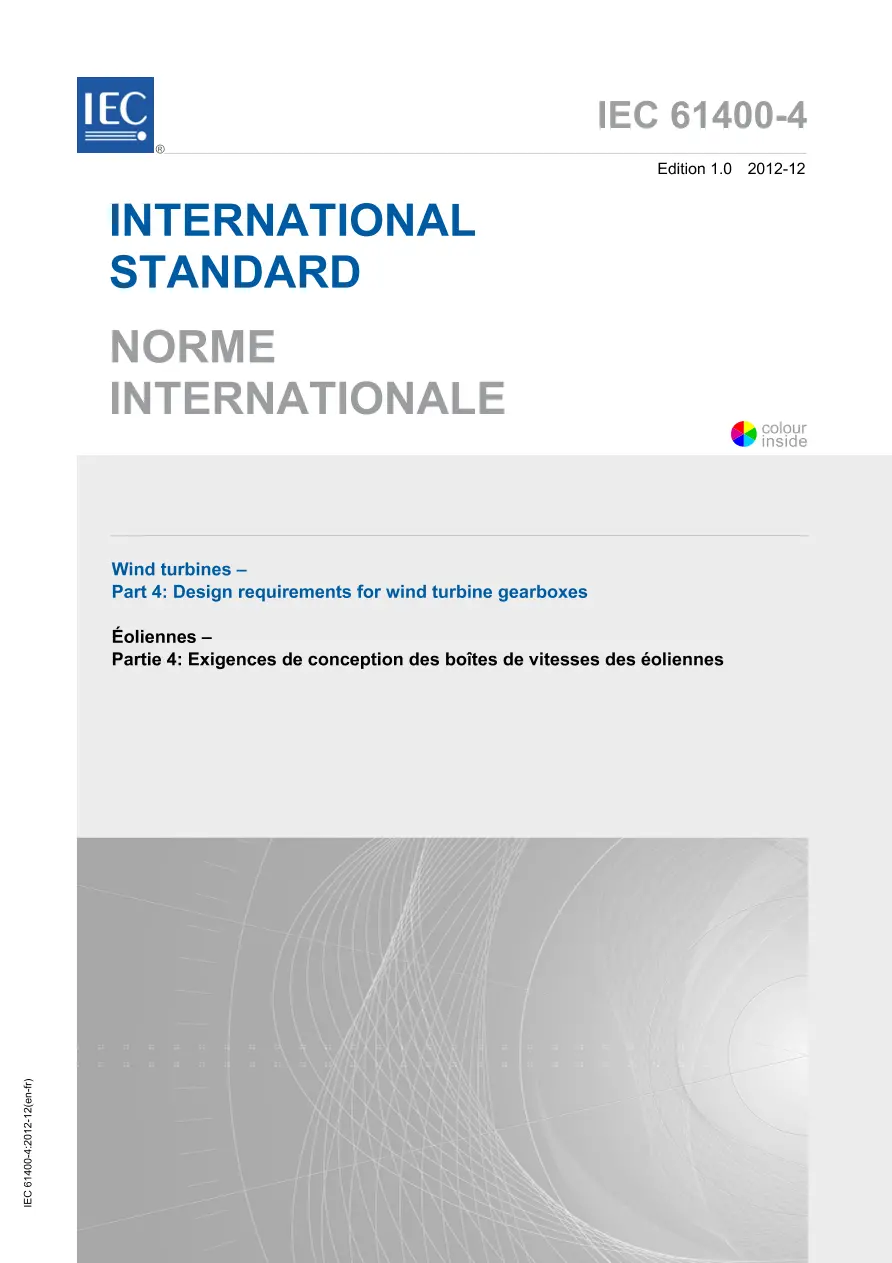

IEC 61400-4 Ed. 1.0 b:2012

Wind turbines - Part 4: Design requirements for wind turbine gearboxes

International Electrotechnical Commission , 12/04/2012

Publisher: IEC

File Format: PDF

$240.00$481.00


IEC 61400-4:2012 is applicable to enclosed speed increasing gearboxes for horizontal axis wind turbine drivetrains with a power rating in excess of 500 kW. This standard applies to wind turbines installed onshore or offshore. It provides guidance on the analysis of the wind turbine loads in relation to the design of the gear and gearbox elements. The gearing elements covered by this standard include such gears as spur, helical or double helical and their combinations in parallel and epicyclic arrangements in the main power path. The standard is based on gearbox designs using rolling element bearings. Also included is guidance on the engineering of shafts, shaft hub interfaces, bearings and the gear case structure in the development of a fully integrated design that meets the rigours of the operating conditions. Lubrication of the transmission is covered along with prototype and production testing. Finally, guidance is provided on the operation and maintenance of the gearbox.

IEC 61400-4 Ed. 1.0 b:2012 History

IEC 61400-4 Ed. 1.0 en:2012

IEC 61400-4 Ed. 1.0 en:2012

$240.00 $481.00

IEC 61400-4 Ed. 1.0 b:2012

IEC 61400-4 Ed. 1.0 b:2012

$240.00 $481.00
