IEC 62317-13 Ed. 1.0 b:2008

Ferrite cores - Dimensions - Part 13: PQ-cores for use in power supply applications

International Electrotechnical Commission , 04/09/2008

Publisher: IEC

File Format: PDF

$42.00$85.00

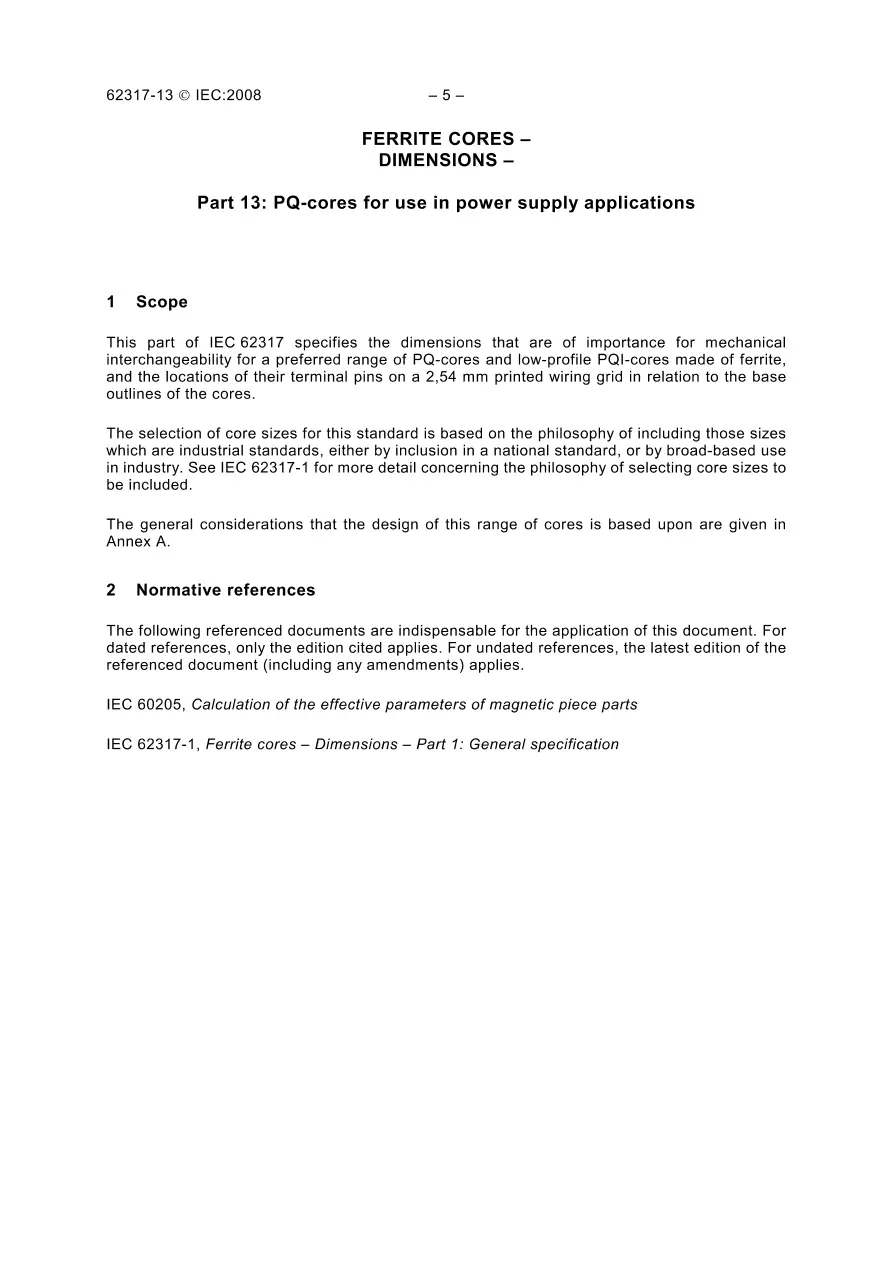

IEC 62317-13:2008 specifies the dimensions that are of importance for mechanical interchangeability for a preferred range of PQ-cores and low-profile PQI-cores made of ferrite, and the locations of their terminal pins on a 2,54 mm printed wiring grid in relation to the base outlines of the cores.

IEC 62317-13 Ed. 1.0 b:2008 History

IEC 62317-13 Ed. 2.0 b:2015
IEC 62317-13 Ed. 1.0 en:2008
IEC 62317-13 Ed. 1.0 b:2008
