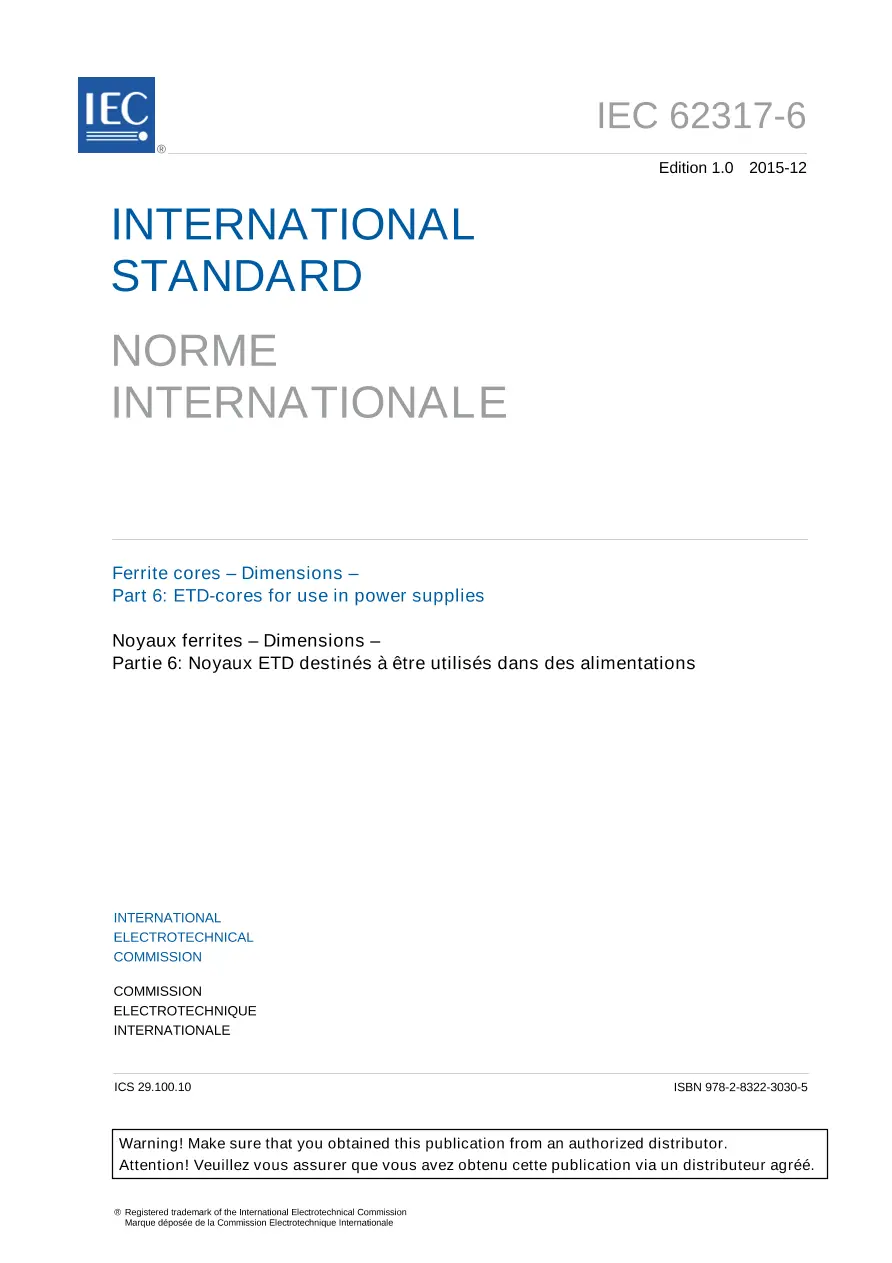

IEC 62317-6 Ed. 1.0 b:2015

Ferrite cores - Dimensions - Part 6: ETD-cores for use in power supplies

International Electrotechnical Commission , 12/04/2015

Publisher: IEC

File Format: PDF

$41.00$82.00

Description

Standard By:International Electrotechnical Commission , 12/04/2015

Published:12/04/2015

Pages:29

File Size:1 file , 640 KB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

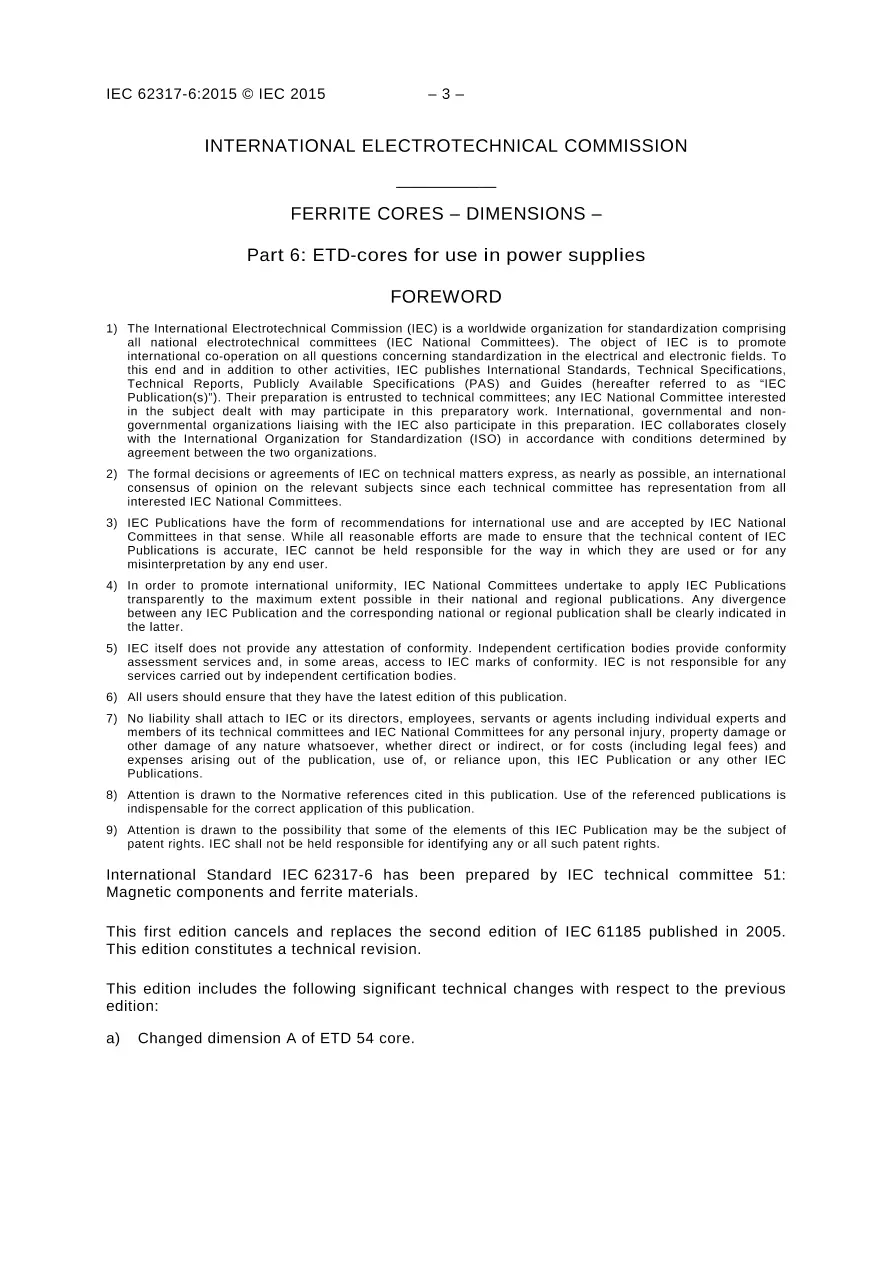

IEC 62317-6:2015 specifies the dimensions that are of importance for mechanical interchangeability for ETD-cores made of ferrite, the essential dimensions of coil formers to be used with them, and the effective parameter values to be used in calculations involving them. This first edition cancels and replaces the second edition of IEC 61185 published in 2005. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- Changed dimension A of ETD 54 core.

IEC 62317-6 Ed. 1.0 b:2015

Ferrite cores - Dimensions - Part 6: ETD-cores for use in power supplies
