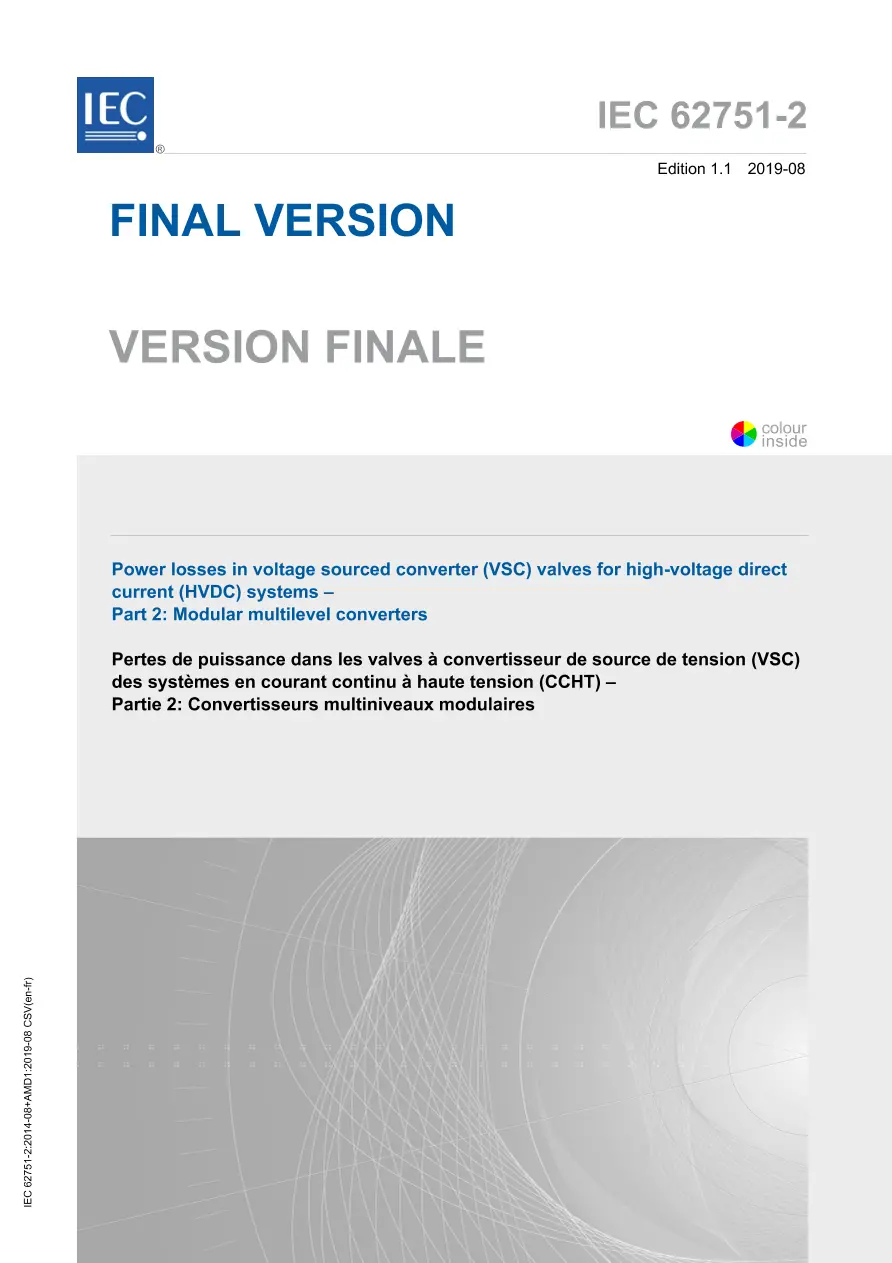

IEC 62751-2 Ed. 1.1 b:2019

Power losses in voltage sourced converter (VSC) valves for high-voltage direct current (HVDC) systems - Part 2: Modular multilevel converters CONSOLIDATED EDITION

International Electrotechnical Commission , 08/23/2019

Publisher: IEC

File Format: PDF

$265.00$531.00


IEC 62751-2:2019 gives the detailed method to be adopted for calculating the power losses in the valves for an HVDC system based on the "modular multi-level converter", where each valve in the converter consists of a number of self-contained, two-terminal controllable voltage sources connected in series. It is applicable both for the cases where each modular cell uses only a single turn-off semiconductor device in each switch position, and the case where each switch position consists of a number of turn-off semiconductor devices in series (topology also referred to as "cascaded two-level converter"). The main formulae are given for the two-level "half-bridge" configuration but guidance is also given as to how to extend the results to certain other types of MMC building block configuration.

IEC 62751-2 Ed. 1.1 b:2019 History

IEC 62751-2 Ed. 1.2 b:2023

IEC 62751-2 Ed. 1.2 b:2023

$291.00 $582.00

IEC 62751-2 Ed. 1.1 b:2019

IEC 62751-2 Ed. 1.1 b:2019

$265.00 $531.00

IEC 62751-2 Ed. 1.0 b:2014

IEC 62751-2 Ed. 1.0 b:2014

$183.00 $367.00
