IEEE 2401-2019

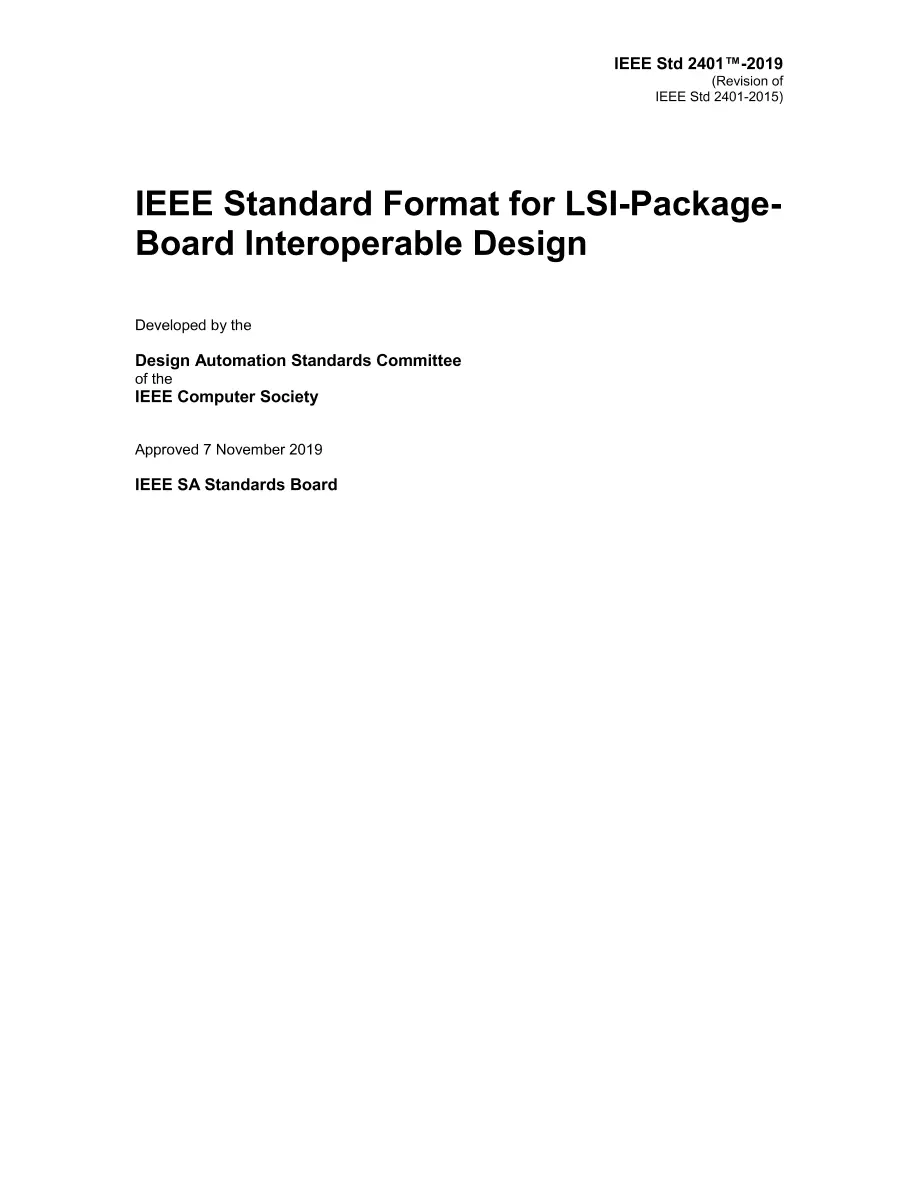

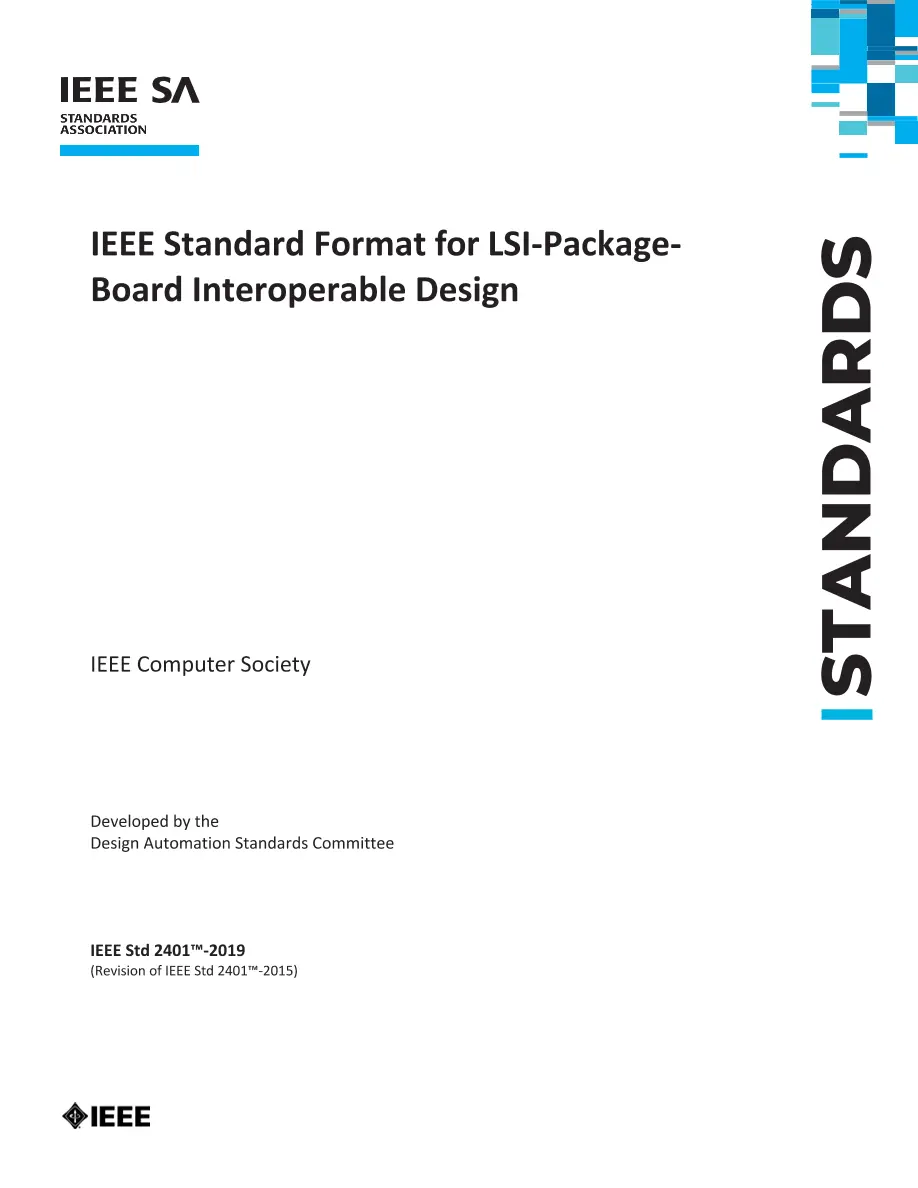

IEEE Standard Format for LSI-Package-Board Interoperable Design

IEEE , 01/27/2020

Publisher: IEEE

File Format: PDF

$102.00$205.00


IEEE 2401-2019 PDF

This standard defines a common interoperable format that will be used for the design of a) large-scale integration (LSI), b) packages for such LSI, and c) printed circuit boards on which the packaged LSIs are interconnected. Collectively, such designs are referred to as LSI-Package-Board (LPB) designs. The format provides a common way to specify information/data about the project management, netlists, components, design rules, and geometries used in LPB designs. The general purpose of this standard is to develop a common format that LPB design tools can use to exchange information/data seamlessly, as opposed to having to work with multiple different input and output formats. Revision Standard - Active. A method is provided for specifying a common interoperable format for electronic systems design. The format provides a common way to specify information/data about the project management, netlists, components, design rules, and geometries used in the large-scale integration-package-board designs. The method provides the ability to make electronic systems a key consideration early in the design process; design tools can use it to seamlessly exchange information/data.

IEEE 2401-2019 History

IEEE 2401-2019

IEEE 2401-2019

$102.00 $205.00

IEEE 2401-2015

IEEE 2401-2015

$103.00 $206.00
