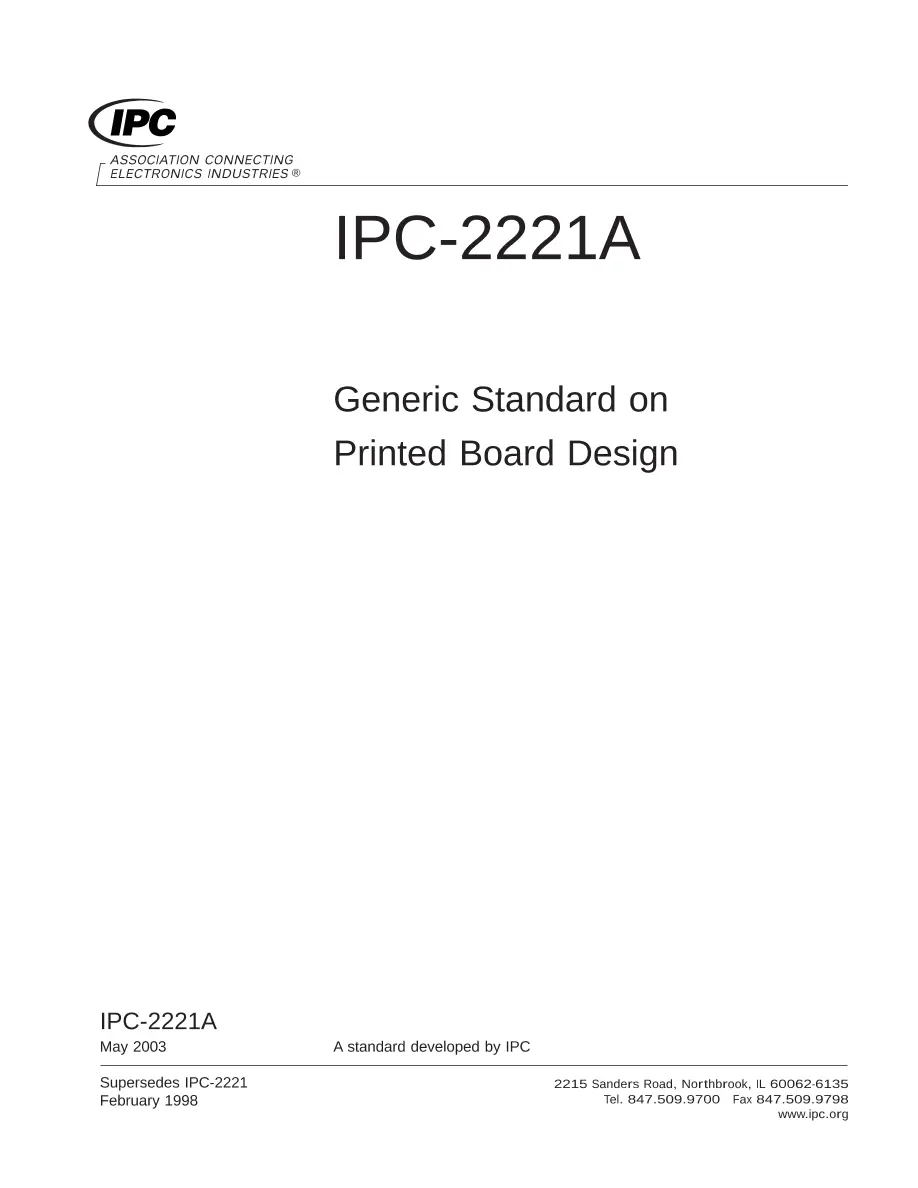

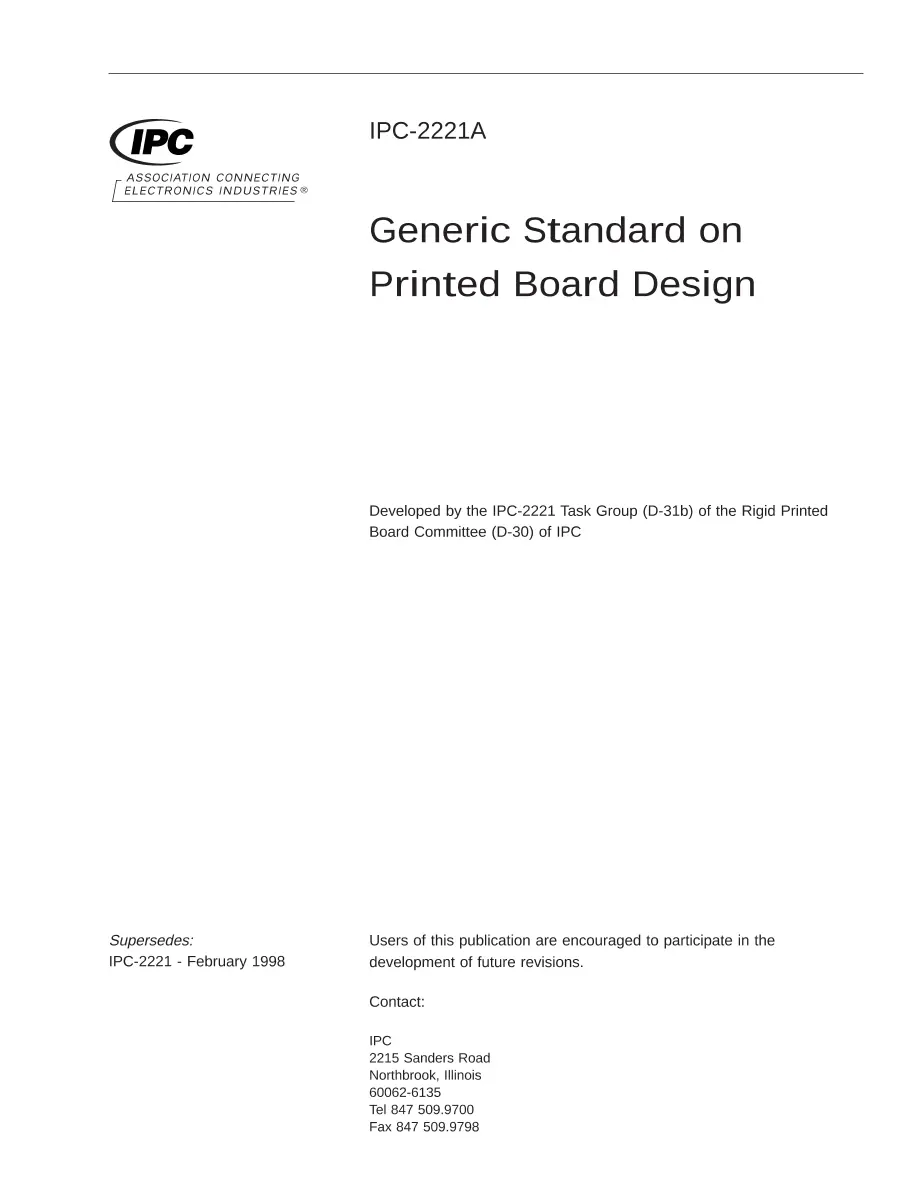

IPC 2221A

Generic Standard on Printed Board Design

Association Connecting Electronics Industries , 05/01/2003

Publisher: IPC

File Format: PDF

$40.00$80.00


IPC-2221A is the foundation design standard for all documents in the IPC-2220 series. It establishes the generic requirements for the design of printed boards and other forms of component mounting or inteconnecting structures, whether single-sided, double-sided or multilayer. Among the many updates to Revision A are new criteria for surface plating, internal and external foil thicknesses, component placement and hole tolerances Expanded coverage is provided for material properties, dimensioning and tolerancing rules and via structures, as well as updated coupon designs for quality assurance.
