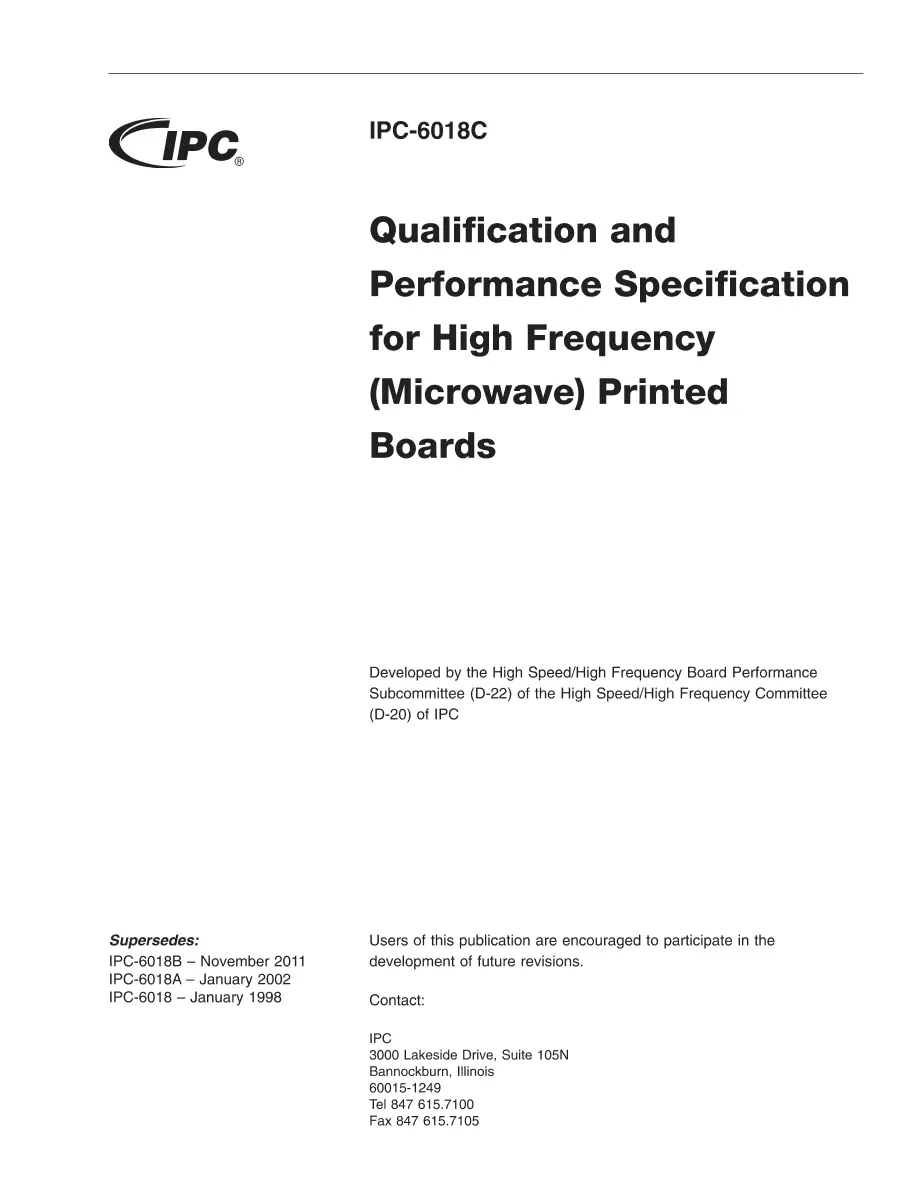

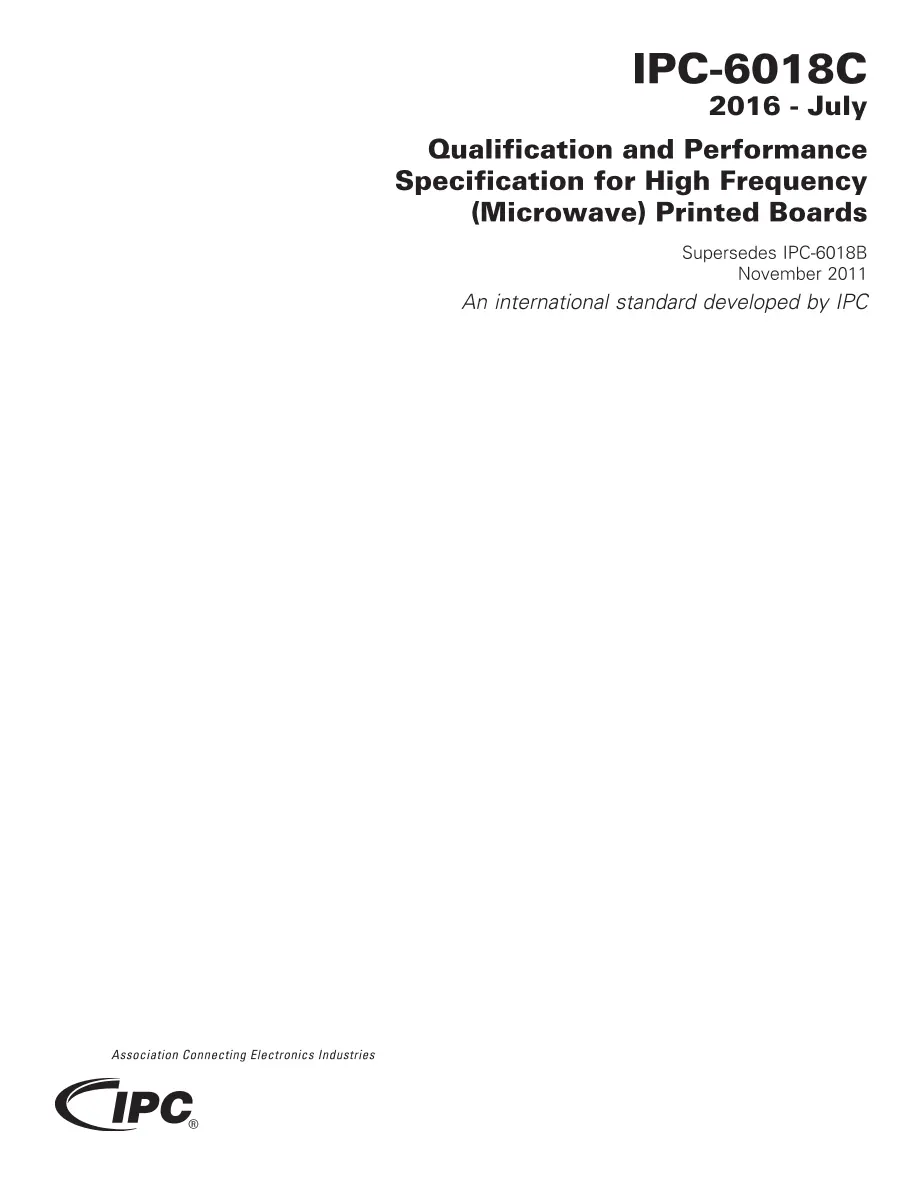

IPC 6018C

Qualification and Performance Specification for High Frequency (Microwave) Printed Boards

Association Connecting Electronics Industries , 07/01/2016

Publisher: IPC

File Format: PDF

$91.00$182.00


This specification covers qualification and performance of high frequency (microwave) boards, including single-sided, double-sided, with or without plated-through holes, multilayer with or without blind/buried vias and metal core boards. It addresses final finish and surface plating coating requirements, conductors, holes/vias, frequency of acceptance testing and quality conformance as well as electrical, mechanical and environmental requirements. Revision C incorporates many new requirements in areas such as HASL coatings, alternative surface finishes, edge plating, marking, microvia capture and target lands, copper cap plating of filled holes, copper filled microvias, PTFE smear and dielectric removal. For use with IPC-6011. Supersedes IPC-6018B and IPC-6016.

IPC 6018C History

IPC 6018D

IPC 6018D

$91.00 $182.00

IPC 6018C

IPC 6018C

$91.00 $182.00

IPC 6018B

IPC 6018B

$67.00 $135.00

IPC 6018A

IPC 6018A

$67.00 $135.00
