PIP STF05121

Anchor Fabrication and Installation into Concrete [Complete Revision]

Process Industry Practices , 10/01/2024

Publisher: PIP

File Format: PDF

$62.00$125.00

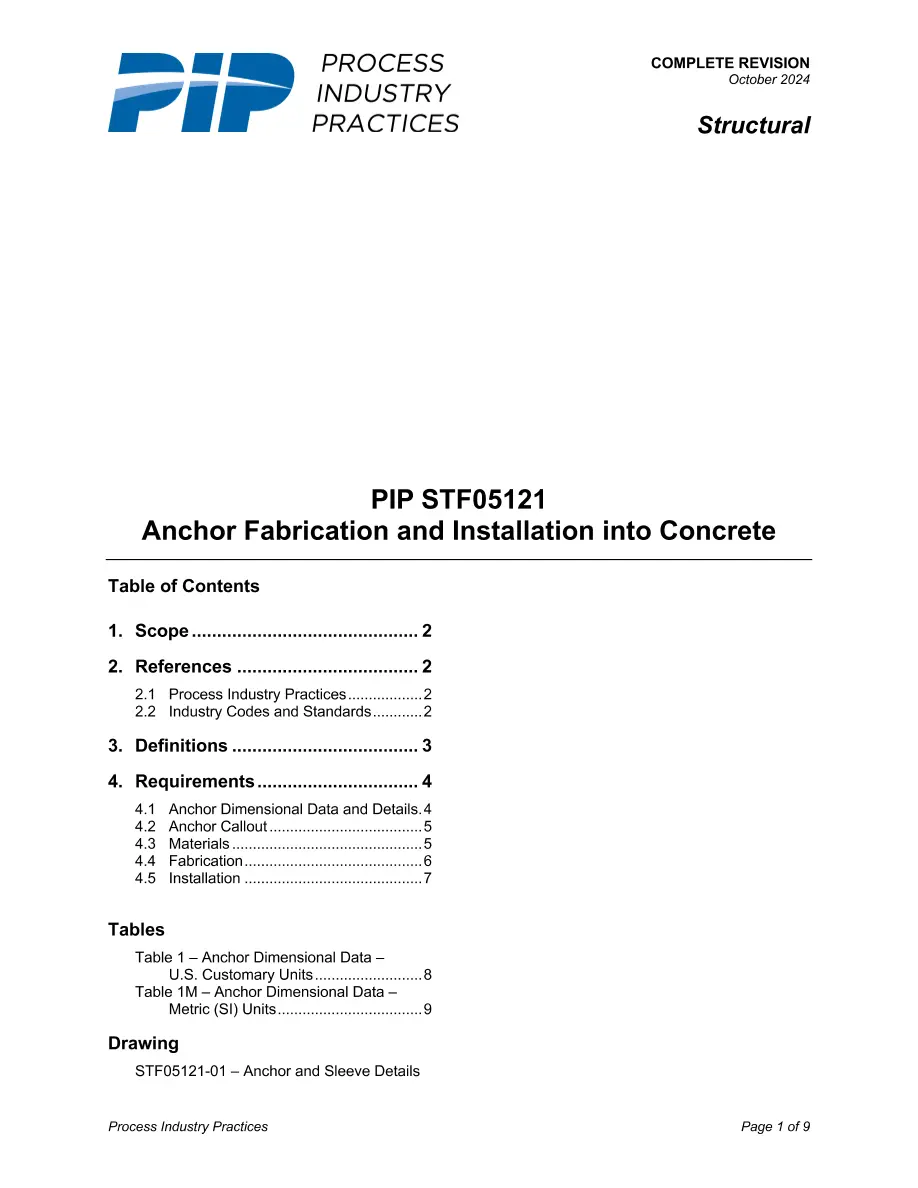

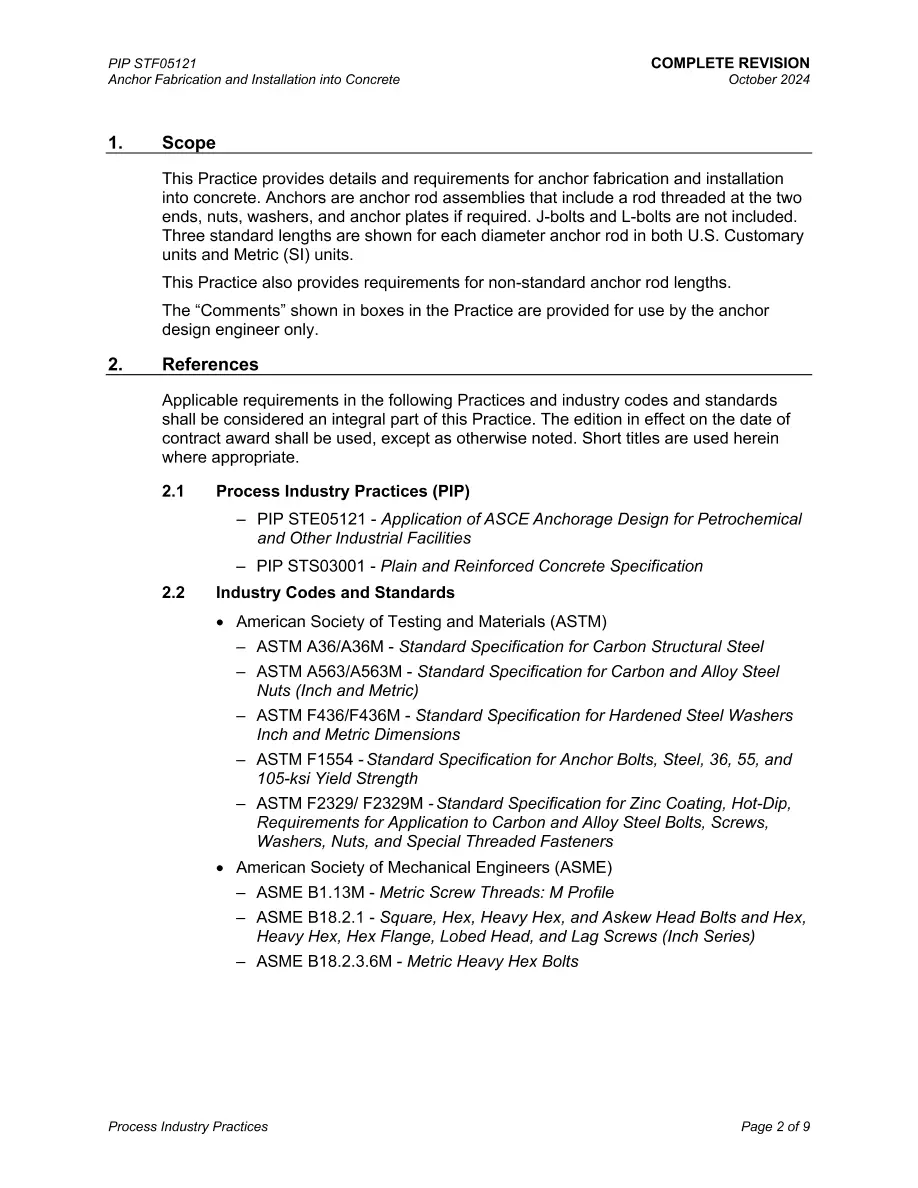

This Practice provides details and requirements for anchor fabrication and installation into concrete. Anchors are anchor rod assemblies that include a rod threaded at the two ends, nuts, washers, and anchor plates if required. J-bolts and L-bolts are not included. Three standard lengths are shown for each diameter anchor rod in both U.S. Customary units and Metric (SI) units. This Practice also provides requirements for non-standard anchor rod lengths. The “Comments” shown in boxes in the Practice are provided for use by the anchor design engineer only.
