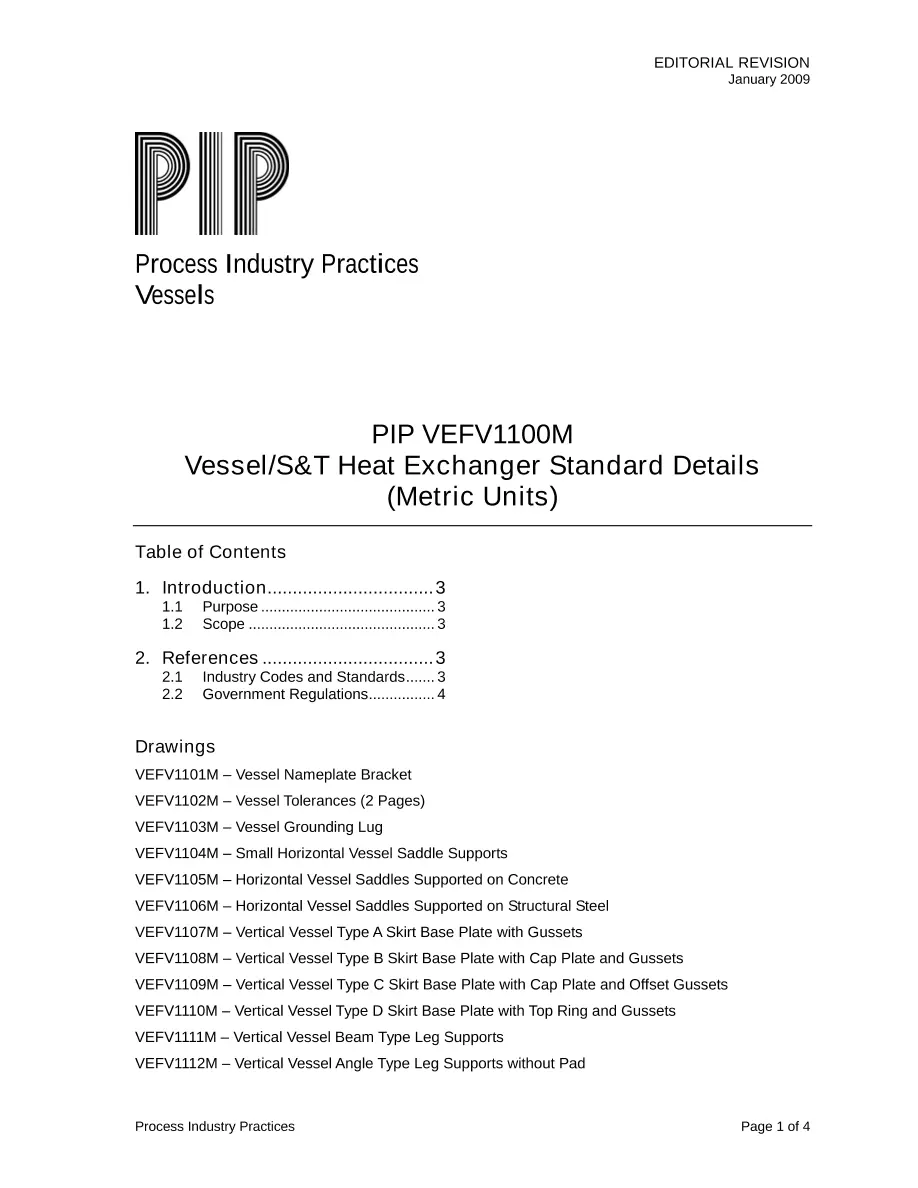

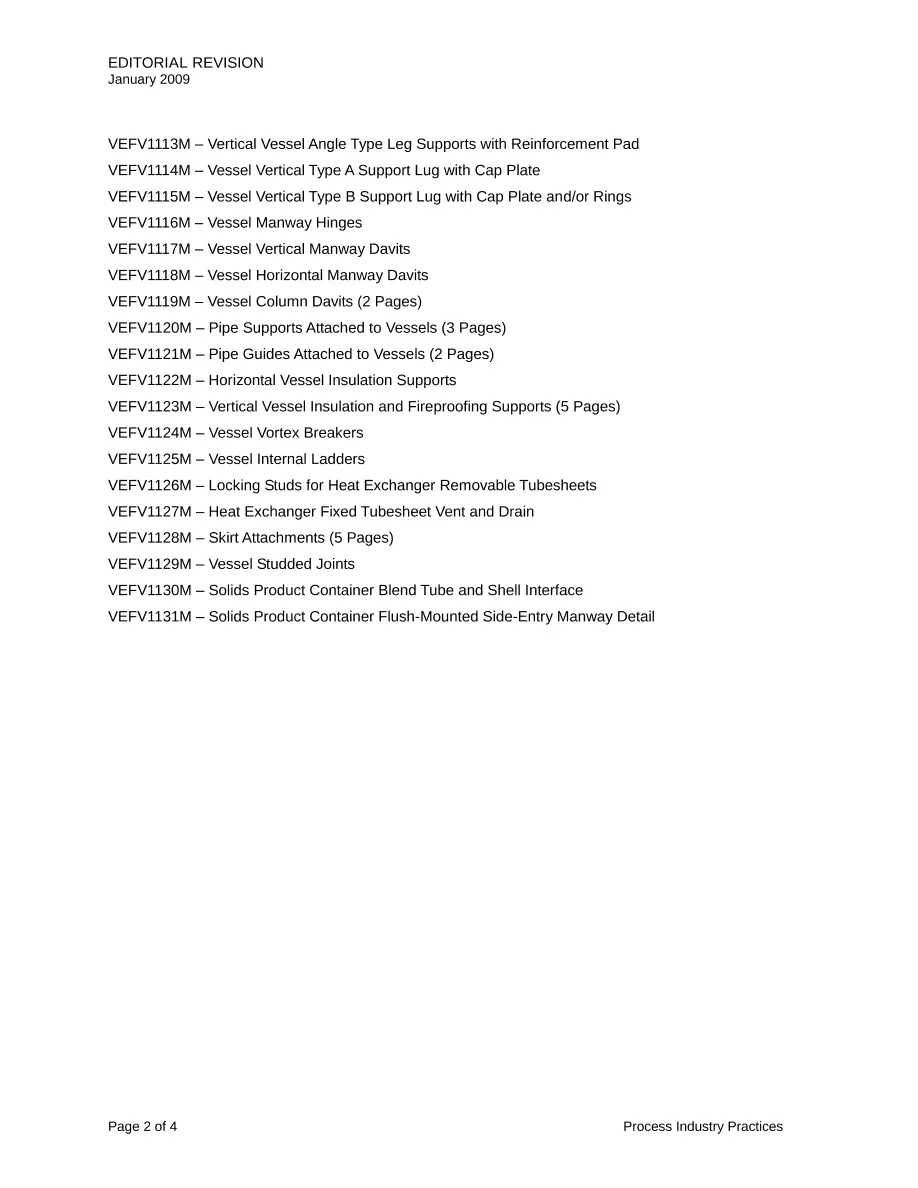

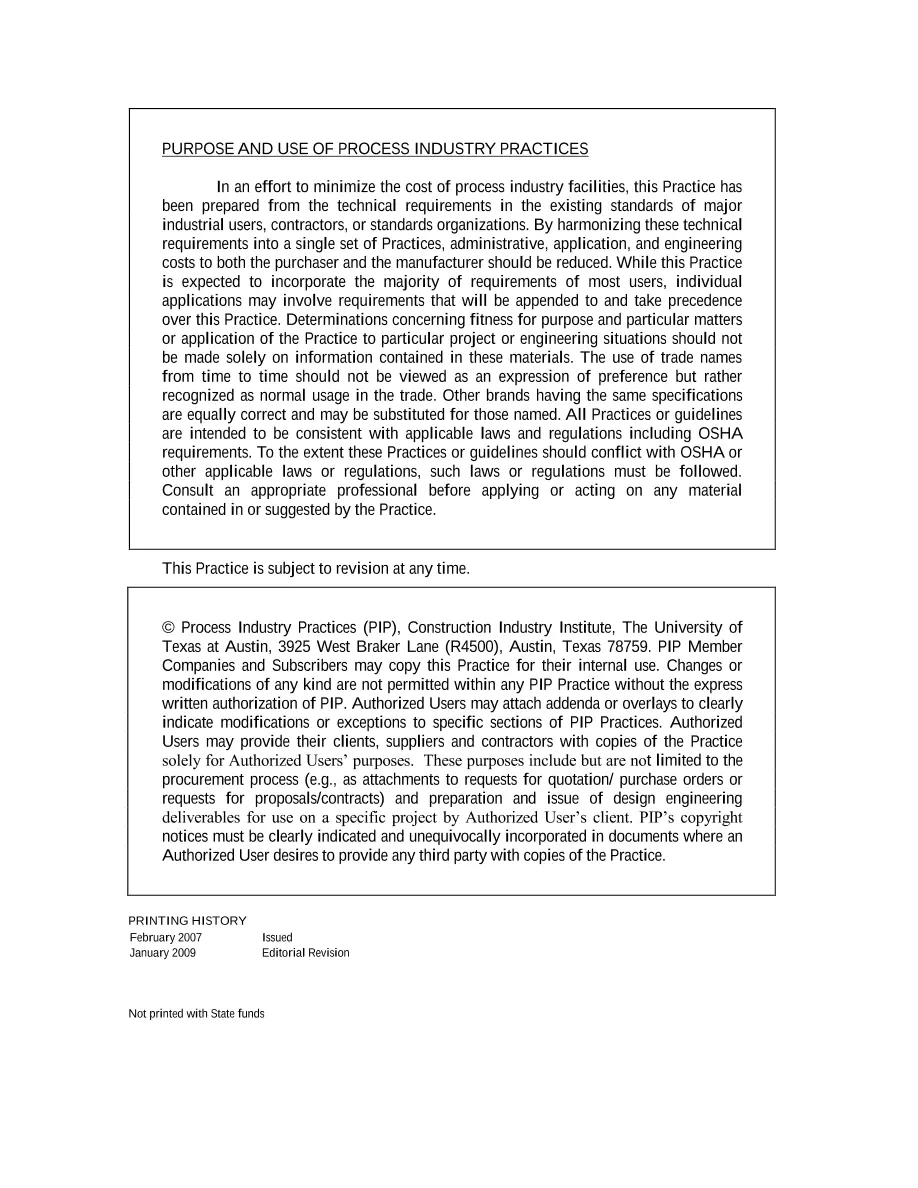

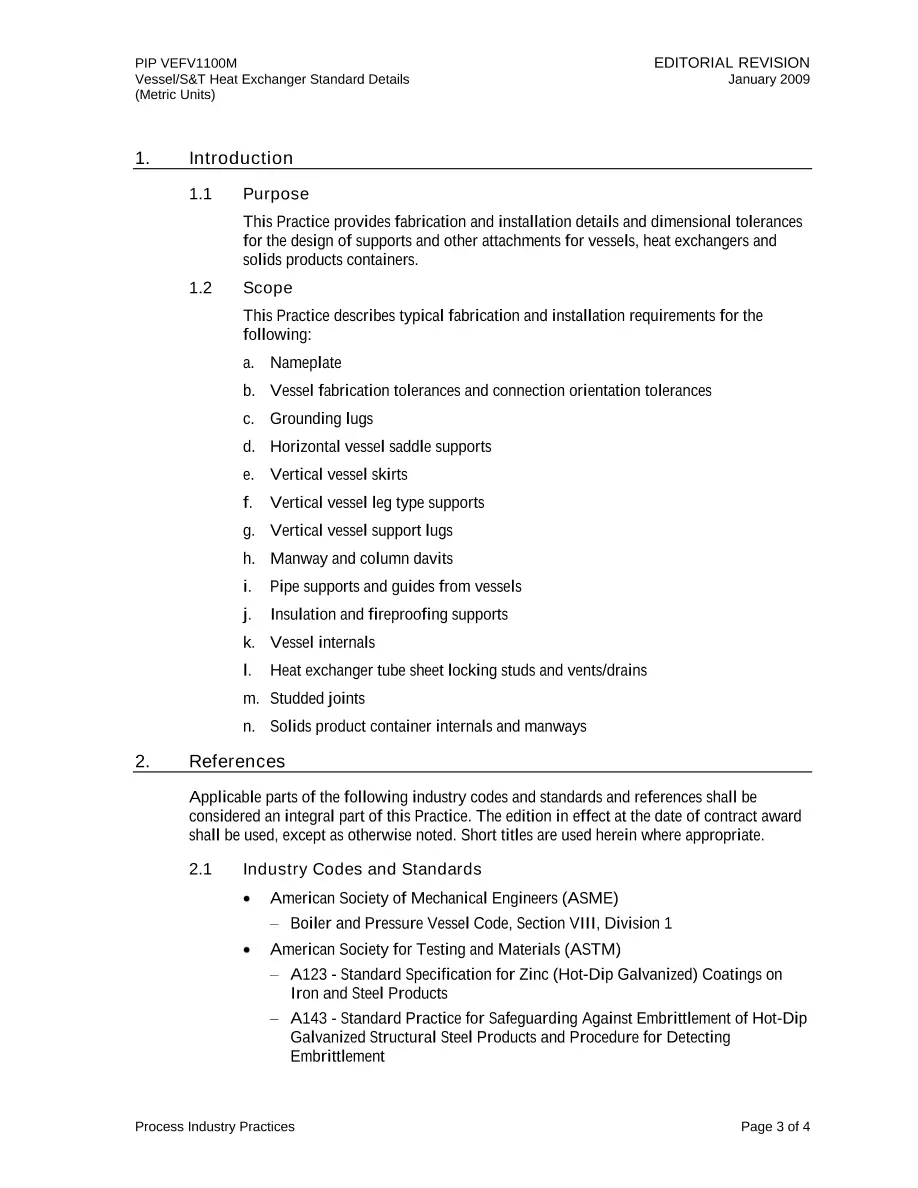

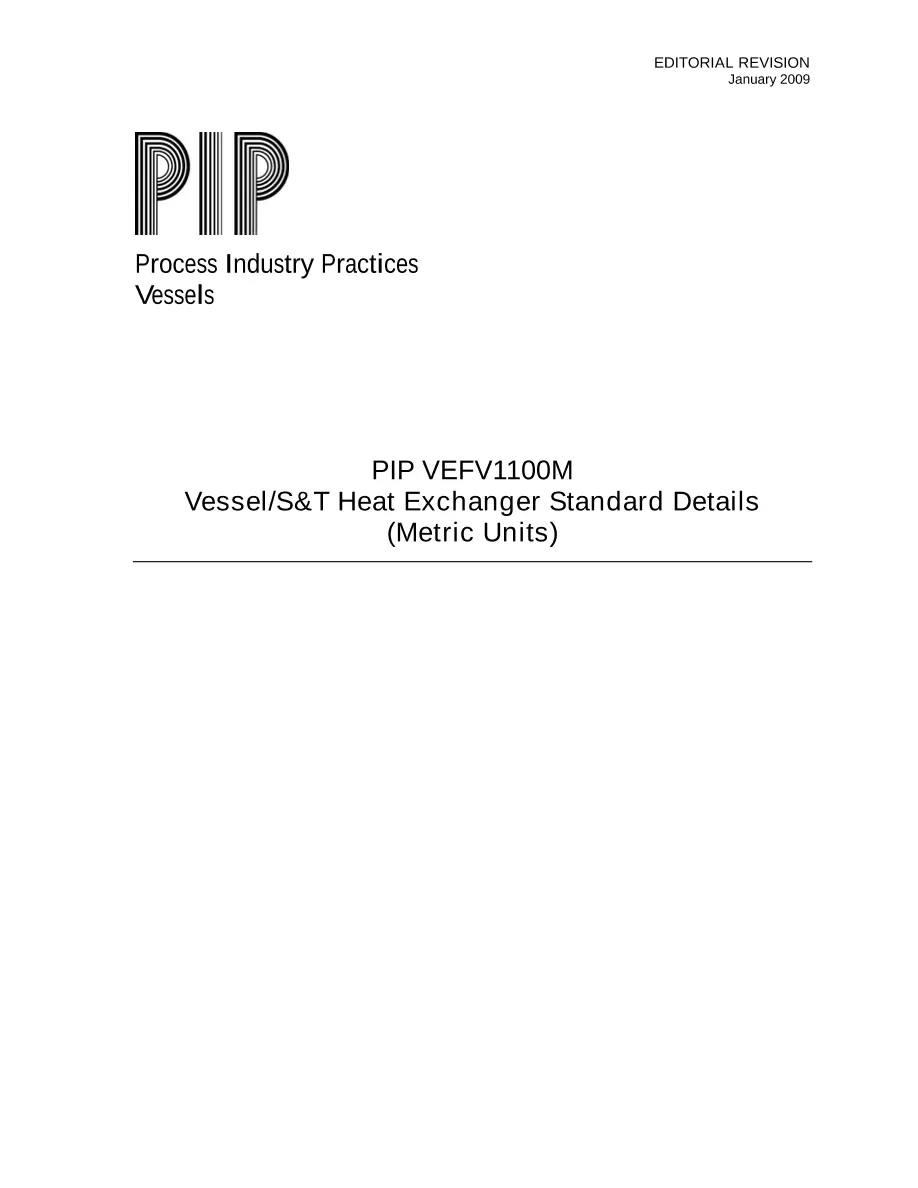

PDF Preview

PIP VEFV1100M

Vessel/S&T Heat Exchanger Standard Details (Metric Units)

Process Industry Practices , 01/01/2009

Publisher: PIP

File Format: PDF

$562.00$1,125.00


Standard By:Process Industry Practices , 01/01/2009
Published:01/01/2009
File Size:1 file , 1.6 MB
Language:English
Note:This product is unavailable in Ukraine, Russia, Belarus
This Practice includes all 29 standard details applicable to the fabrication and installation of vessels and shell-and-tube heat exchangers plus an index of standard details titles. Each detail is also assigned a PIP document number (VEFV1101 through VEFV1129) for ease of reference. The details in this Practice are in metric units. These details are mandatory when referenced in other PIP Practices. Those not referenced may be used at the discretion of the Designer (when specified on the Data Sheet) or at the Manufacturer's option. The details cover the more common accessories attached to vessels and heat exchangers.
