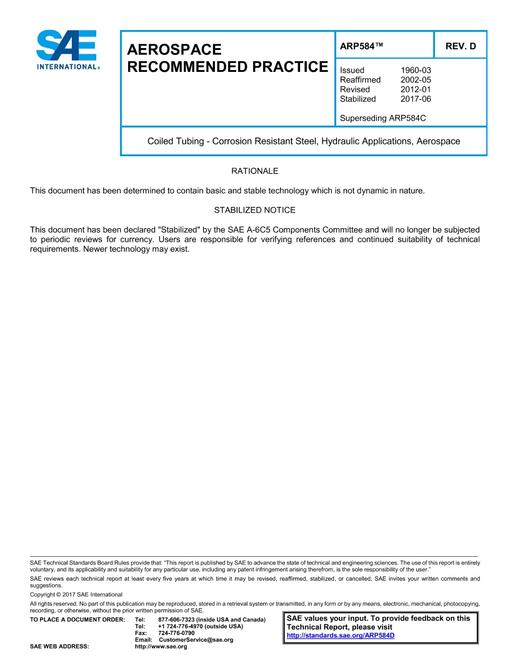

SAE ARP584D

Coiled Tubing - Corrosion Resistant Steel, Hydraulic Applications, Aerospace (Stabilized: Jun 2017)

SAE International , 06/16/2017

Publisher: SAE

File Format: PDF

$51.00$103.00


SAE ARP584D addresses the design, installation, and testing of coiled tube assemblies ranging from 1/4 inch (6.3 mm) to 1.0 inch (25 mm) diameter using CRES tubing per AMS-T-6845, unless otherwise approved by the Procuring Activity.

This ARP specifically details three different configurations of coiled tubing. These configurations should be compatible with pressure levels up to 3000 psi (20.7 MPa) upon the completion of the analysis for the actual stress and life requirement of the intended application. However, formal qualification tests are recommended to verify the satisfactory installation, clamping, and the life of each unique design.
