• SAE ARP6807A

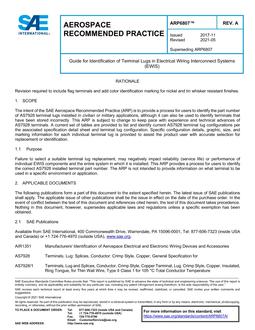

SAE ARP6807A

Guide for Identification of Terminal Lugs in Electrical Wiring Interconnect Systems (EWIS)

SAE International , 05/24/2021

Publisher: SAE

File Format: PDF

$56.00$113.00


The intent of the SAE Aerospace Recommended Practice (ARP) is to provide a process for users to identify the part number of AS7928 terminal lugs installed in civilian or military applications, although it can also be used to identify terminals that have been stored incorrectly. This ARP is subject to change to keep pace with experience and technical advances of AS7928 terminals. A current set of tables are provided to list and identify current AS7928 terminal lug configurations per the associated specification detail sheet and terminal lug configuration. Specific configuration details, graphic, size, and marking information for each individual terminal lug is provided to assist the product user with accurate selection for replacement or identification.

SAE ARP6807A History

SAE ARP6807A

SAE ARP6807A

$56.00 $113.00

SAE ARP6807

SAE ARP6807

$47.00 $94.00
