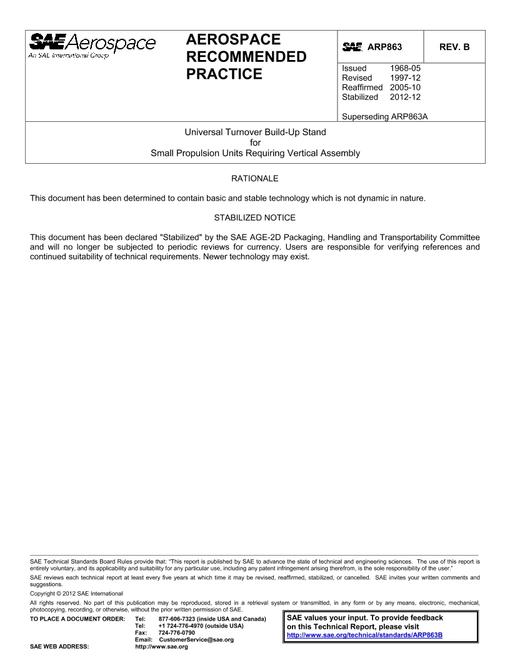

SAE ARP863B

Universal Turnover Build-Up Stand for Small Propulsion Units Requiring Vertical Assembly (Stabilized: Dec 2012)

SAE International , 12/05/2012

Publisher: SAE

File Format: PDF

$41.00$83.00

Description

Standard By:SAE International , 12/05/2012

Published:12/05/2012

File Size:1 file , 2.5 MB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This document has been declared "Stabilized" and will no longer be subjected to periodic reviews for currency. Users are responsible for verifying references and continued suitability or technical requirements. New technology may exist.

This recommended practice covers a stand that may be used for assembly, disassembly, and maintenance. The stand incorporates the following design criteria: complete interchangeability of any and all components, collapsible frame construction, envelope dimensions, (marked with an asterik on the attached drawings), attachment pad configuration, and gearbox and caster specifications.

The purpose of this ARP is to provide a recommended practice for the design of a build-up stand which will be adaptable to small propulsion units (requiring vertical assembly) and/or all propulsion unit components.
