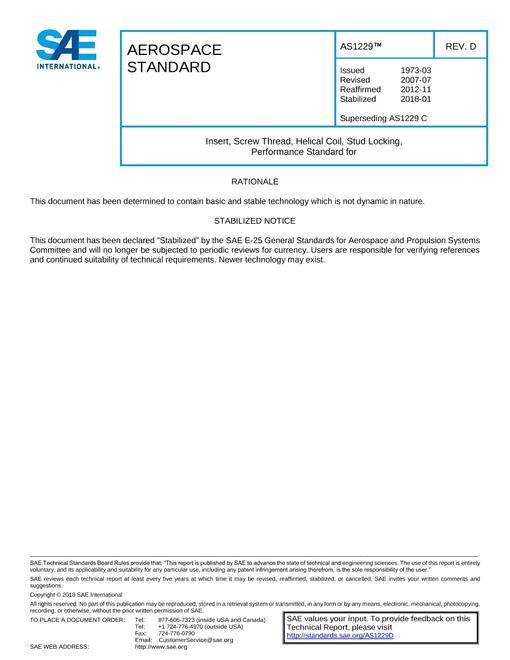

SAE AS1229D

Insert, Screw Thread, Helical Coil, Stud Locking, Performance Standard for (Stabilized: Jan 2018)

SAE International , 01/02/2018

Publisher: SAE

File Format: PDF

$34.00$69.00

Description

Standard By:SAE International , 01/02/2018

Published:01/02/2018

Pages:6

File Size:1 file , 1.9 MB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This SAE Aerospace Standard (AS) covers helical coil stud locking screw thread inserts made from formed wire in which the inner surface of the coil, after assembly provides threads of standard Unified 60 Degrees form as specified on the assembly drawing. This document also covers the performance requirements of the locking feature of the insert which will retain Unified ANSI B1.1 (UN Profile) or AS8879 (UNJ Profile) external threaded parts.
