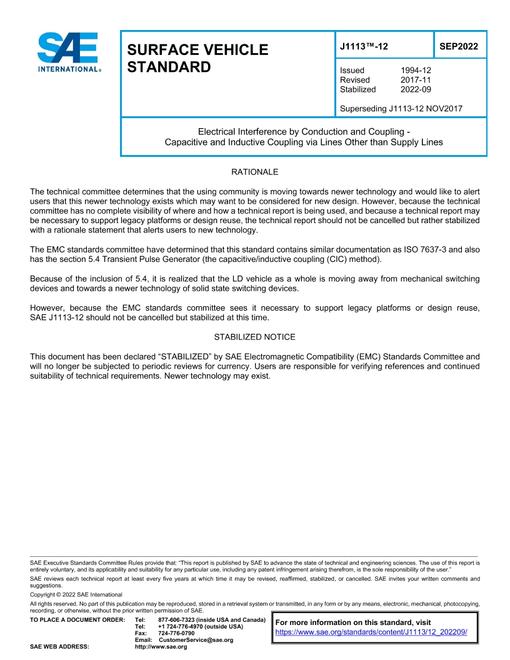

• SAE J1113/12_202209

SAE J1113/12_202209

Electrical Interference by Conduction and Coupling - Capacitive and Inductive Coupling via Lines Other than Supply Lines (Stabilized: Sep 2022)

SAE International , 09/30/2022

Publisher: SAE

File Format: PDF

$71.00$142.00


This SAE Standard establishes test methods for the evaluation of devices and equipment in vehicles against transient transmission by coupling via lines other than the power supply lines. The test methods demonstrates the immunity of the instrument, device, or equipment to coupled fast transient disturbances, such as those caused by switching of inductive loads, relay contact bouncing, etc. Four test methods are presented in SAE J1113-12:

• the capacitive coupling clamp (CCC) method
• the direct capacitive coupling (DCC) method
• the inductive coupling clamp (ICC) method
• the capacitive/inductive coupling (CIC) method

SAE J1113/12_202209 History

SAE J1113/12_202209

SAE J1113/12_202209

$71.00 $142.00

SAE J1113/12_201711

SAE J1113/12_201711

$63.00 $126.00

SAE J1113/12_200608

SAE J1113/12_200608

$51.00 $102.00
