• SAE J1113/4_202002

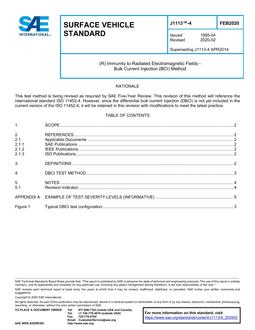

SAE J1113/4_202002

Immunity to Radiated Electromagnetic Fields - Bulk Current Injection (BCI) Method

SAE International , 02/24/2020

Publisher: SAE

File Format: PDF

$31.00$63.00


This SAE Standard defines a method for evaluating the immunity of automotive electrical/electronic devices to radiated electromagnetic fields coupled to the vehicle wiring harness. The method, called bulk current injection (BCI), uses a current probe to inject RF onto the wiring harness in the frequency range of 1 to 400 MHz. BCI is one of a number of test methods that can be used to simulate the electromagnetic field.

The test method refers to ISO 11452-4 (please refer to ISO 11452-4 for test procedures).

In addition to ISO 11452-4, this test method also includes a differential bulk current injection (DBCI) test. DBCI is described in Section 4 of this document.
