• SAE J1939/84_202306

SAE J1939/84_202306

OBD Communications Compliance Test Cases for Heavy-Duty Components and Vehicles

SAE International , 06/13/2023

Publisher: SAE

File Format: PDF

$84.00$168.00

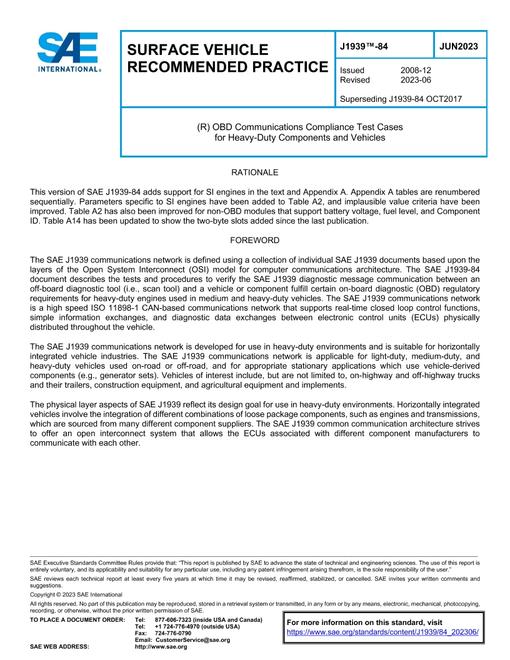

SAE J1939/84_202306 PDF

The purpose of this SAE Recommended Practice is to verify that vehicles and/or components are capable of communicating a required set of information, which is described by the diagnostic messages specified in SAE J1939-73, that is in accordance with off-board diagnostic tool interface requirements contained in the government regulations cited below.

This document describes the tests, methods, and results for verifying diagnostic communications from an off-board diagnostic tool (i.e., scan tool) to a vehicle and/or component. SAE members have generated this document to serve as a guide for testing vehicles for compliance with ARB and other requirements for emissions-related on-board diagnostic (OBD) functions for heavy-duty engines used in medium- and heavy-duty vehicles.

The development of HD OBD regulations by U.S. EPA and California’s Air Resources Board (ARB) require that diagnostic message services are exercised to evaluate diagnostic communication standardization requirements on production vehicles. The user should reference the summary provided by SAE J1939-73 Tables 1 and 2 for OBD compliance support, and the discussion in SAE J1939-73 Appendix H for additional implementation concepts.

SAE J1939/84_202306 History

SAE J1939/84_202306

SAE J1939/84_202306

$84.00 $168.00

SAE J1939/84_201710

SAE J1939/84_201710

$80.00 $161.00

SAE J1939/84_201601

SAE J1939/84_201601

$74.00 $148.00

SAE J1939/84_201601

SAE J1939/84_201601

$74.00 $148.00

SAE J1939/84_201502

SAE J1939/84_201502

$72.00 $145.00

SAE J1939/84_201206

SAE J1939/84_201206

$65.00 $130.00

SAE J 1939-84

SAE J 1939-84

$104.00 $209.25
