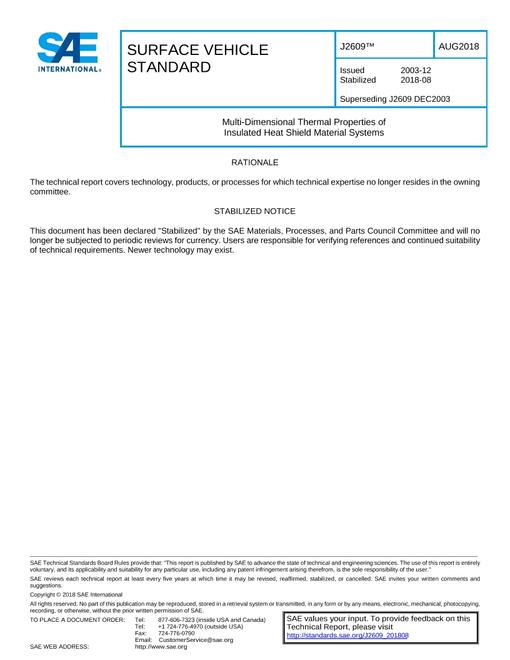

• SAE J2609_201808

SAE J2609_201808

Multi-Dimensional Thermal Properties of Insulated Heat Shield Material Systems (Stabilized: Aug 2018)

SAE International , 08/24/2018

Publisher: SAE

File Format: PDF

$68.00$137.00


This test method measures the system material properties of an insulated formed heat shield under invehicle conditions. While the material properties of the individual components can often be determined via existing test methods, the system properties of the entire composite is typically much harder to ascertain (especially for multi-layer shields). System material properties include thermal conductivity in the lateral or in-plane (x) direction, thermal conductivity through the thickness or perpendicular (y), surface emissivity on the top and bottom sides of the shield and specific heat of the shield material.
