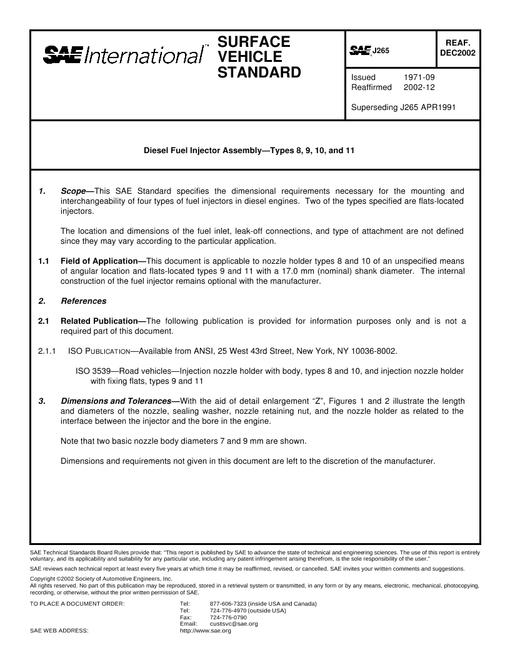

• SAE J265_200212

SAE J265_200212

Diesel Fuel Injector Assembly--Types 8, 9, 10, and 11

SAE International , 12/13/2002

Publisher: SAE

File Format: PDF

$25.00$50.00


This SAE Standard specifies the dimensional requirements necessary for the mounting and interchangeability of four types of fuel injectors in diesel engines. Two of the types specified are flats-located injectors. The location and dimensions of the fuel inlet, leak-off connections, and type of attachment are not defined since they may vary according to the particular application. Field of Application This document is applicable to nozzle holder types 8 and 10 of an unspecified means of angular location and flats-located types 9 and 11 with a 17.0 mm (nominal) shank diameter. The internal construction of the fuel injector remains optional with the manufacturer.

SAE J265_200212 History

SAE J265_201511

SAE J265_201511

$28.00 $57.00

SAE J265_200212

SAE J265_200212

$25.00 $50.00
