SAE J3099_202405

Driver Seating Accommodation and Steering Wheel Location Models

SAE International , 05/24/2024

Publisher: SAE

File Format: PDF

$54.00$108.00

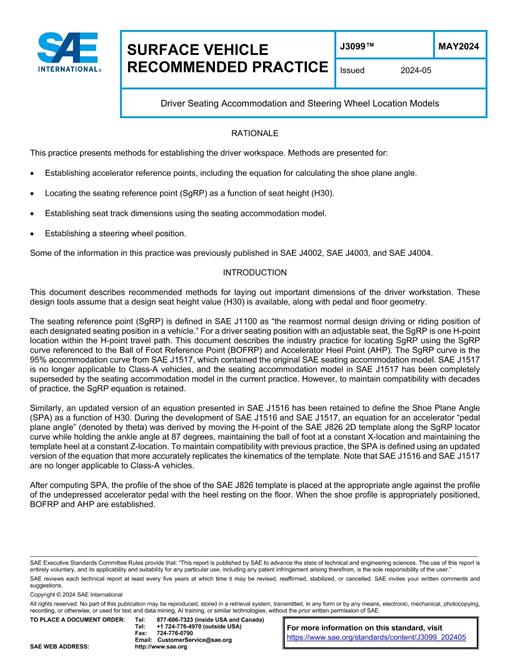

SAE J3099_202405 PDF

This practice presents methods for establishing the driver workspace. Methods are presented for:

  • Establishing accelerator reference points, including the equation for calculating the shoe plane angle.
  • Locating the SgRP as a function of seat height (H30).
  • Establishing seat track dimensions using the seating accommodation model.
  • Establishing a steering wheel position.

Application of this document is limited to Class-A Vehicles (Passenger Cars, Multipurpose Passenger Vehicles, and Light Trucks) as defined in SAE J1100.
