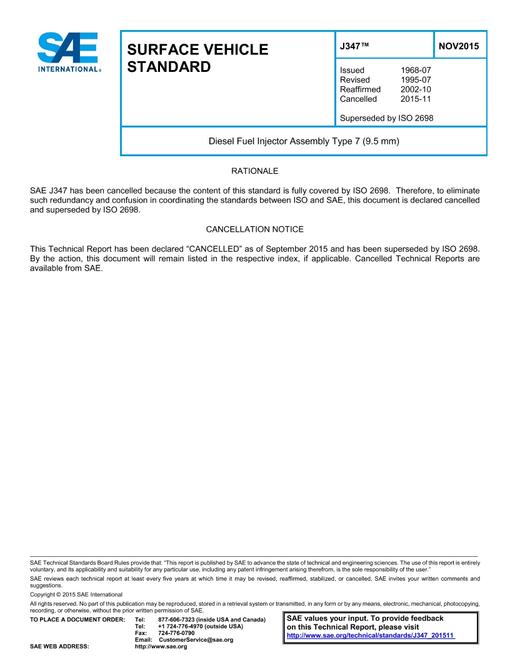

SAE J347_201511

Diesel Fuel Injector Assembly Type 7 (9.5 mm)

SAE International , 11/24/2015

Publisher: SAE

File Format: PDF

$28.00$57.00

Description

Standard By:SAE International , 11/24/2015

Published:11/24/2015

File Size:1 file , 1 MB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This SAE Standard specifies the dimensional requirements necessary for the mounting and interchangeability of a type of fuel injector used in diesel engines. Field of Application This document is applicable to a clamp-mounted fuel injector of an integral nozzle and nozzle holder design with a 9.5 mm (nominal) holder shank diameter and deals only with the interface between the injector and the engine. The internal construction of the fuel injector remains optional with the manufacturer.
